— 7 —

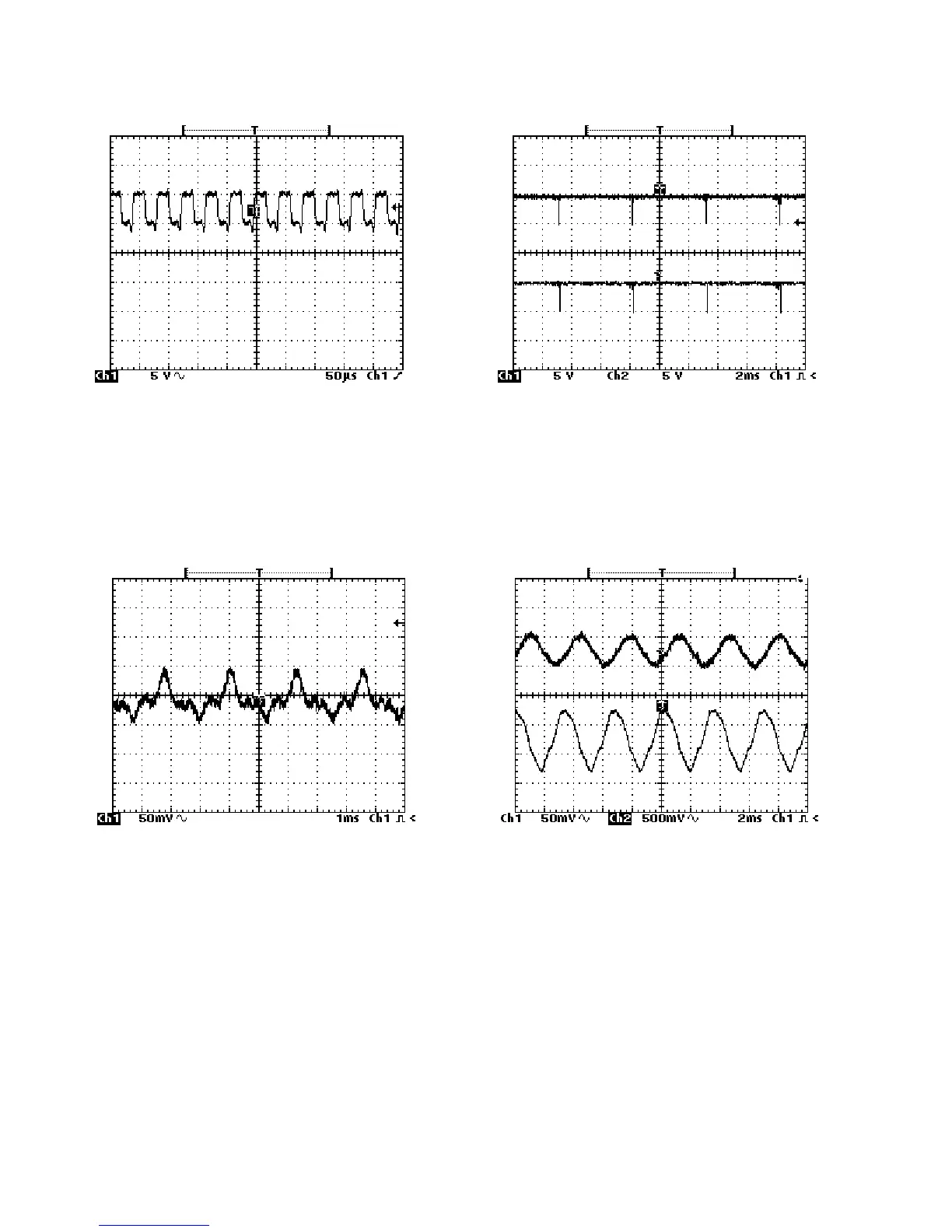

MAJOR WAVEFORMS
1
Clock pulse
MSM6755B-10 pin 32
2
Key scan signal KO6
MSM6755B-10 pin 72
3
Key scan signal KO7
MSM6755B-10 pin 73
1
2
3
4
Sound waveform
MSM6755B-10 pin 44
5
Mic. amp. input
Terminal PM-BL
6
Mic. amp. output
MSM6755B-10 pin 51
4
5
6
Tone:
No. 22
Key:
A4
6
8
Table of Contents
Table of Contents
2
Specifications
2
Block Diagram
3
Circuit Description
4
Major Waveforms
7
Printed Circuit Board
8
Schematic Diagrams
9
Exploded View
11
Parts List
12
Specifications
13
