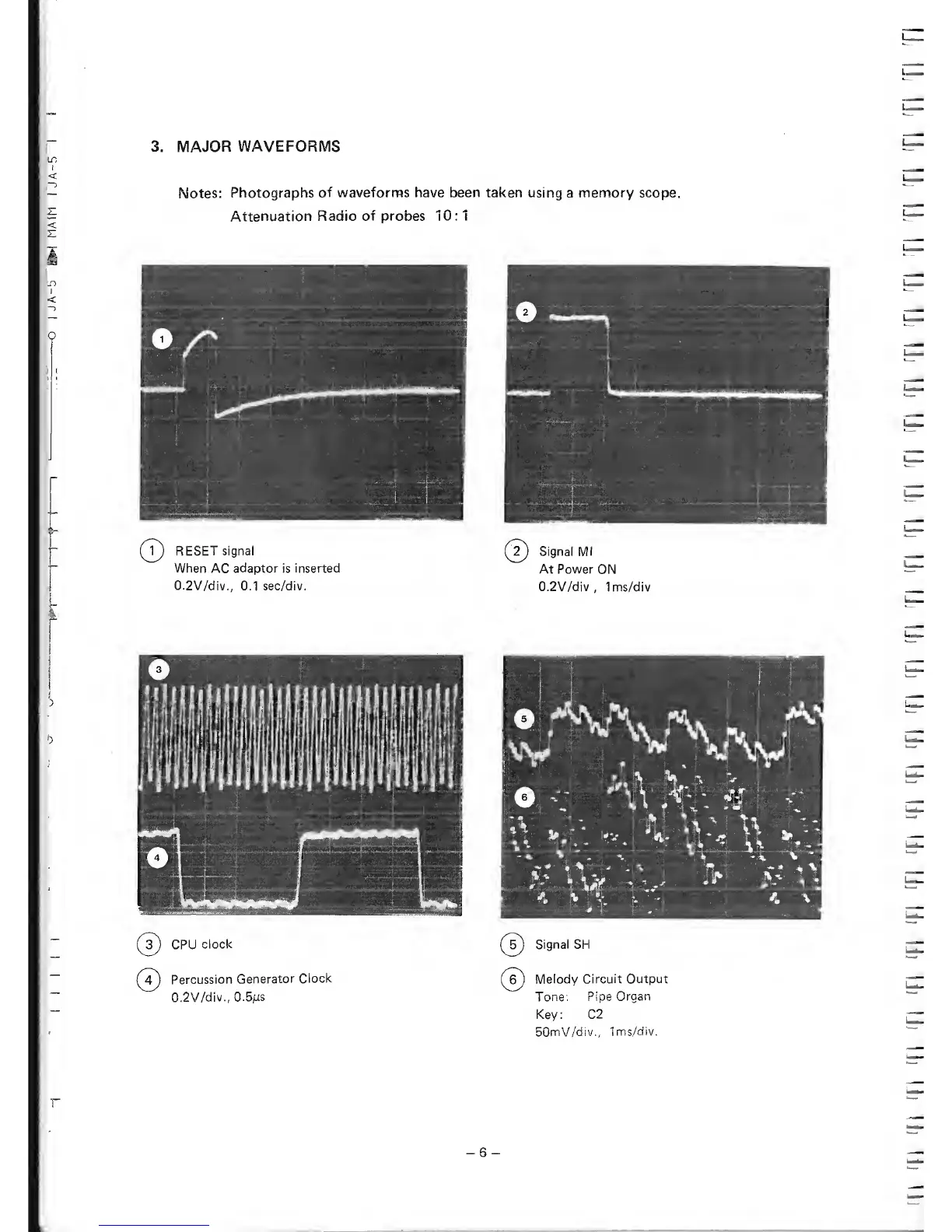

3.
MAJOR
WAVEFORMS
Notes:
Photographs
of
waveforms
have
been
taken
using
a
memory
scope.
Attenuation
Radio
of
probes
10:1
(?)
RESET
signal
When
AC
adaptor
is
inserted
0.2V/div.,
0.1
sec/div.
(?)
Signal
Ml
At
Power
ON
0.2V/div
,
Ims/div
(
3
)
CPU
clock
Percussion
Generator
Clock
0.2V/div.,
0.5ms
©
©
Signal
SH
Melody
Circuit
Output
Tone:
Pipe
Organ
Key:
C2
50mV/div.,
Ims/div.
-6-
