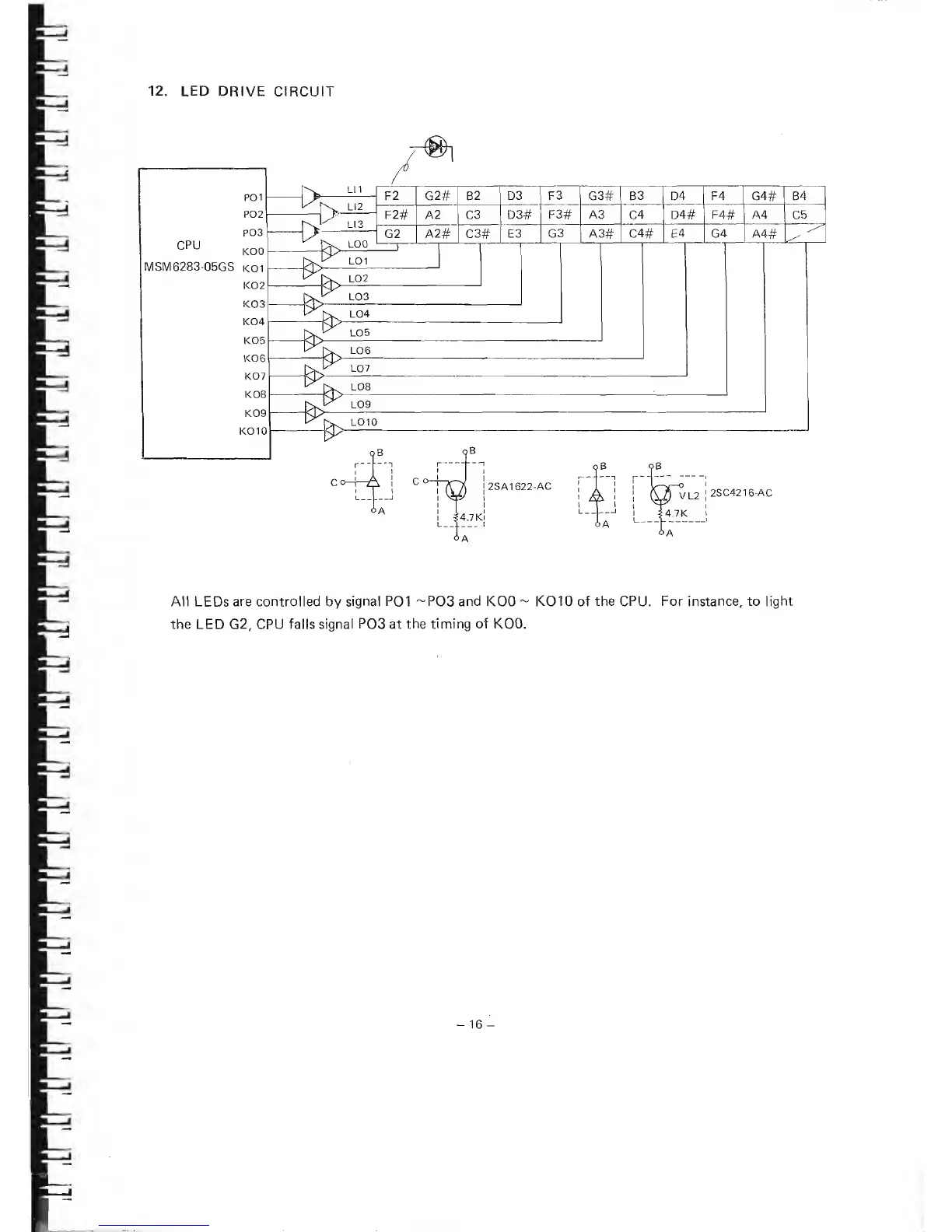

12.
LED
DRIVE
CIRCUIT
All
LEDs
are
controlled
by
signal
POI
~P03
and
KOO
~
K010
of
the
CPU.
For
instance,
to
light
the
LED
G2,
CPU
falls
signal
P03
at
the
timing
of
KOO.
