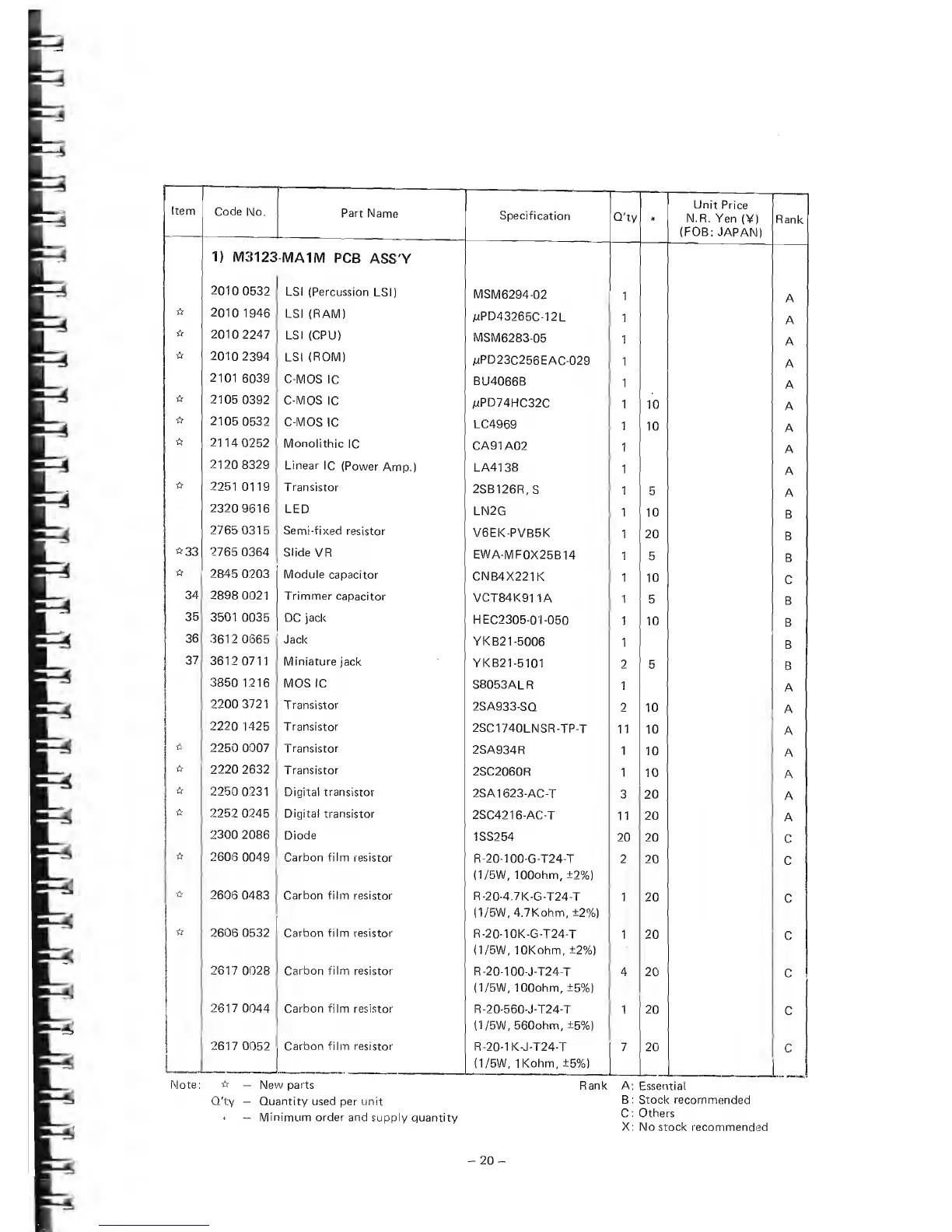

Casio SK 8A User Manual

Item
Code No.
Part Name
Specification
Q'ty
*
Unit Price
N.R. Yen (¥)
(FOB: JAPAN)
Rank
1) M3123-MA1M PCB ASS'Y
2010 0532
LSI (Percussion LSI)
MSM6294-02
1
A
☆
20101946
LSI (RAM)
/tPD43265C-12L
1
A
☆
2010 2247
LSI (CPU)
MSM6283-05
1
A
*
2010 2394
LSI (ROM)
pPD23C256E AC-029
1
A
2101 6039
C-MOS 1C
BU4066B
1
A
☆
2105 0392
C-MOS 1C
/JPD74HC32C
1
10
A
☆
2105 0532
CMOS 1C
LC4969
1
10
A
☆
2114 0252
Monolithic 1C
CA91A02
1
A
2120 8329
Linear 1C (Power Amp.)
LA4138
1
A
☆
2251 0119
Transistor
2SB126R,S
1
5
A
2320 9616
LED
LN2G
1
10
B
2765 0315
Semi-fixed resistor
V6EK-PVB5K
1 20
B
*33
2765 0364
Slide VR
EWA-MF0X25B14
1
5
B
☆
2845 0203
Module capacitor
CNB4X221 K
1 10
C
34
2898 0021
Trimmer capacitor
VCT84K911A
1
5
B
35
3501 0035
DC jack
HEC2305-01-050
1 10
B
36
3612 0665 Jack
YKB21 -5006
1
B
37
3612 0711
Miniature jack
YKB21-5101
2
5
B
3850 1216
MOS 1C
S8053ALR
1
A
2200 3721
Transistor
2SA933-SQ
2 10
A
2220 1425 Transistor
2SC1740LNSR-TP-T
11 10
A
☆
2250 0007 T ransistor
2SA934R
1
10
A
*
2220 2632
T ransistor
2SC2060R
1
10
A
*
2250 0231
Digital transistor
2SA1623-AC-T
3 20
A
•£?
2252 0245
Digital transistor
2SC4216-AC-T
11
20
A
2300 2086
Diode
1SS254
20
20
C
☆
2606 0049
Carbon film resistor
R-20-100-G-T24-T
(1/5W, lOOohm, ±2%)
2
20
C
☆
2606 0483 Carbon film resistor
R-20-4.7 K-G-T24-T
(1/5W, 4.7Kohm, ±2%)
1
20
C
☆
2606 0532
Carbon film resistor
R-20-10K-G-T24-T
(1/5W, lOKohm, ±2%)
1 20
C
2617 0028
Carbon film resistor
R-20-100-J-T24-T
(1/5W, lOOohm, ±5%)
4
20
C
2617 0044 Carbon film resistor
R-20-560-J-T24-T
(1/5W, 560ohm, ±5%)
1 20
C
2617 0052 Carbon film resistor
R-20-1 K-J-T24-T
(1/5W, IKohm, ±5%)
7 20
C
Note: * — New parts
Q'ty — Quantity used per unit
* — Minimum order and supply quantity
Rank A: Essential
B : Stock recommended
C: Others
X: No stock recommended
- 20 -
