— 13 —

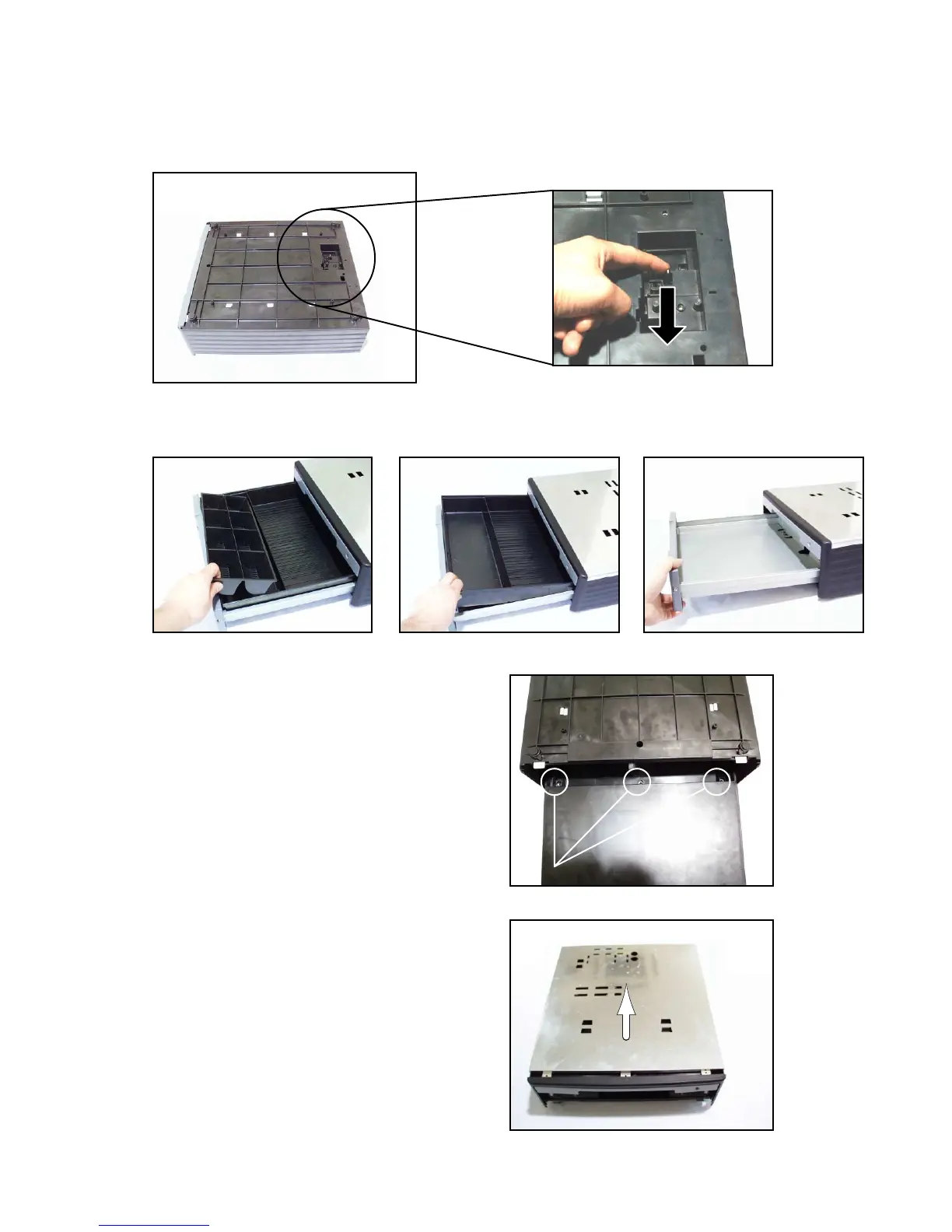

DRAWER (M type DRAWER)
1. Remove the lower tray.
1 Push the lever in the direction of the arrow and pull out the lower tray.
2 Remove the COIN CASE.
3 Remove the BILL CASE.
4 Remove the tray.
2. Remove the upper iron plate.
1 Pull out the upper tray.
2 Remove three screws.
3 Remove the top cover by sliding it in the direction of the arrow.
2 3 4
Screws
