Casio TE-4000 - IPL Transfer via PC Connection

Loading the IPL via PC

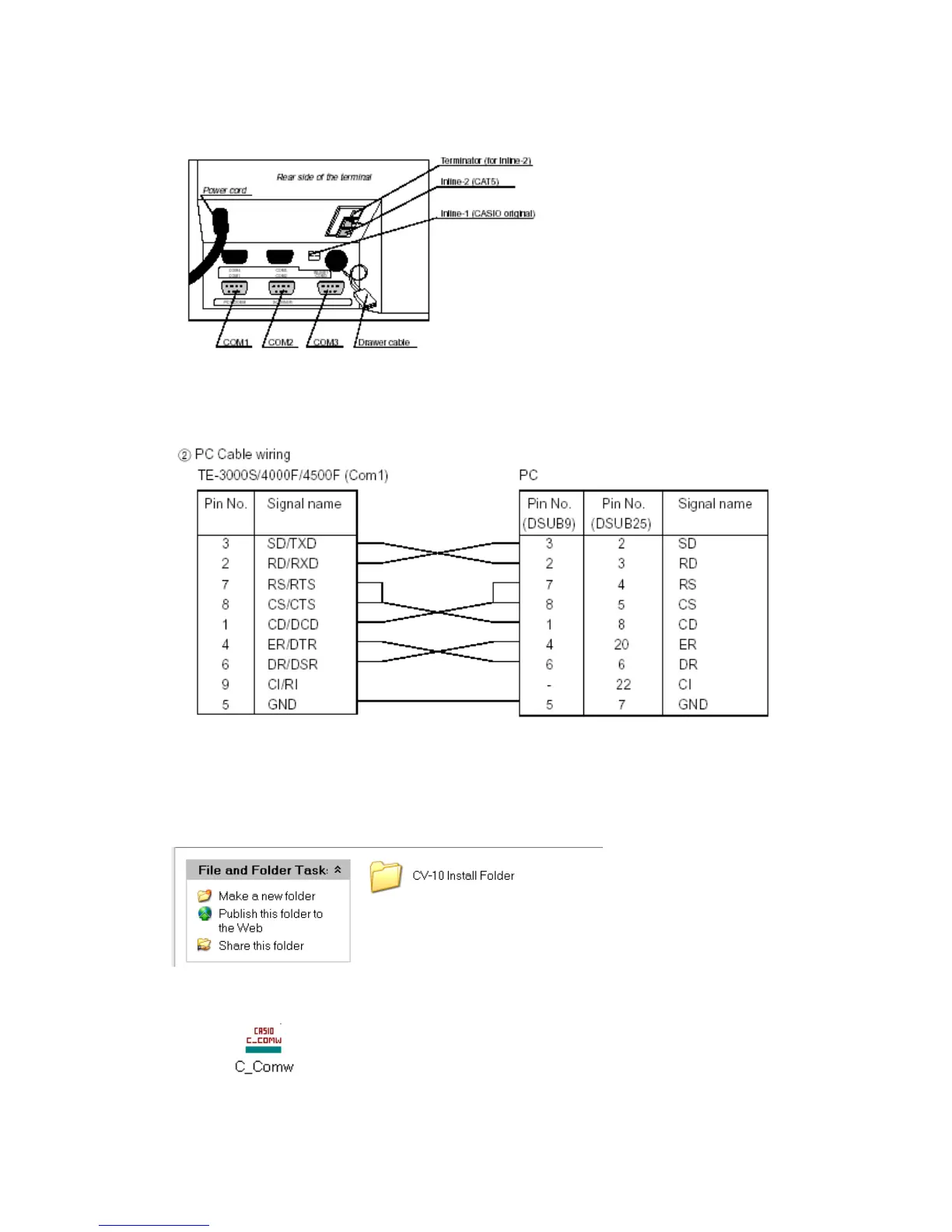

Plug your PRL-CB2 RS-232 standard lap link cable in to Com 1
Wiring diagram
Load CV-10 to your PC
This file can be found on your Dealer Companion CD
Go in to the CV-10 folder and double click on C_comw Icon
10
