6-2. REMOTE DISPLAY
6-3. HANDY SCNNER
6-4. REMOTE PRINTER / SLIP PRINTER

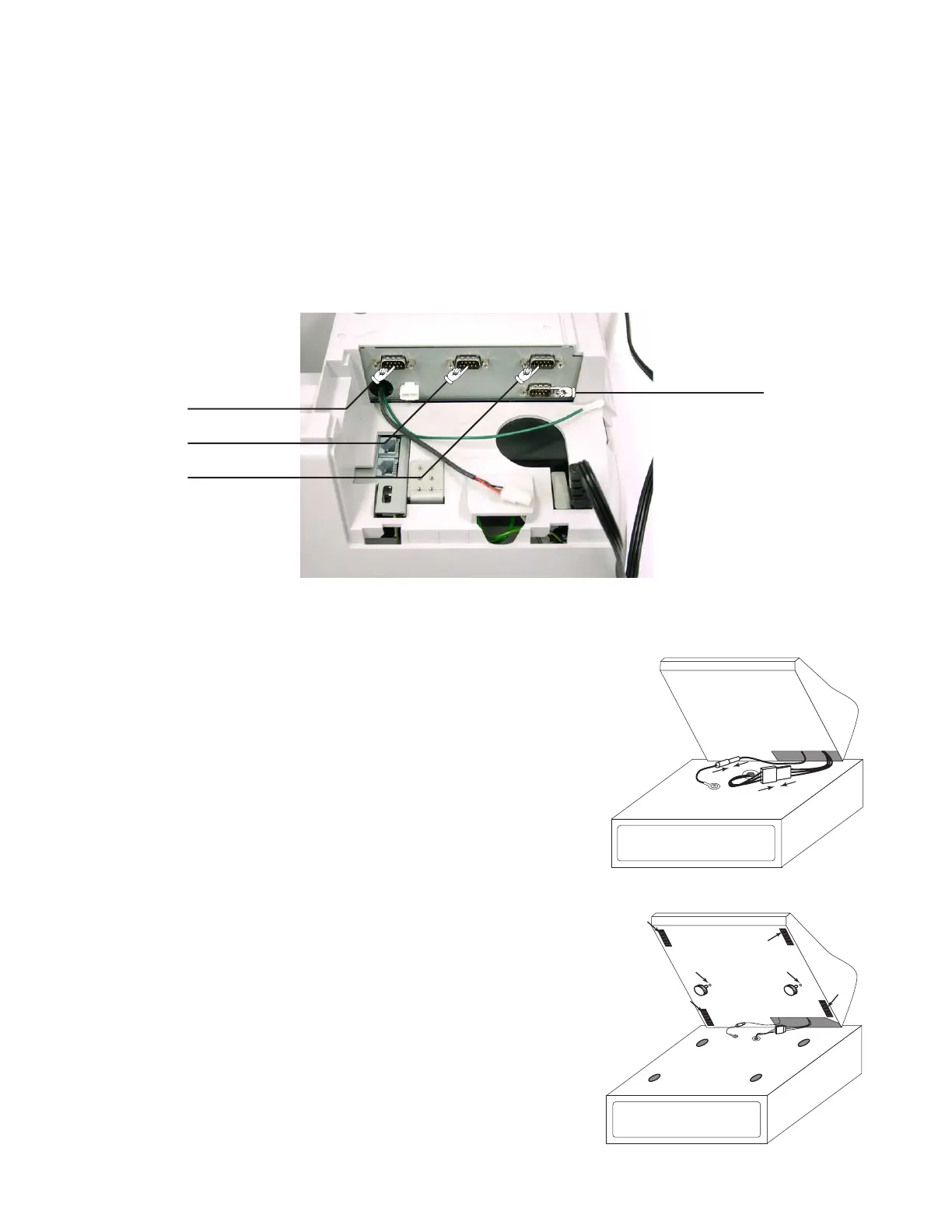

Connect the following peripherals to the COM ports respectively.
REMOTE DISPLAY : COM3
HANDY SCANNER : COM2
REMOTE PRINTER/ : COM2, 3, 4
SLIP PRINTER
COM3 Port
COM2 Port
COM1 Port
COM4 Port
2
2
2
2
11
6-5. DRAWER
6-5-1. CONNECTOR THE DRAWER
1. Connector drawer connector (three color lead on drawer)
to the cash register.
2. Connector frame drawer connector (green lead on drawer)
to the cash register.
6-5-2. CONNECTOR THE DRAWER
1. Screw in 2 fixing screws bottom side of the register.
2. Stick rubber plate on the eash corner of the bottm side of
the register.
3. Mount the cash register on the top of the drawer, ensuring
that the feet on the bottom of the cash register go into the
holes on the drawer
To Next Page
