— 13
—
■

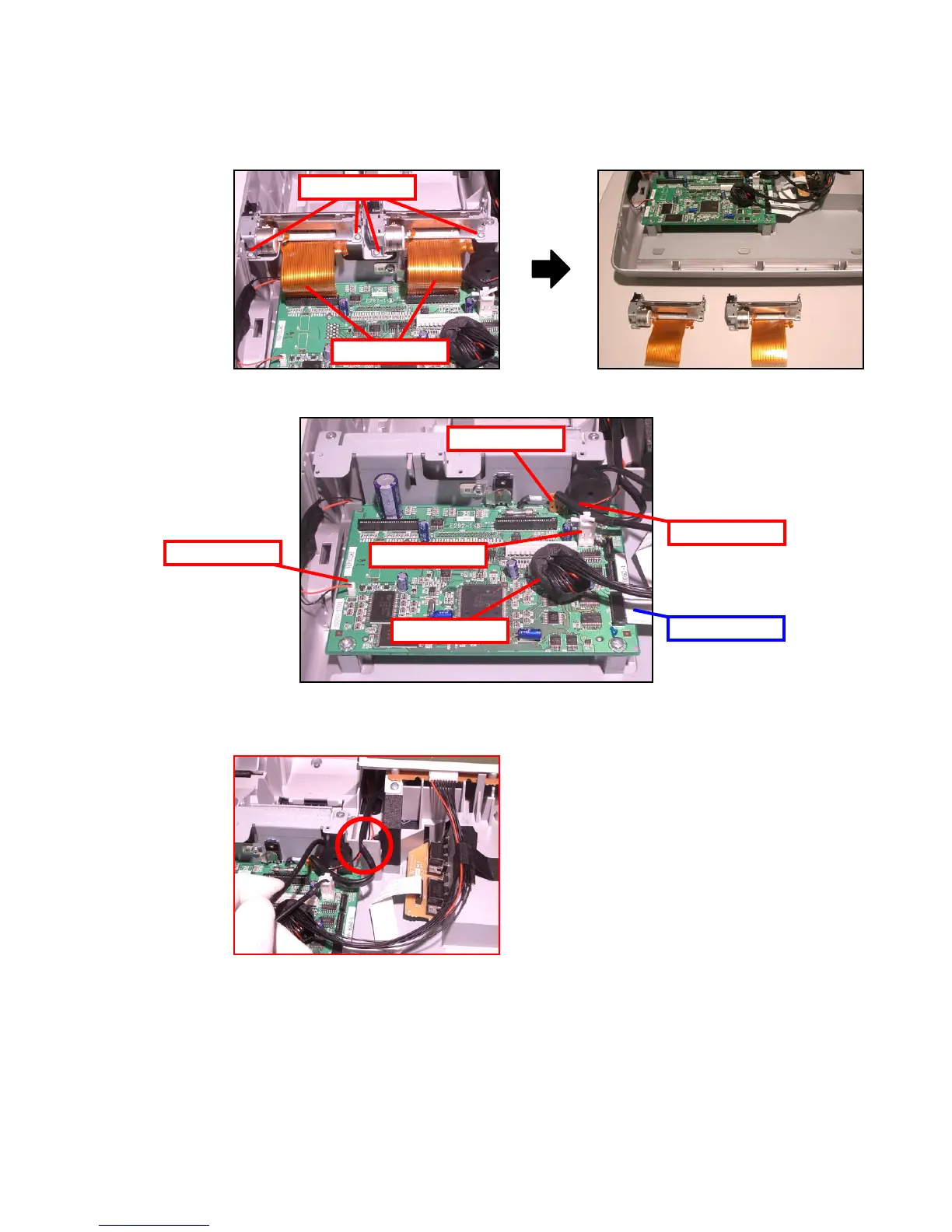

Lower case block disassembly (Printer unit, MAIN PCB, LCD unit, E292-COM PCB)
1. Remove 4 screws.
2. Remove 2 FPCs and then 2 Printer units.
Screws
FPCs
3. Remove the FPC and 5 connectors.
Power
LCD
Battery
Drawer
Motor
Assembling Point:
Run the power cable and the motor wires through the groove on the case.
COM Port
14
16
