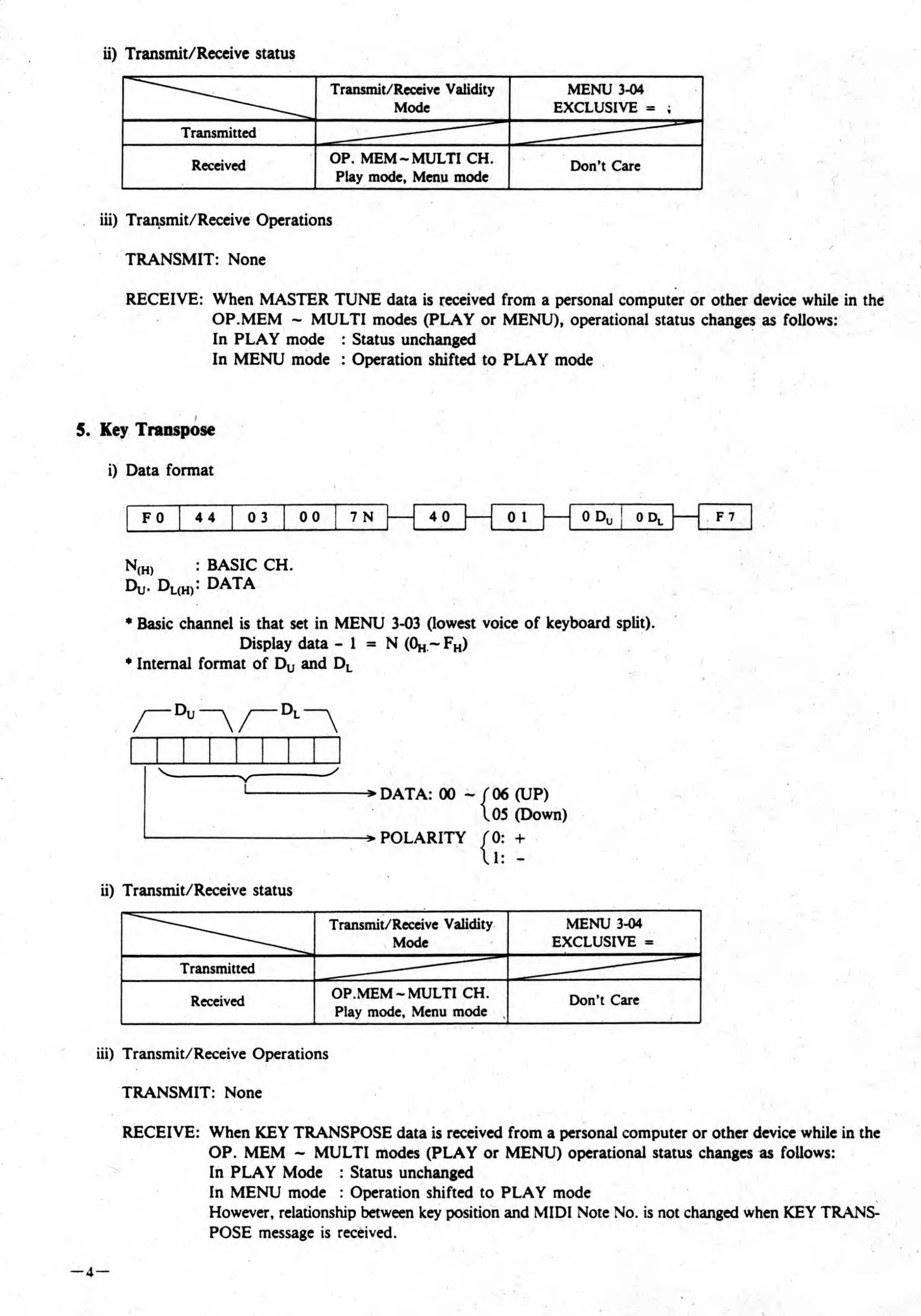

ii) Transmit/Receive status
Transmitted
Transmit/Receive Validity
Mode
MENU 3-04
EXCLUSIVE = ;
Received
OP. MEM-MULTI CH.
Play mode, Menu mode
Don’t Care
iii) Transmit/Receive Operations
TRANSMIT: None
RECEIVE: When MASTER TUNE data is received from a personal computer or other device while in the
OP.MEM - MULTI modes (PLAY or MENU), operational status changes as follows:
In PLAY mode : Status unchanged
In MENU mode : Operation shifted to PLAY mode
5. Key Transpose
i) D ata format
F0
4 4
0 3
00 !
7 N
mol
0 1
od l
. F 7
N (H ) : BASIC CH.
Du. D L(H) • DATA
* Basic channel is that set in MENU 3-03 (lowest voice of keyboard split).
Display data - 1 = N (Oh - F H )
* Internal format of Dy and D L
DATA: 00 - (06 (UP)
\05 (Down)
POLARITY |0: +
ll: -
ii) T ransmit/Receive status
Transmit/Receive Validity
Mode
MENU 3-04
EXCLUSIVE =
Transmitted
____—-' "
---" JU ’
Received
OP.MEM-MULTI CH.
Play mode. Menu mode
Don’t Care
iii) T ransmit/Receive Operations
TRANSMIT: None
RECEIVE: When KEY TRANSPOSE data is received from a personal computer or other device while in the
OP. MEM — MULTI modes (PLAY or MENU) operational status changes as follows:
In PLAY Mode : Status unchanged
In MENU mode : Operation shifted to PLAY mode
However, relationship between key position and MIDI Note No. is not changed when KEY TRANS¬
POSE message is received.
