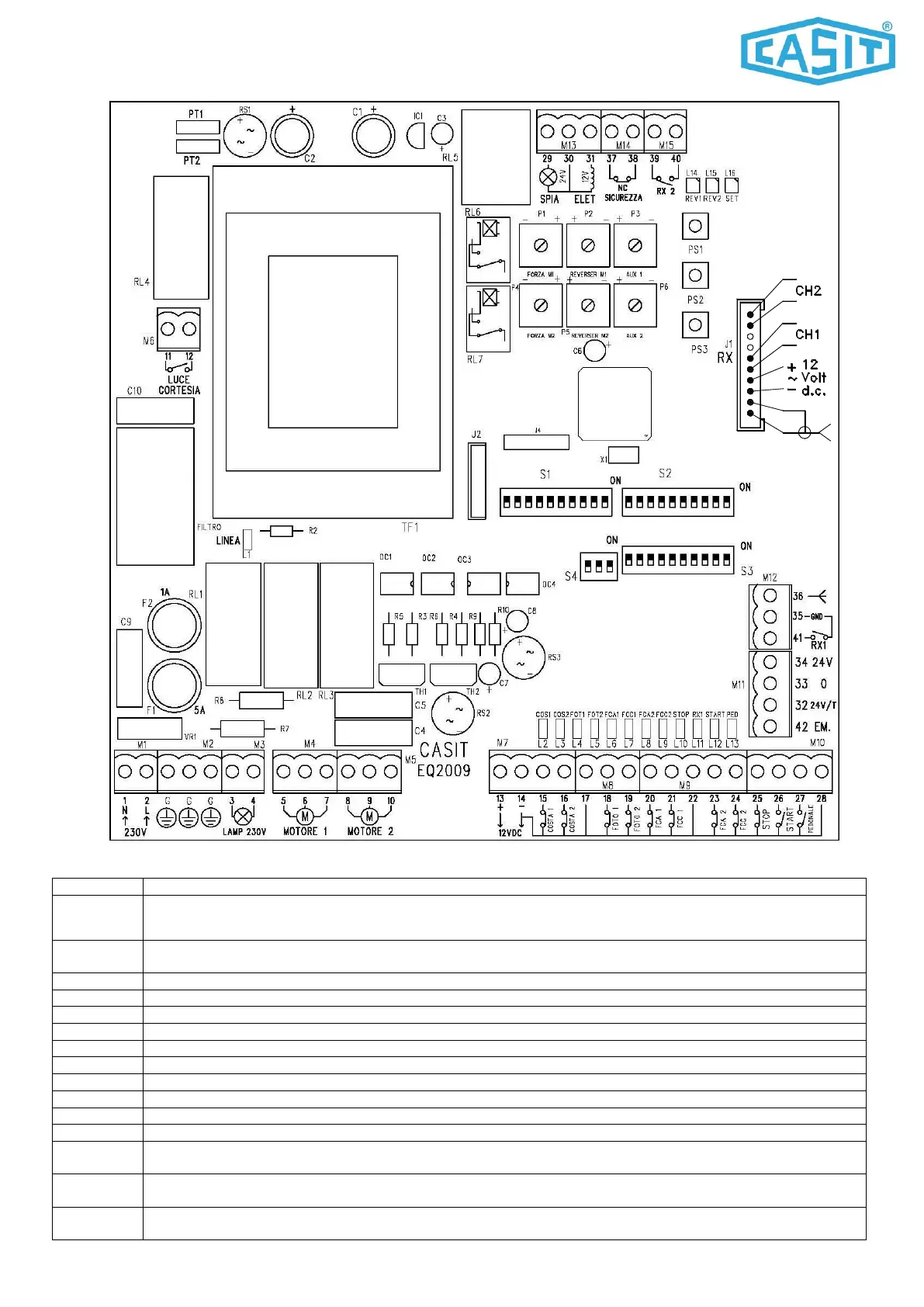

1) DIODE LED
Line of feeding; turned on to control panel fed
SAFETY EDGE 1; it switch on to the intervention of the safety edge 1.
The flashing led L2 points out the condition of triac TH1 (pilot motor 1) in damage.
SAFETY EDGE 2; it switch on to the intervention of the safety edge 2.
The flashing led L3 points out the condition of triac TH2 (pilot motor 2) in damage.
PHOTOCELL 1; it switch on to the intervention of the safety edge 1.
PHOTOCELL 2; it switch on to the intervention of the safety edge 2.
OPENING LIMIT SWITCH 1; it switch on to the intervention of the limit switch open of the motor 1.
CLOSING LIMIT SWITCH 1; it switch on to the intervention of the limit switch close of the motor 1;
OPENING LIMIT SWITCH 2; it switch on to the intervention of the limit switch open of the motor 2.
CLOSING LIMIT SWITCH 2; it switch on to the intervention of the limit switch close of the motor 2.
STOP; it switch on during the stop command.
RX1; it switch on during the impulse of the remote control.
START; it switch on during the start command.
PEDESTRIAN; it switch on during the pedestrian command.
REV 1; it switch on red to the intervention of the reverse on the motor 1 during the work and it visualizes the last
seconds of the stroke turning on itself green.
REV 2; it switch on red to the intervention of the reverse on the motor 2 during the work and it visualizes the last
seconds of the stroke turning on itself green.
SET; it marks the regular operation of the microprocessor of the control panel with some green continuous
lightning during the work.
