KEQS08
Technical Manual
3.3 JP1 function: “Death man” function
JP1
close
“Death man”
function
The command START open, the PARTIAL OPENING closes.
Motors stops immediatelly when the button will be released

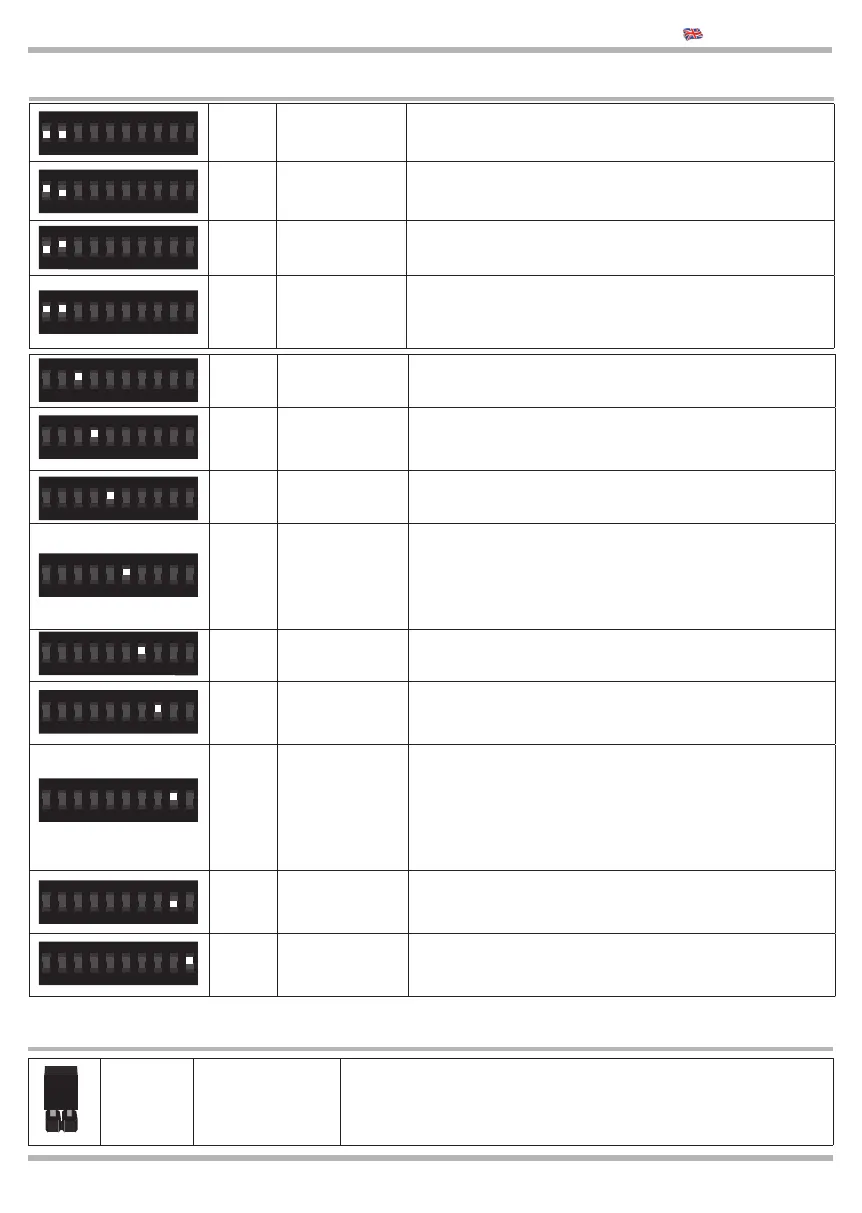

3.2 Use of the DIP A
1-OFF
2-OFF
Automatic 1
It inverts: open and close.
It closes automatically at the end of the pause time
1-ON
2-OFF
Condominium
In opening and pause time doesn’t accept commands.
it re-closes automatically at the end of the pause time.
1-OFF
2-ON
Semi automatic
By every command open-stop-close-stop-open etc.
It doesn’t re-close automatically
1-ON
2-ON
Automatic 2
By every command
open-stop-close-stop-open etc.
It recloses automatically at the end of the pause time.
3-ON
Reversing
Stroke
It allows the electrical lock to be released
4-ON
Courtesy
light
Terminals 3 and 4 are powered when the gate is opening
until 2 minutes after closing,useful incase the courtesy light
needs to be powered
5-ON Pre-lighting
ON: Pre-lighting 4 seconds
OFF: Pre-lighting deactivated
6 Photo 2
ON: In opening and closing it stops and reverses the motion
for 2s after 1 minute it closes again.
OFF: During opening and closing, it stops and reopens
with the obstacle removed (folding door function), re-closes
after pause time.
7
Motor starting
3 sec after LSC
ON: The motor runs for 3 seconds
OFF: The motor runs until LSC activation
8-ON Phototest
Activates the TEST in the inputs PHOTO, STOP and
SAFETY EDGE (COSTA) (when a TRANSCEIVER is
availalbe, see Chap no. 7)
9-ON
Logic of the
obstacle
detection: (A)
In closing, it reverses the direction of travel up to FCA,
pauses for 1 minute and then closes again. With a new
START command it closes after pause time. In opening
it reverses to close for 2 seconds, after one minute it
closes completely. If you give a command START the gate
reopens.
9-OFF
Logic of the
obstacle
detection: (B)
Works as limit switch
10-ON
Programming
time, advanced
system
It activate the advanced working time
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
ON CTS
2
1
43 6
5
87 10
9
