Castles Technology UPT100F - UPT1000 F Technical Notes; Serial Cable PIN Assignment

Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 15
4. Technical Notes

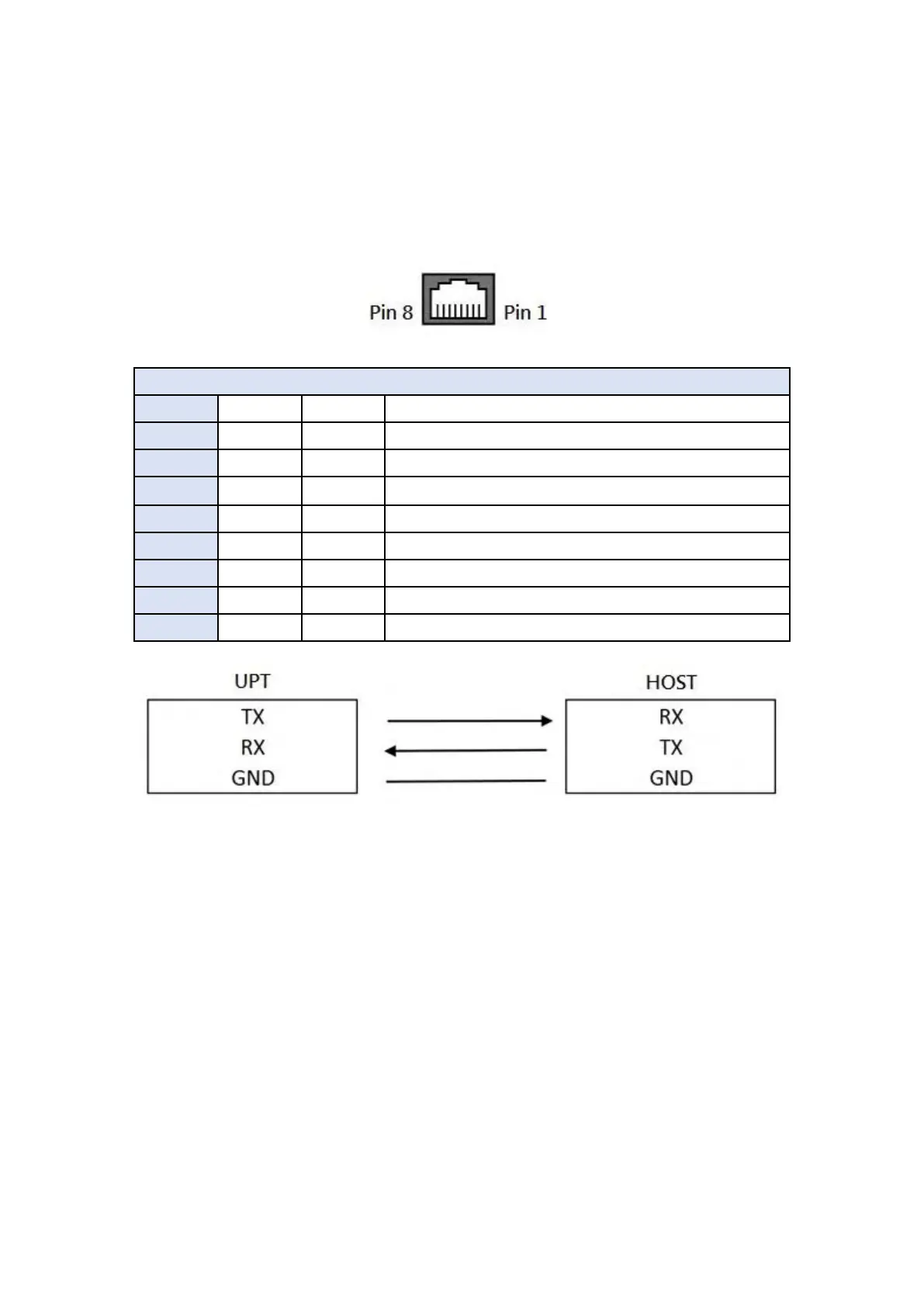

4.1. Serial Cable PIN Assignment
PIN Description
No
Name
Type
Description
1
NC
2
NC
3
NC
4
NC
5
GND
GND
6
NC
7
TX
Output
Please connect to Host RS232 Level RX
8
RX
Input
Please connect to Host RS232 Level TX
