20

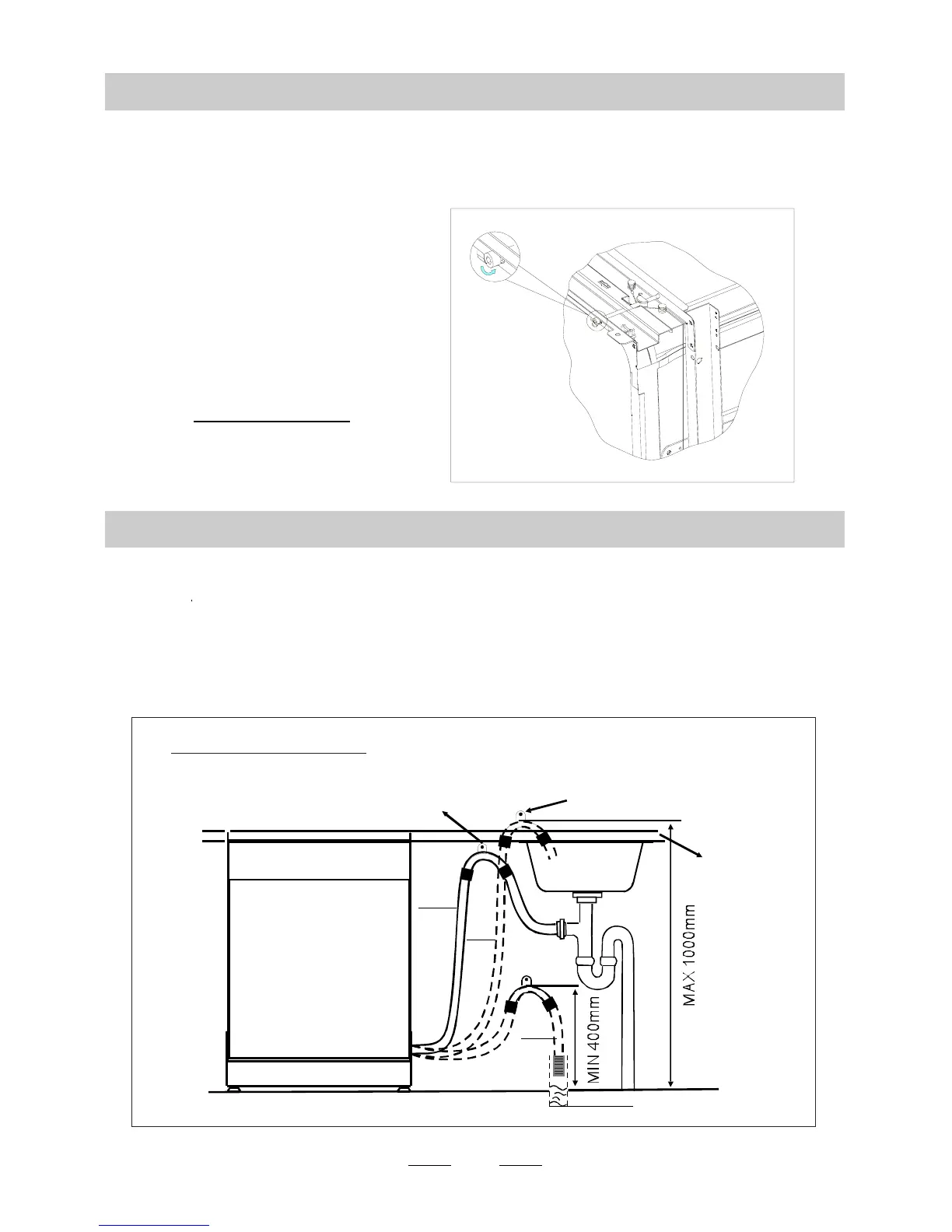

Tension adjustment
of the door spring
【Figure
5】
Tension adjustment of the door spring
●
Connection of drain hoses
●
The door springs are set at the factory to the proper tension for the outer door only.
When the decor door panel is installed, you will have to adjust the door spring tension.
Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5).
relax
Drain pipe connection
【Figure6】
Adjust the door spring
tension until the door
remains balanced in the
fully-opened position.
φ 40mm
A
B
C
Counter
Front
Drain pipe
Drain hose hook
Fix the drain hose hook to prevent movem ent
NOTE
Thetopofthehose
must be at a height
between
40 and 100c m.
Thefreeendofthe
hose m ust not be
immersed in water.
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
run into the sink, making sure to avoid bending or crimping it. Use the special
plastic support that comes with the appliance (figure 6).The top of the hosemustbeat
a height between 40 and 100cm. The free end of the hose must not be immersed in
water to avoid the back flow of it. ATTENTION: The special plastic hose support must be
solidly fastened to the wall to prevent the drain hose from moving and allowing water
to spill outside the drain.
