Cata GH614BS - Connecting to Gas Supply; Burner Regulation; Connecting to Electricity Supply

- 4 -

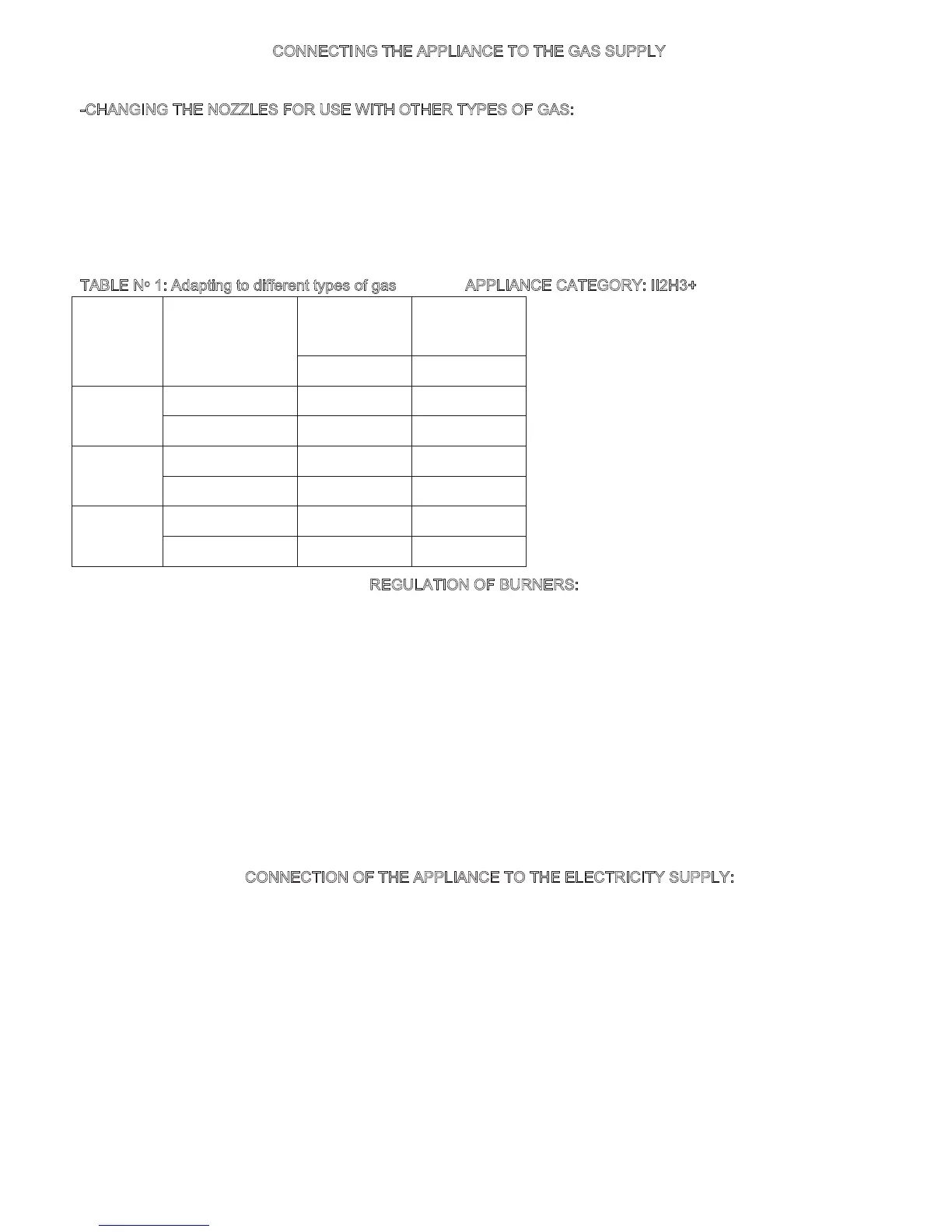

CONNECTING THE APPLIANCE TO THE GAS SUPPLY
Before carrying out any maintenance work, disconnect the appliance from the gas and electric supply.
-CHANGING THE NOZZLES FOR USE WITH OTHER TYPES OF GAS:
To change the nozzles of the burners use the following procedure:
Lift up the burners and unscrew the nozzle (Fig. 3) using an adjustable spanner, and change the nozzles with those designed for the new
gas supply according to the information given in TABLE N
o
1 shown below.
ATTENTION: After carrying out the changes described above, the technician must put the label corresponding to the new gas supply on
the appliance to take the place of the old label.
TABLE N
o
1: Adapting to different types of gas APPLIANCE CATEGORY: II2H3+
Burner Type of Gas Pressure Nozzle
diameter
mbar 1/100mm
Auxiliary Natural G20 20 72
Butane G30 28 50
Semi-
Rapid
Natural G20 20 97
Butane G30 28 68
Rapid Natural G20 20 110
Butane G30 28 78
REGULATION OF BURNERS:
1) Regulation of the “MINIMUM” position on the burners.
To regulate the minimum position on the burners, carry out the following procedure indicated below.
2) Turn on the burner and put the knob onto position MINIMUM (small flame).
3) Remove the knob (Fig. 4) of the tap which is set for standard pressure. The knob is found on the bar of the tap itself.
4) Beside the tap bar on the work top, use a small screwdriver that fits the screws (gold) found on the lower part of the tap (Fig. 4) and
t
urn the fixing screw to the right or left until the flame of the burner is regulated in the most suitable way to MINIMUM.
5) Make sure that the flame does not go out when changing the position quickly from MAXIMUM to the MINIMUM position.
ATTENTION: The regulation described above can be carried out only with burners using methane gas and city gas (where
available), while with burners using liquid gas the screw must be fully screwed in, in a clockwise direction.
CONNECTION OF THE APPLIANCE TO THE ELECTRICITY SUPPLY:
Connection to the electricity supply must be carried out according to the norms and indications of the laws in place.
Before carrying out the connection check that:
− The rating of the sockets are suitable for the maximum power of the appliance (see label on the lower part of the case).
− The socket or system is equipped with an efficient earth connection according to the norms and indications of the laws currently
in place. No responsibility can be held if these indications are not respected.
