CB2 ACACIA - Attach Back and Top Panels

6
acacia MINI BAR
Made in Vietnam - r08 Page 3 of 7

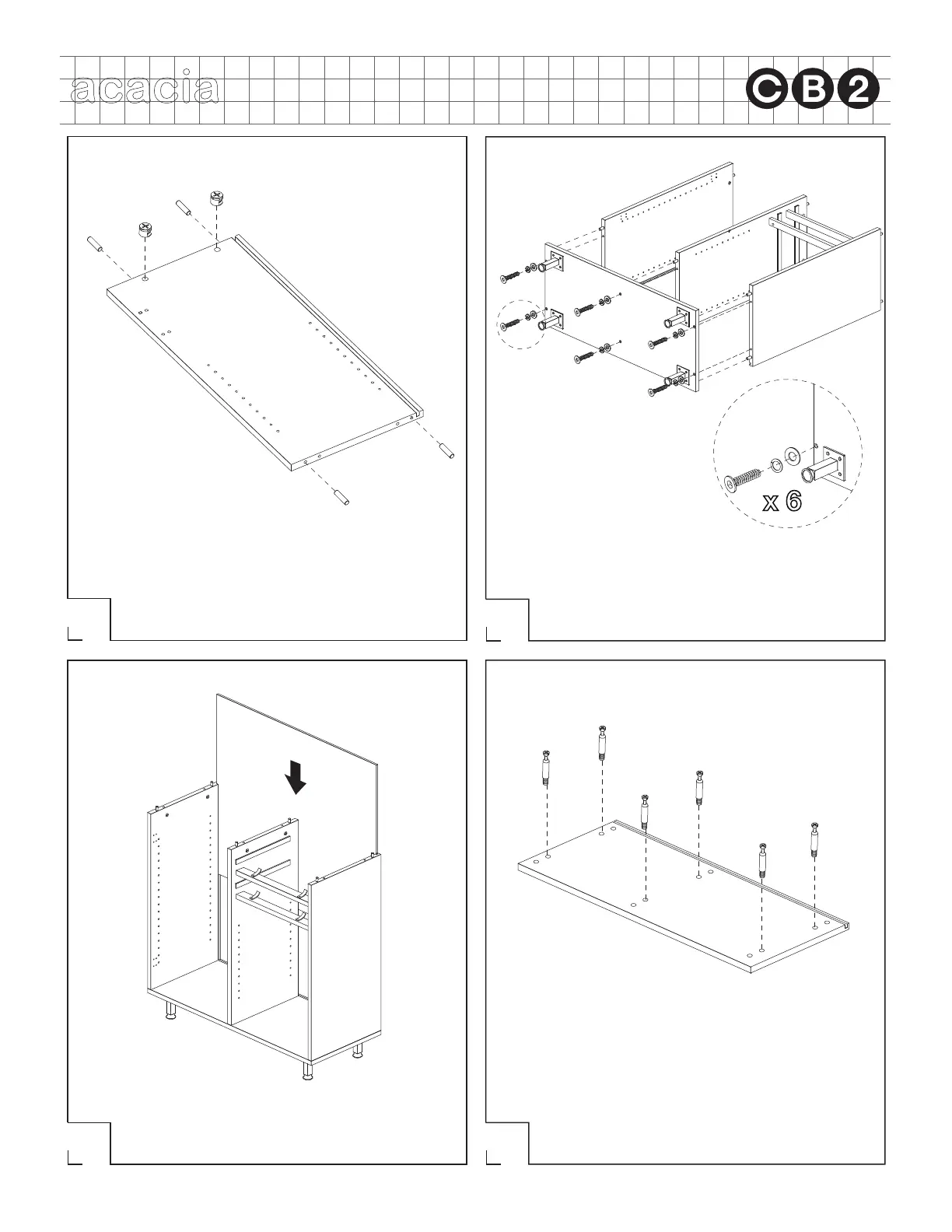

Fit dowels of partition and side panels into
corresponding holes of bottom panel assembly as
shown. Secure bottom panel with 6 large bolts, 6
spring washers and 6 flat washers as shown,
using an allen wrench.
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
5
7 8
With the assistance of another adult, carefully
position unit upright. Slide back panel into
grooves of assembled unit as shown.
Insert 6 cam screws into top panel as shown.
Insert 4 wood dowels and 2 cams into left side
panel as shown.
bottom panel
assembly
large bolt
spring washer
flat washer
back
panel
left side
panel
top
panel
