acacia MINI BAR
Made in Vietnam - r08 Page 4 of 7

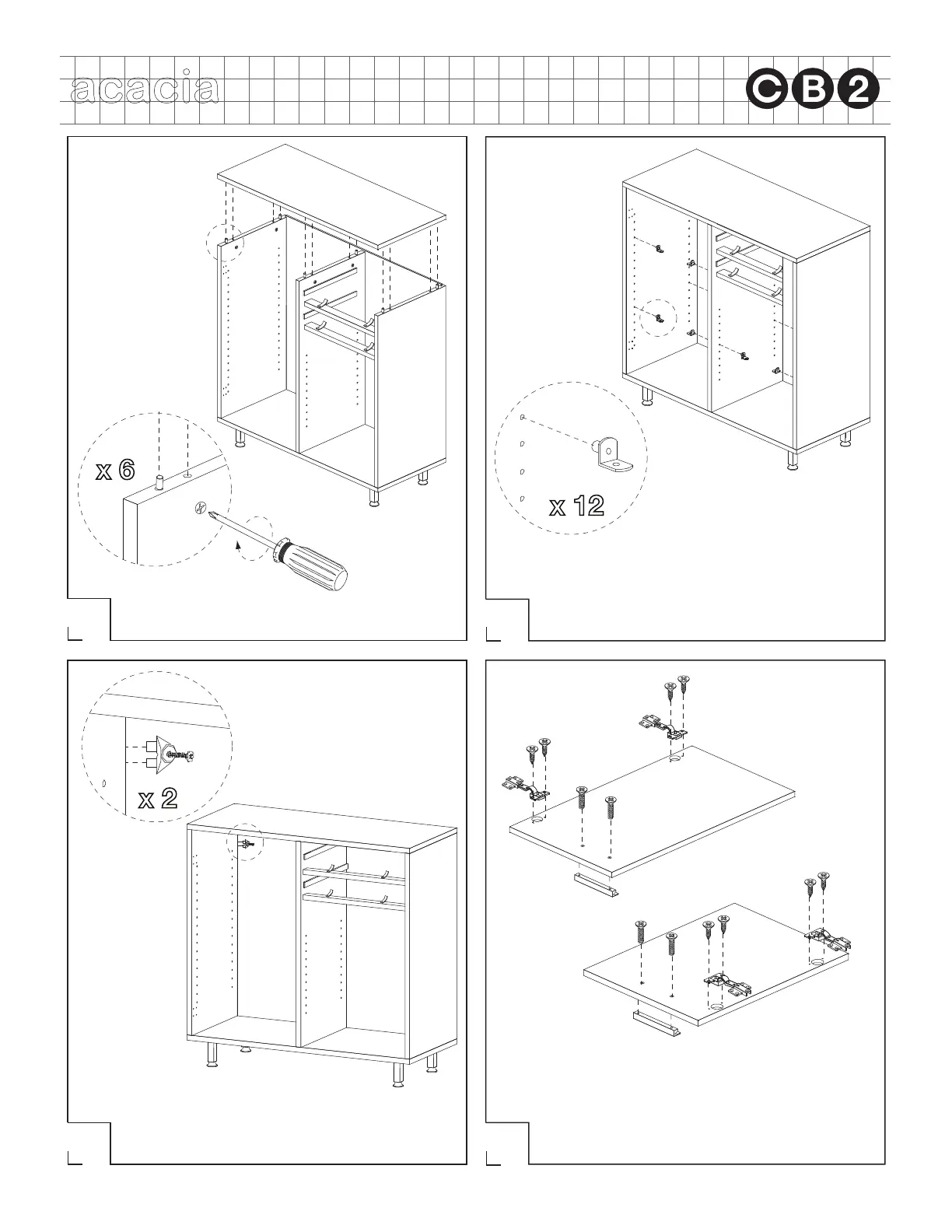

Insert tabs of anchor into corresponding corner of
assembled unit of assembled unit as shown.
Secure, but do not over tighten screw with a
screwdriver.
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
9
11 12
Insert 12 shelf supports at desired shelf heights.
10
anchor
shelf
support
A. Attach 2 hinges to small/large door fronts with
2 small screws per hinge as shown. Secure, but
do not over tighten, screws with a screwdriver.
B. Attach pull to each door front with 2 pull bolts,
using a screwdriver.
large door
front
small door
front
NOTE: Do not over
tighten the screws
pull
Fit dowels of assembled unit into corresponding
holes of top panel as shown. Secure all cams.
top
panel
A
B
To Next Page
