acacia MINI BAR
Made in Vietnam - r08 Page 5 of 7

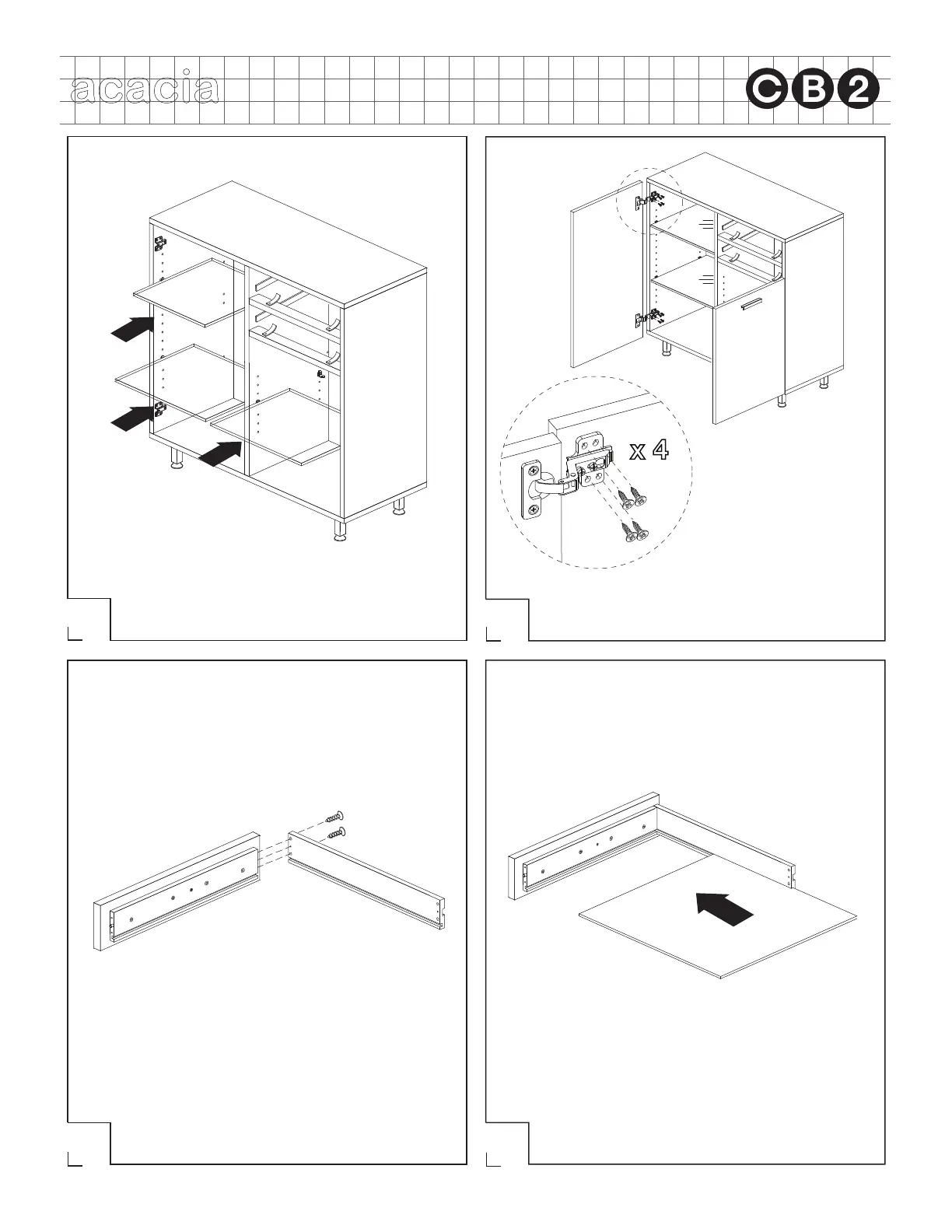

Slide drawer bottom into groove of drawer
assembly as shown.
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
13
15 16
14
drawer
bottom
Fit dowel of inner drawer front into corresponding
holes of drawer left side, and secure with 2 large
screws.
drawer
front
drawer left
side
Place 3 glass shelves into assembled unit as
shown. Make sure shelves are securely supported
by shelf supports.
glass
shelf
Refer to Hinge Adjustment
diagram for adjusting the
alignment of the door hinges.
Attach hinges of each door front to side panels as
shown. Secure each hinge with 4 small screws
and 1 hinge bolt, using a screwdriver.
door
front
To Next Page
