gloss TALL DRESSER
Made in Vietnam - r05 Page 3 of 4
5
6
7
8

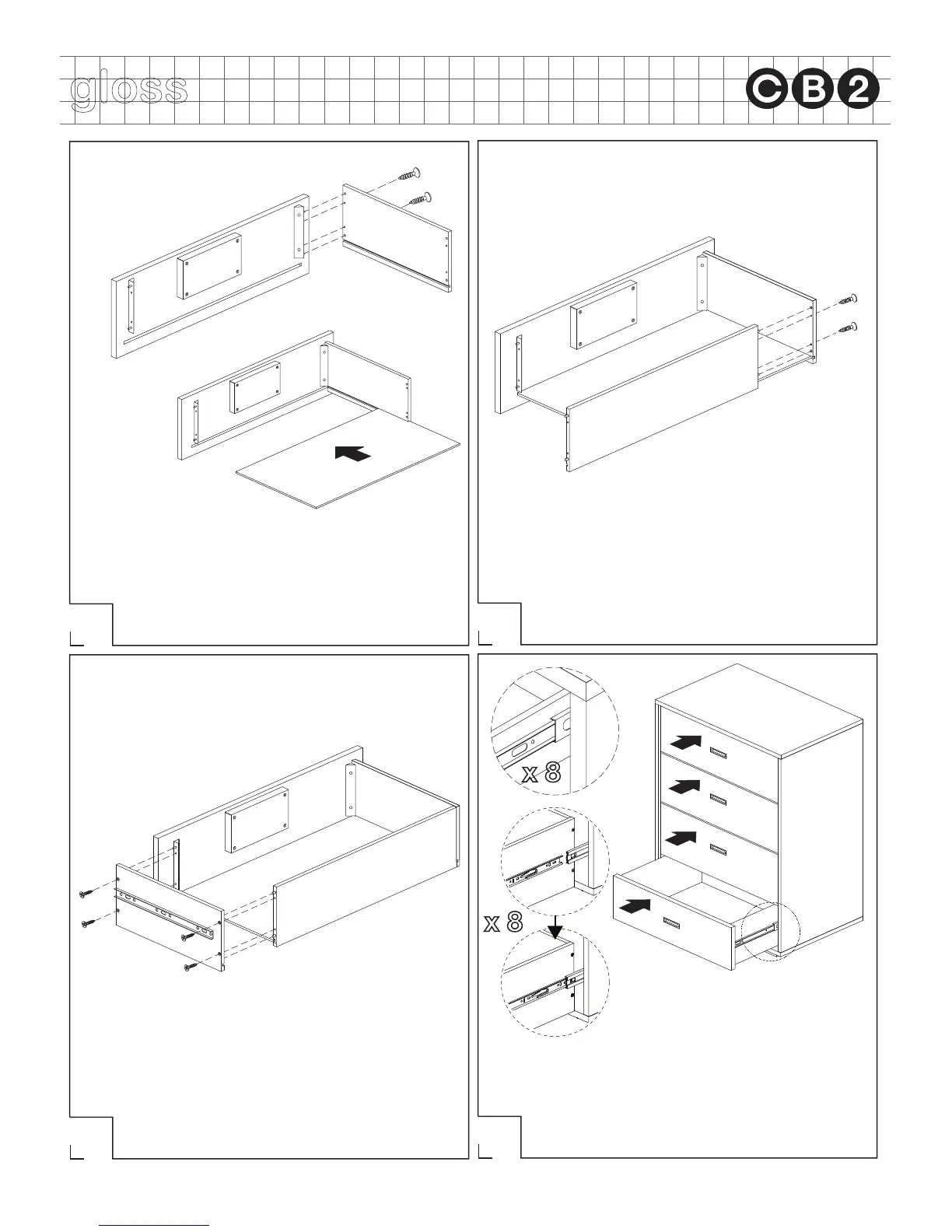

A. Attach left drawer side to drawer front with
2 screws as shown. Secure, but do not over
tighten, screws with a screwdriver.
B. Insert drawer bottom into grooves of drawer
side and front as shown.
Attach right drawer side to drawer front and
back with 4 screws as shown.
Repeat assembly steps 5-7 for remaining 3
drawers.
Attach drawer back to left side drawer with 2
screws as shown.
A
B
NOTE: Do not
over tighten
the screws
left drawer
side
drawer
front
drawer
bottom
drawer
back
right drawer
side
Align drawer glides of each drawer with
corresponding drawer glides of assembly as
shown. Firmly push drawer into assembly until
the glides are securely engaged.
Assembly is now complete.
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
NOTE:
Make sure glides are
pulled out of the case, and
ball bearings are at the front of
the extended glides
To Next Page
