CCM 040-1196-2 - Packaging Contents; Parts List

model no. 040-1196-2
PACKAGING CONTENTS
PACKAGING CONTENTS
KEY NUMBER DESCRIPTION QUANTITY ILLUSTRATION
A Centrebracket 1
B
Stingerbase(withpinand2"(5cm)
receiveradaptor)
1
C
Pinclip 1
D
Wheeltrayloadbar 2
E
Centremast 1
F
Wheeltray(driverside) 2
G Wheeltray(passengerside) 2
H
Anti-swayhitchpin 1
I Hitchpinlock 1
J Key 2
K Hexbolt,31/2"(90mm) 1
L Stepbolt,23/4"(70mm) 2
M Stepbolt,13/4"(45mm) 4
N Nylonlocknut,15/16"(24mm) 1
O Nylonlocknut,1/2"(13mm) 6
P Springwasher,1/2"(13mm) 1
Q Flatwasher,5/8"(16mm) 2
R
Flatwasher,1/2"(13mm) 1
S
Flatwasher,5/16"(8mm) 6
4

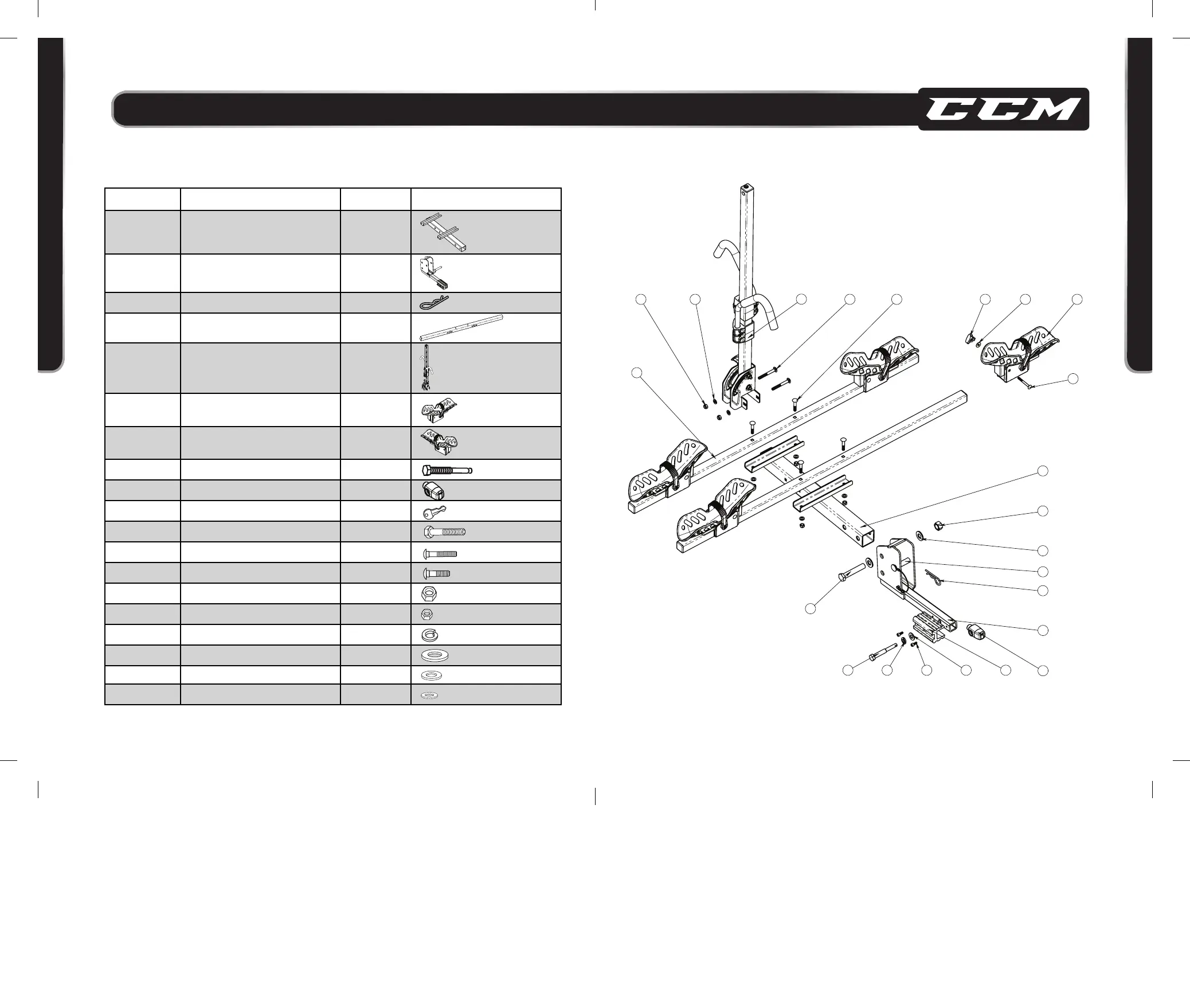

PARTS LIST
1
2
3
4
5
6
78 910 11
12
13
14
151617 18
19
2021
22
23
5
PARTS LIST
