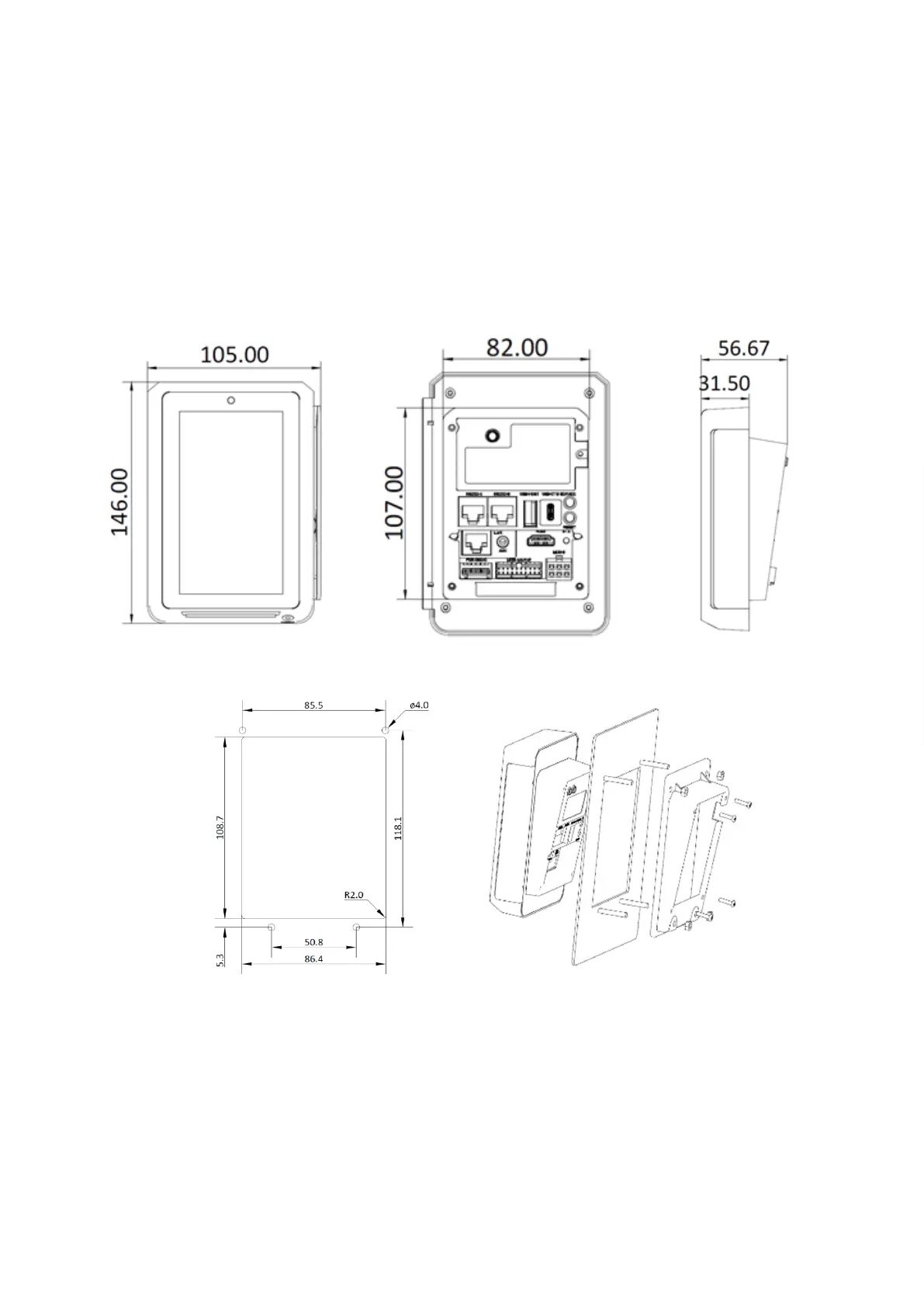

The CCV IM30 is designed to be mounted on vertical surfaces through a mounting plate. The dimensions are
those of a standard door module as dened by the European Vending Association. The M4 stud bolds should
extrude from the back of the mounting plate to allow for the mounting bracket to slot into place.
5. Installation
Attention: Mounting the 4xM4 screws has to be done with a moment of force about 1.2Nm +-0.2Nm.
