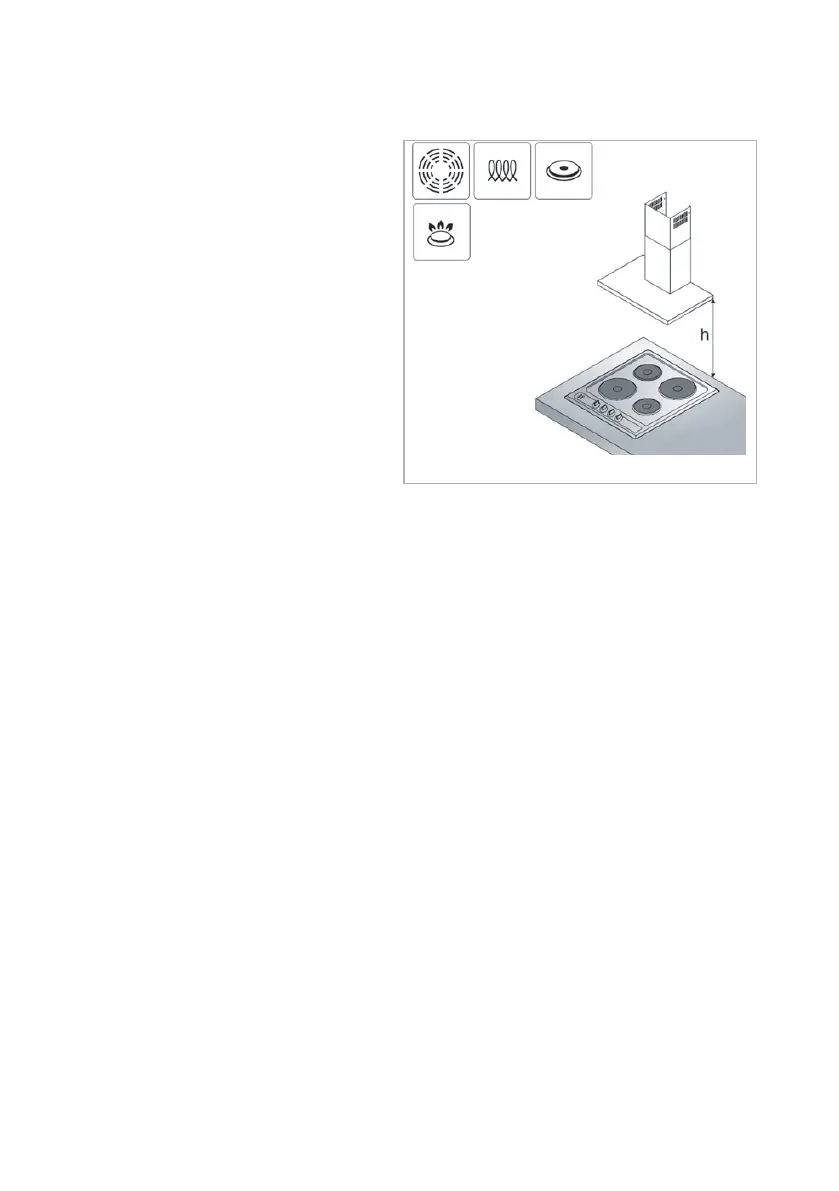

Determining the position of your extractor
When the extractor is to be
mounted above an electric hob,
the distance between the hob
and the extractor must be
greater than 600. When the
extractor is to be mounted
above a gas hob, the distance
between the hob and extractor
must be greater than 700mm.
h = min 600mm
Fig 7.
h = min 700mm
If the instructions provided with your gas hob dictate that the required
distance between hob and extractor must be greater than 700mm
then that is the distance that should be observed; this is a legal
requirement and failure to comply with the regulations may lead to
your hob being disconnected from the mains gas supply, and the
installation reported to RIDDOR. Any heights measured are from the
ttoopp ooff tthhee ggaas s bbuurrnnererss..
In tIn thhee aabbsseencncee ooff aannyy iinnssttruruccttiioonnss ssuupplipplieedd wwiithth tthhee ggaass hhoobb,, tthhee
mmiinniimmuumm disdisttaannccee bbeettwweeeenn tthhee hhoobb aannd d eexxttrraaccttoorr mmuusstt bbee aatt lleaeasstt
776600mmmm.. TThhee wwididtthh ooff aannyy h hoobb mmuusstt n noot t bbee ggreareatteerr th thaann tthhee wwiiddtthh
oof tf thhee exexttraraccttoorr..
14 | Instruction Manual
