PreparationPreparation
PreparationPreparation

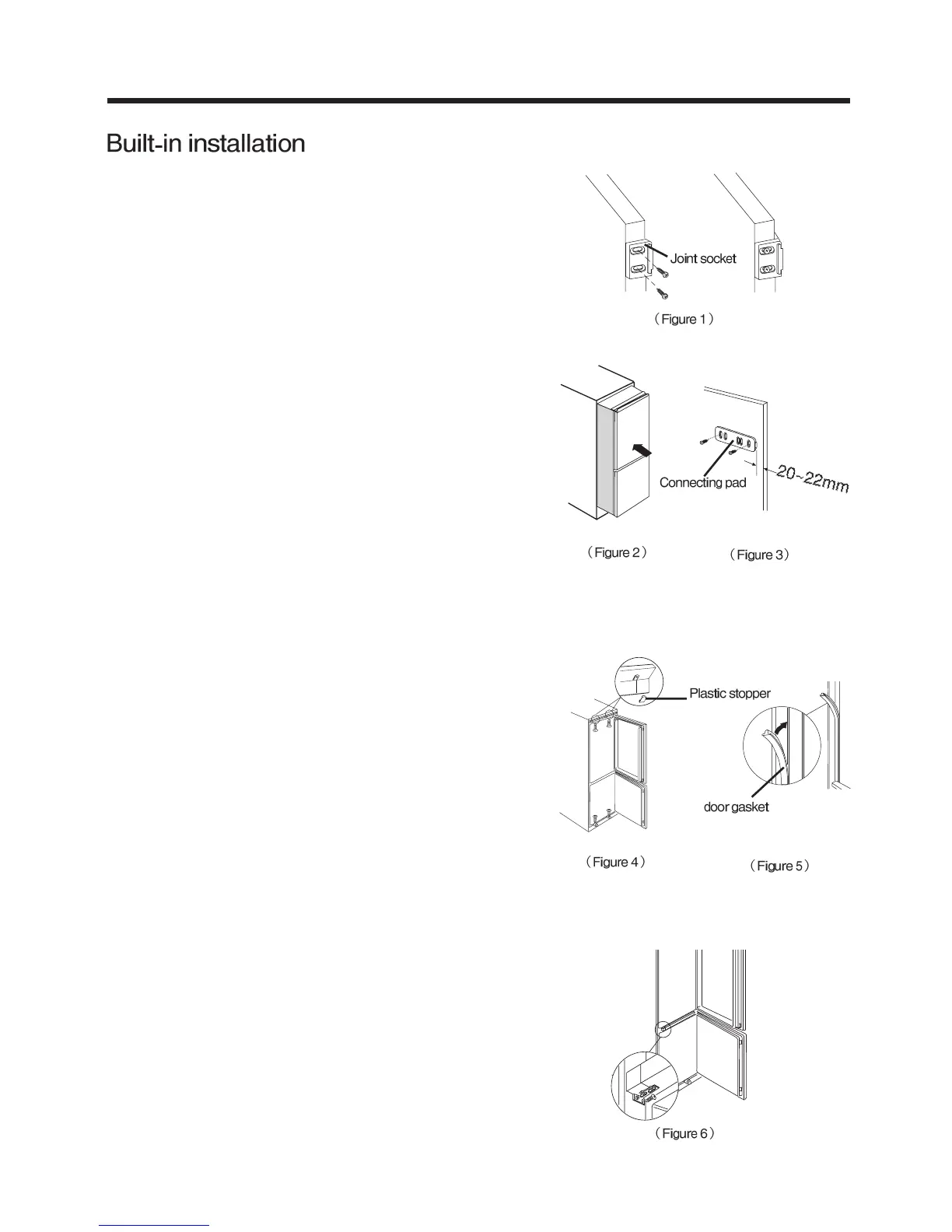

Preparation
1. Ensure that the doors of the kitchen unit and the
refrigerator are of the same opening direction. (Take
the right-opening door as an example)
2. Fix the joint sockets to the freezer and refrigerator
doors with the provided screws (Figure 1).
3. Move the refrigerator into the kitchen unit,
ensuring the left side panel of the refrigerator as
close as possible to the wall. (Figure 2)
4. Insert the connecting pad into the joint socket
and then fix the connecting pad on the door of the
kitchen unit with a margin of 20-22mm. (Figure 3)
5. Properly place the refrigerator with a 3-4mm
space between the left side to the wall, ensuring
that the doors of the refrigerator and the kitchen
unit can be easily opened and closed, and the
connecting pad is correctly settled in the joint
socket.
6. Fix the upper and lower stiffeners to the upper
connection and base panel. The screw holes shall
be plugged with the plastic stoppers. (Figure 4)
7. Fill the left gap of the kitchen unit with the gasket.
(Figure 5)
8. Remove the screws and the hole stoppers on the
left of the middle connection, and fix the connecting
pivot to the refrigerator with one end in the hole
which was plugged by the stopper and the other
end to the inside wall of the kitchen unit. (Figure 6)
C
7

CDA CW897 Specifications

General

Product color	White
Reversible doors	Yes
Custom panel-ready	No
Appliance placement	Built-in
Star rating	4*
Freezing capacity	6 kg/24h
Freezer net capacity	91 L
Freezer gross capacity	105 L
Noise level	45 dB
Total net capacity	246 L
Total gross capacity	263 L
Fridge net capacity	157 L
Fridge gross capacity	158 L
Fridge number of shelves/baskets	9

Weight and Dimensions

Depth	544 mm
Width	540 mm
Height	1773 mm
