Installation
Note:
We recommend that you seek the help of another individual when installing this product.
Preparing the extractor
The electronic control box and ventilation pipe need to be fitted to the motor body before proceeding with the install.

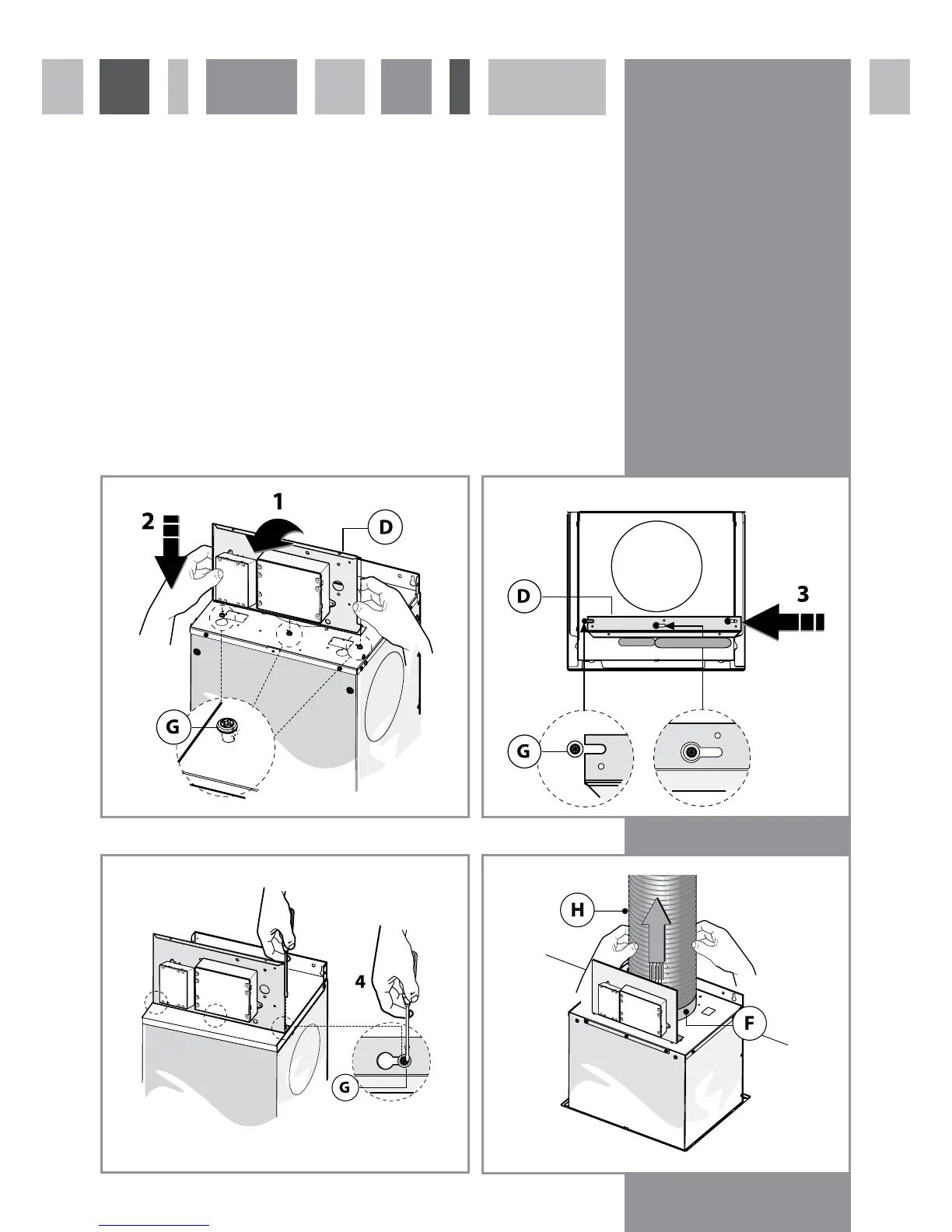

To connect the electronic control box, proceed as shown below using screws (G) (figs 7,8,9).
Finally, attach the ventilation pipe (H) to the pipe adaptor (F) and place on the exhaust outlet, as shown in fig 10.
Fig. 7 Fig. 8
Fig. 9
Fig. 10
