Installation
Assembling the extractor ready for mounting:

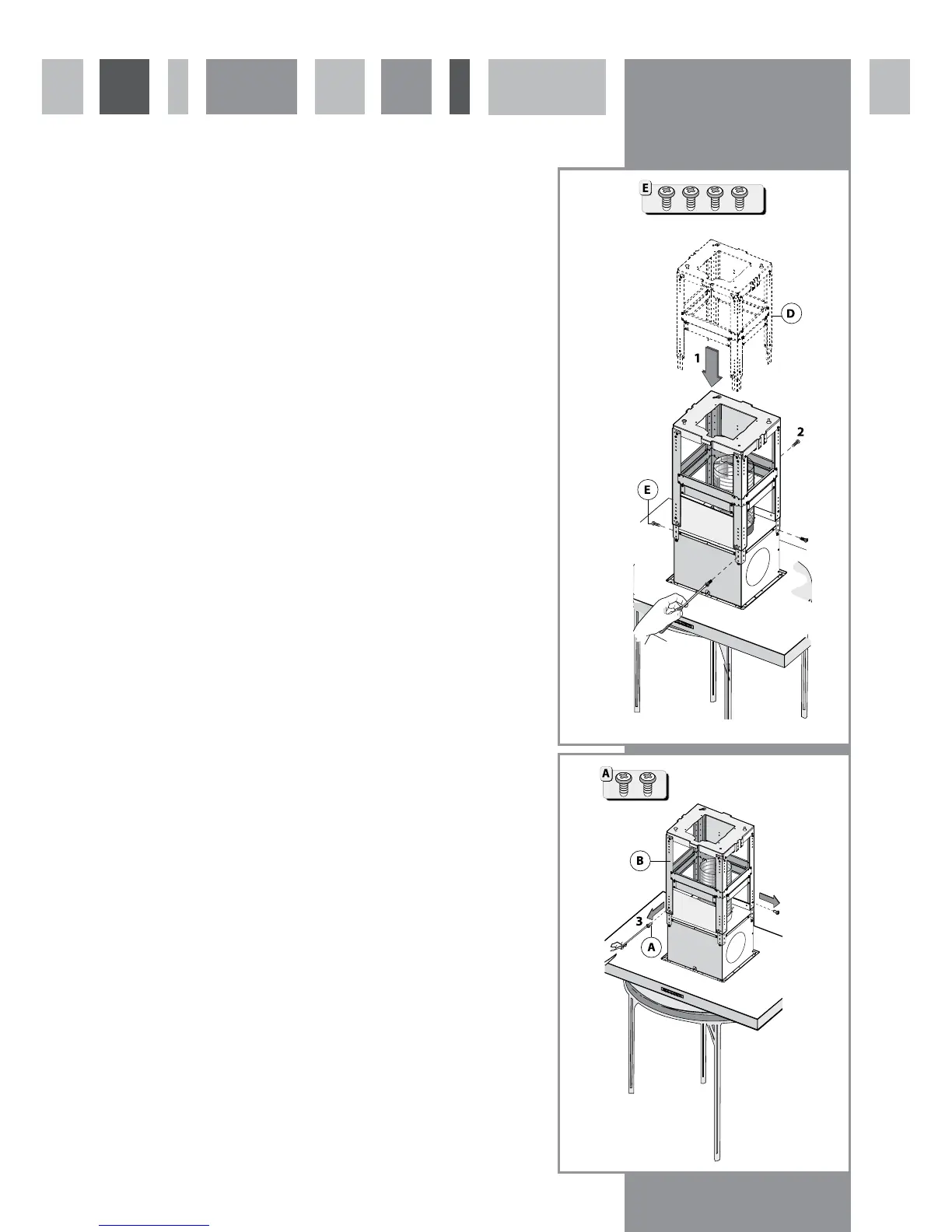

1. Place the extractor body on a table and fix the support sections (D) using
the supplied screws (E) as shown in fig 11 below.
2. Remove the screws(A) fastening the lower and upper(B) support sections
as shown in fig 12 below.
3. Measure the height of the ceiling and then the hotplate height from the
floor. The height of the hob assembly, including the body should be
equal to:
Ceiling height – (H + Hotplate height)
Where H= 600mm minimum for electric hobs and 700mm minimum for
gas hobs
Note that if the extact height cannot be set, use the support position
corresponding to the next highest one to prevent any issues with installation
heights above hobs.
