Installation
Mounting the extractor to the ceiling:
4. Recirculating mode:
If the extractor is to be used as a recirculation device, filtering the air
before recycling into the kitchen then the vent diverter needs to be fitted.
Fit the diverter(M) to the upper support section using screw (I) and
connect the ventilation pipe (H).
5. Connect the mains electrical supply (Refer to the ‘Mains electricity
connection’ section of the manual) and then secure the chimney
sections(B) to the upper support using the four supplied screws (F), as
shown in Fig 19 above:

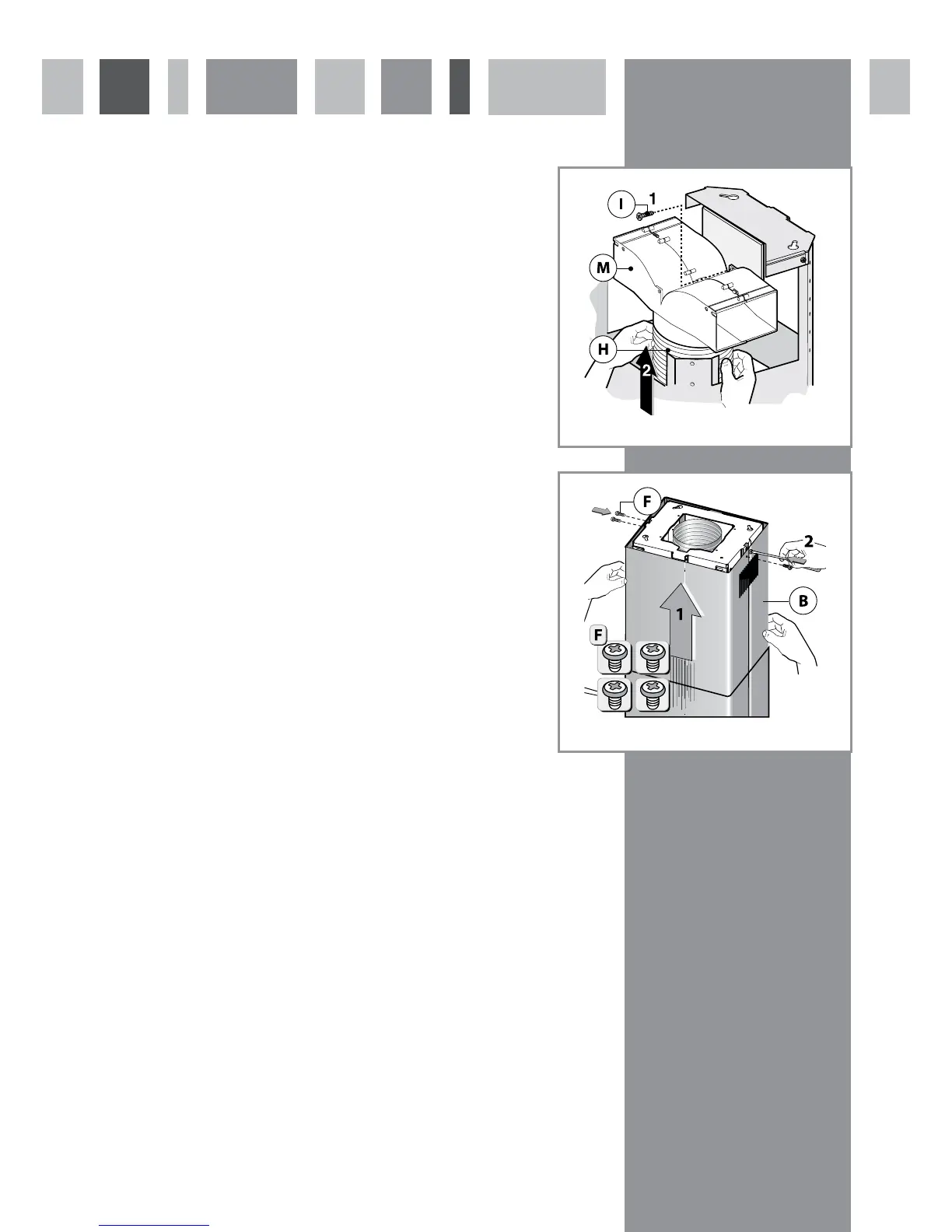

Fig. 18
Fig. 19
