CDA FW253 - Fitting and Securing the Appliance

20
fig. 9
Installation

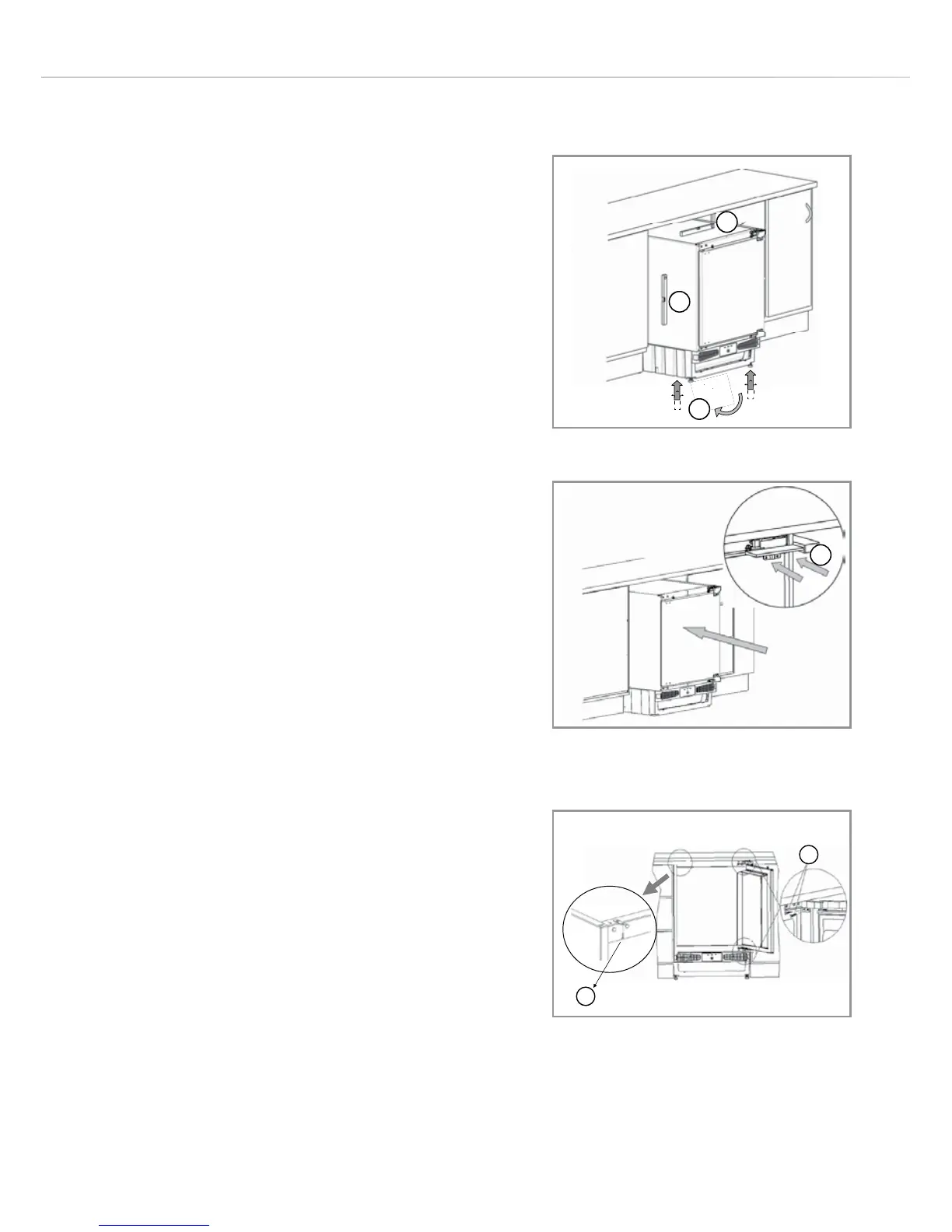

Fig. 7 - Adjusting the appliance height
The height of the appliance can be
adjusted by the help of adjustable feet
to fit the furniture height. Use a spirit
level to ensure the appliance is level.
Fig. 8 - Aligning the appliance
Slide the appliance into the kitchen unit
and align the hinge surface with front
surface of the kitchen unit.
Fig. 9 - Fixing the appliance
Screw the hinges and metal bracket to
the kitchen unit using screws (1)
