Installation

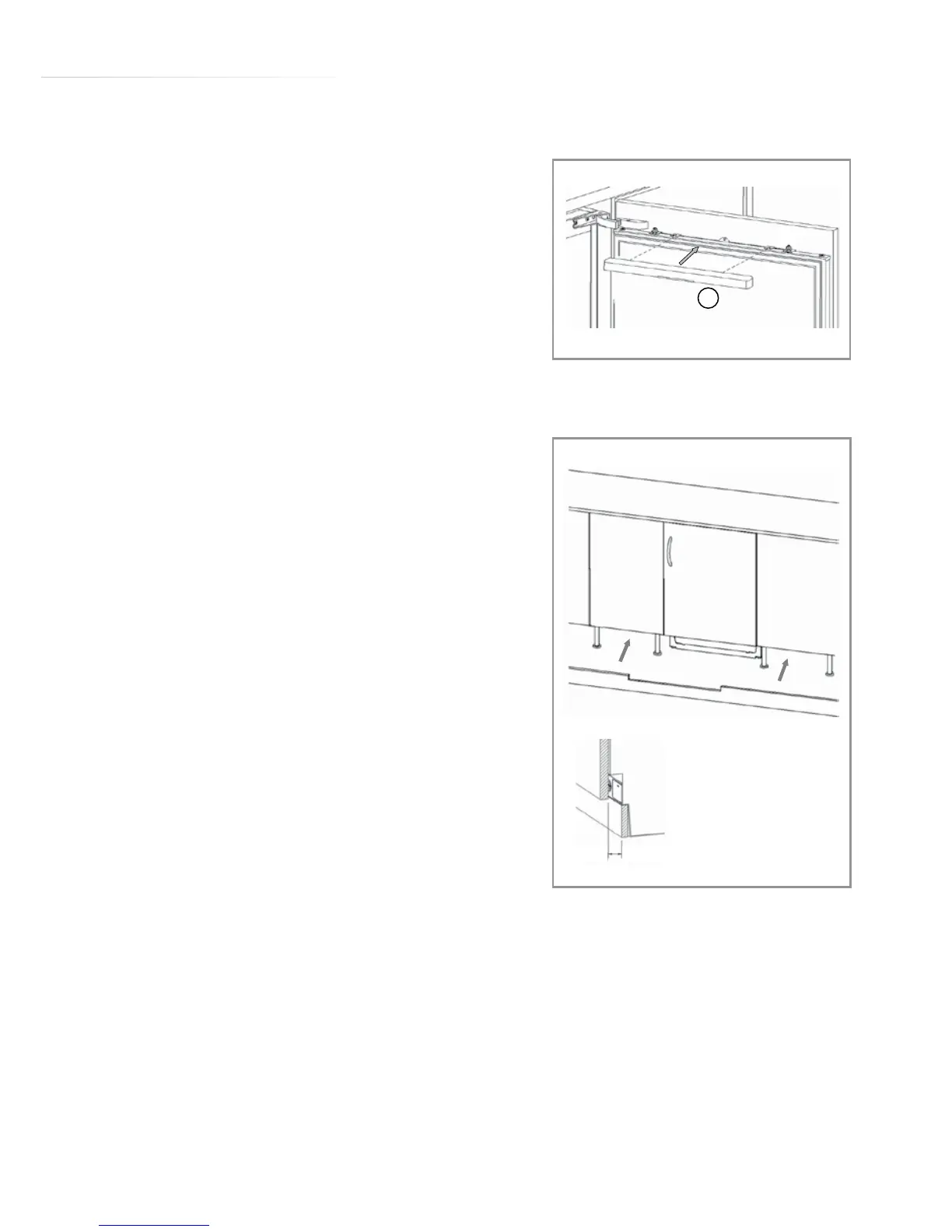

Fig. 15 - Fitting the decorative cover
Fit the decorative cover (4) on the decor
door fixing bracket.
Fig. 16 - Fitting the plinth
Fit the plinth section, providing
minimum 25 mm gap between the
cabinet door and fix it.
Never cover over the ventilation slots.
Once installed the plinth must not
block the ventilation slots in the
appliance.
This may require cutting the plinth
down. Failure to ensure adequate
ventilation may invalidate the
warranty.
fig. 16
min
25mm
