CDA FW422 User Manual

7
fig. 3
fig. 2
Installation

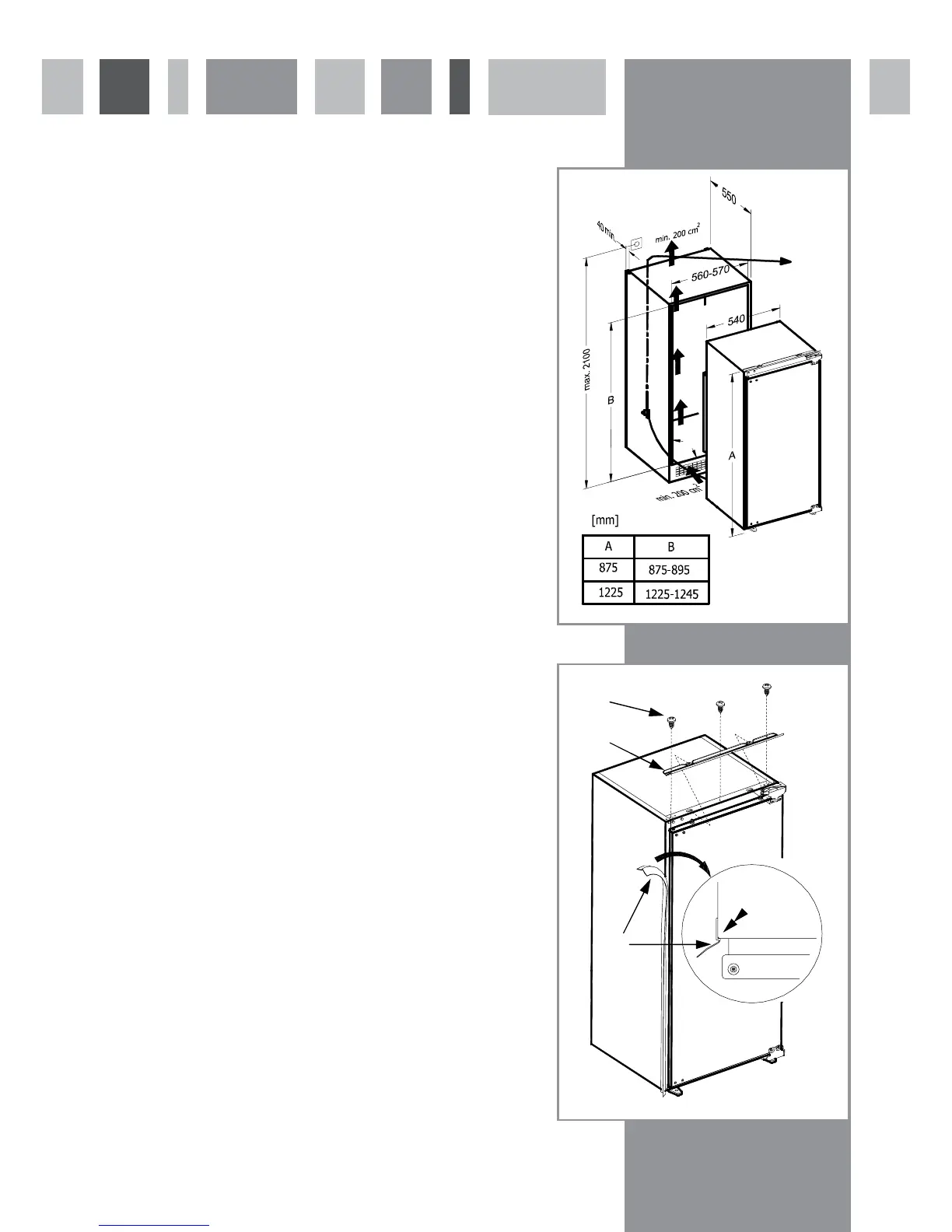

Product Dimensions and aperture required for installation:
Your refrigerator is designed to be installed into a standard larder unit of
width 560-570mm and depth of 550mm. the diagram below shows the
product dimesnions and aperture required.
Note also the arrows on the diagram show ventilation requirements. In
the diagram a plinth vent is fitted to allow free air into the cabinet. This is
not necessary where there is already a free air supply into the run of units
provided by a vent in another unit (or side of the run)
Preparing the product for installation:
It is necessary to fit the top fixing bracket (1)and the cabinet gasket seal (4)
prior to commencing the installation.
1. To fit the top bracket, hook it onto the top of the unit and secure in place
using three of the supplied screws (8) as shown below.
2. To fit the gasket trim, peel off the protective seal cover and fix the gasket
so it sits flush with the floor, taking care to ensure it is fitted the right way
round; the diagram shows this. Note that this gasket should only be fitted
to the non-hinge side of the refrigerator
9
0
°
8
1
4

CDA FW422 Specifications

General

Door hinge	Right
Product color	White
Reversible doors	Yes
Shelves material	Tempered glass
Custom panel-ready	No
Appliance placement	Built-in
Fridge door balconies	3
Fridge number of shelves/baskets	6
Noise level	41 dB
Climate class	-
Fridge net capacity	134 L
Fridge gross capacity	135 L
Connected load	- W
Energy efficiency scale	A to G
Annual energy consumption	116 kWh

Weight and Dimensions

Depth	550 mm
Width	540 mm
Height	875 mm
