Mounting the Fascia
Door

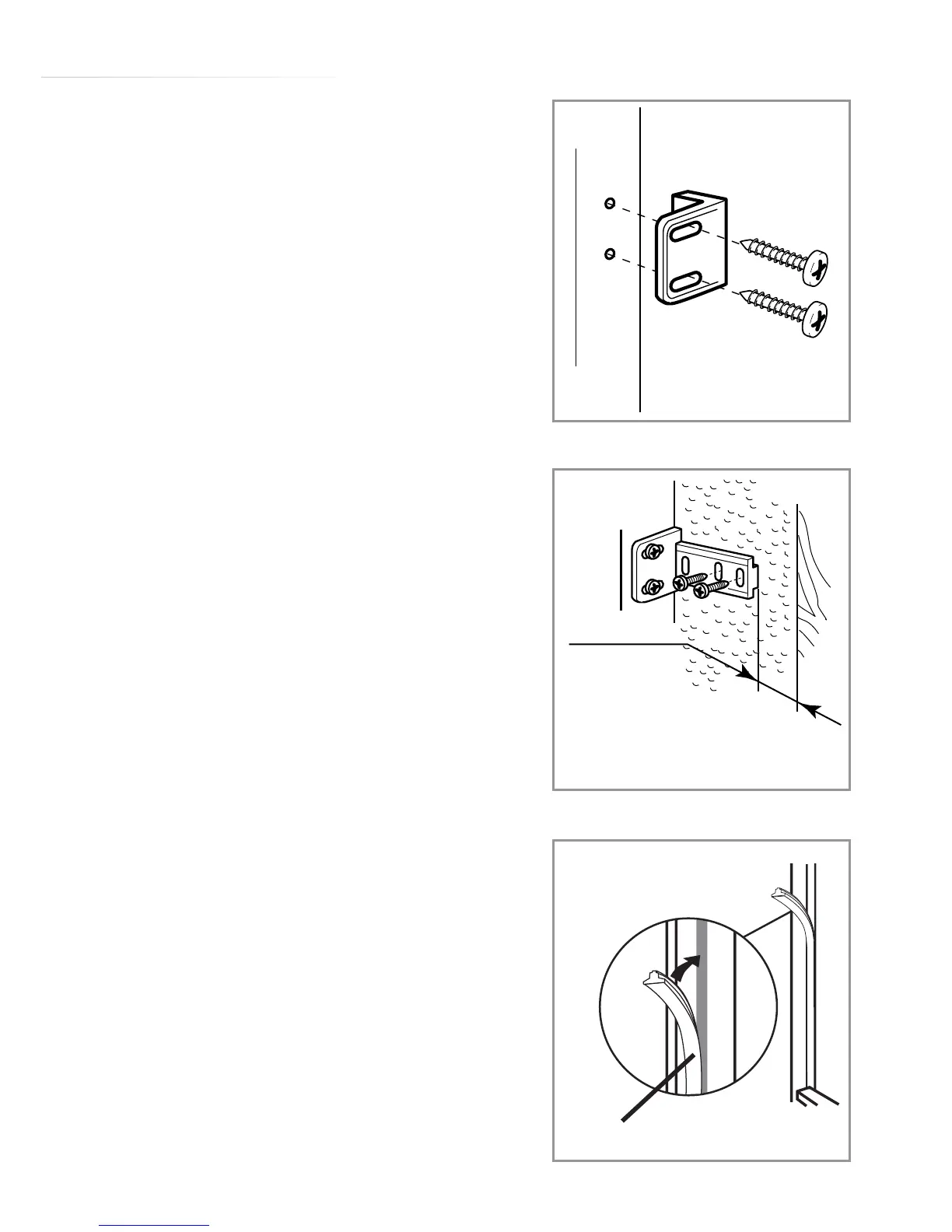

• Using a screwdriver, fix the mounting
brackets to the appliance door, as
shown in figure 10.
• Position the appliance within the unit.
Ensure that there is a gap of 3 to 4mm
between the non-hinged side and the
cabinet wall.
• Locate the slider in the bracket and fix
the slider to the fascia door 20 to
22mm from the edge of the fascia
as shown in figure 11, ensuring that
the slider is positioned centrally and
horizontally within the bracket.
Tighten securely by hand.
• Fill the gap on the non-hinged side
with the seal strip provided, as shown
in figure 12.
20 mm
door gasket
x4
x4
fig. 10
fig. 11
fig. 12
