19
Burners
They can be removed and washed only
with soapy water.
Detergents can be used but must not be
abrasive or corrosive.
Do not use abrasive sponges or pads.
Do not put in dishwasher.
After each cleaning, make sure that the
burner-caps, as well as the burners, have
been well wiped off and CORRECTLY
POSITIONED.

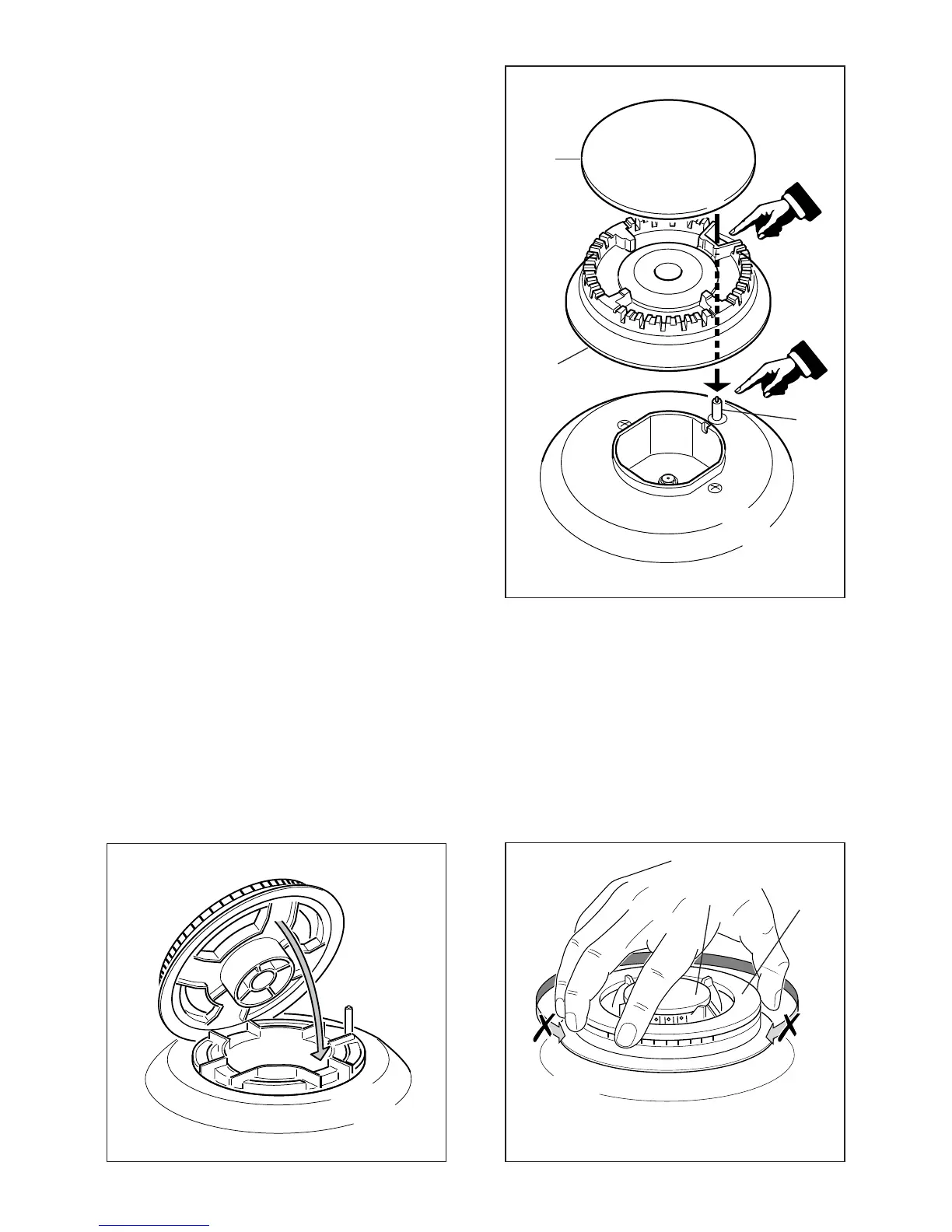

It is essential to check that the burner
flame distributor F and the cap C has
been correctly positioned (see fig. 17) -
failure to do so can cause serious
problems.
Check that the electrode “S” (fig. 17) is
always clean to ensure trouble-free
sparking.
Note:
The electrode “S” must be very
carefully cleaned.
To avoid damage to the electric
ignition do not use it when the
burners are not in place.
F
S
C
Triple ring burner
The triple ring burner must be correctly positioned (see figs. 18-19); the burner rib
must be located correctly in the burner base as shown by the arrow.
The burner correctly positioned must not rotate (fig. 19).
Then position the cap A and the ring B (fig. 19).
A
Fig. 17
Fig. 18 Fig. 19
B
