Replacement of the grill burner injector

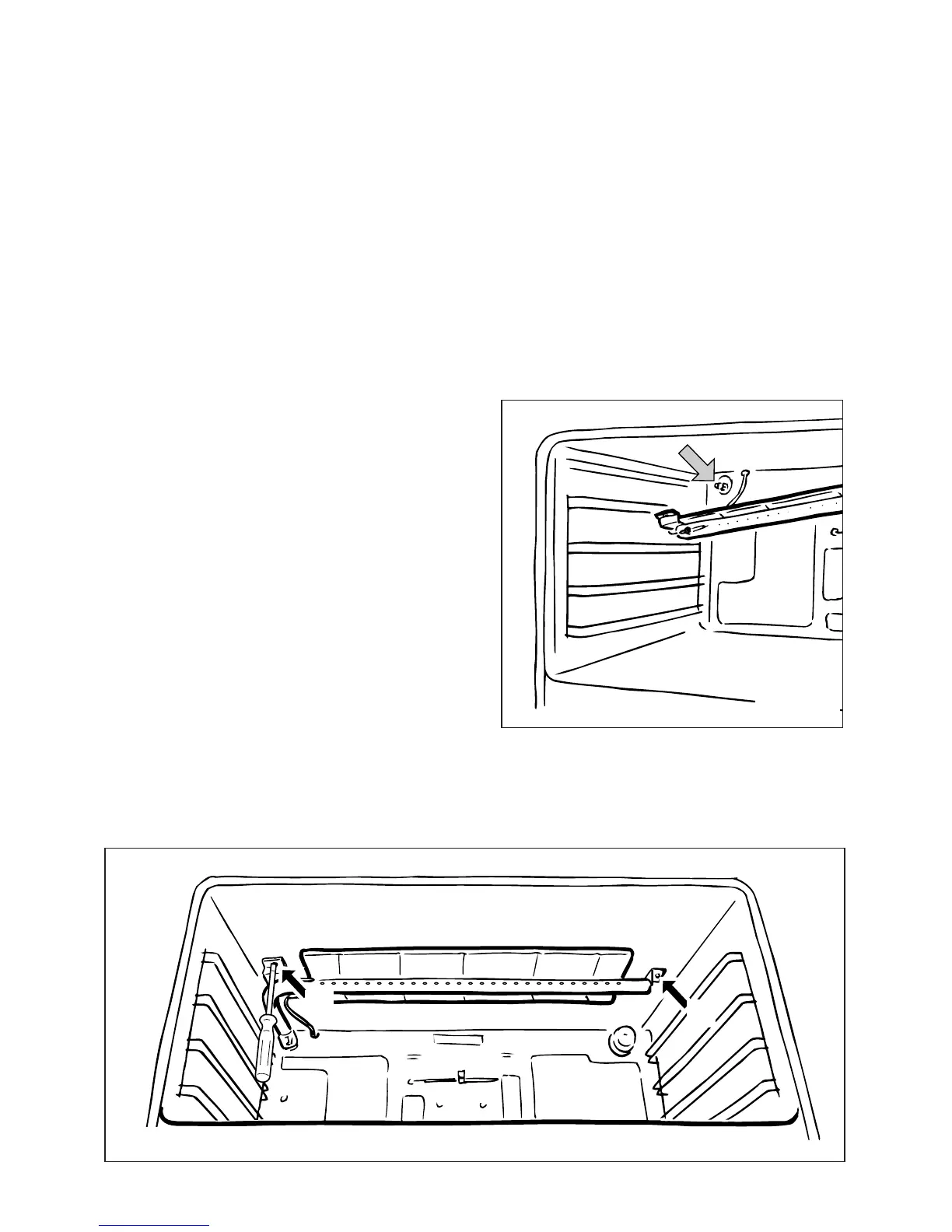

– Unscrew and remove the burner fixing screw ‘C’ (fig. 42).
– Slacken screw ‘D’ (fig. 42).
– Move and gently suspend the burner as shown in figure 43. Take care not to dam-
age the wire to the ignition electrode and the safety valve probe.
– Remove the injector from the connection and replace it with the correct one (fig. 43).
Fig. 43
Fig. 42
