CDA RC9300 User Manual

38

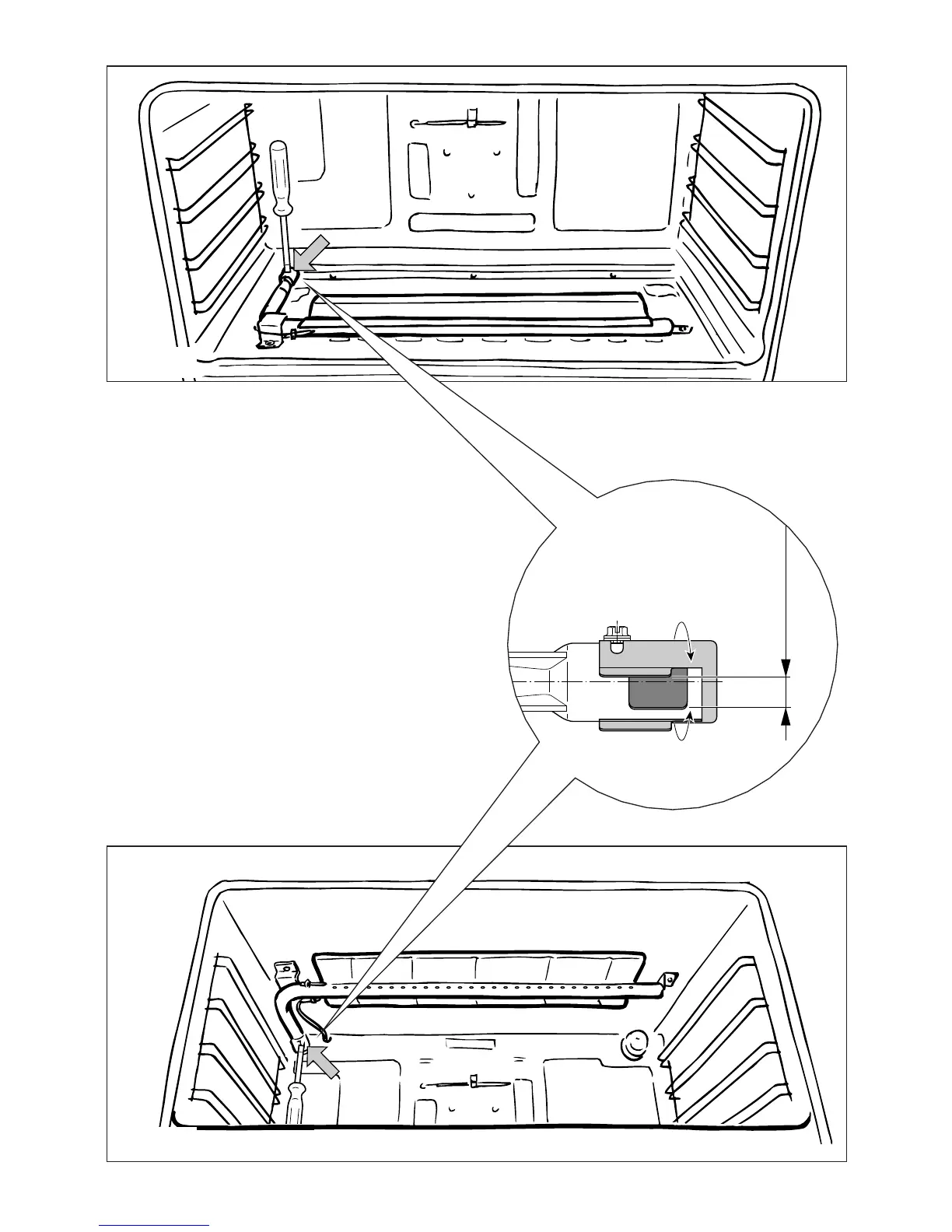

Primary air of the oven
burner
With a screwdriver untighten the screw (fig.
44) and move the air ring forward or back-
ward to close or open the air flow, accord-
ing to the “Table for the choice of the injec-
tors”. Light the burner and check the flames.
Primary air of the grill
burner
With a screwdriver untighten the screw (fig.
45) and turn the air ring to close or open the
air flow, according to the “Table for the
choice of the injectors”.
Light the burner and check the flames.
Fig. 44
Fig. 45
Ring opening [mm]
