CDA SL550SS - Reassembling Inner Door Glass

26 | Instruction Manual
Cleaning and maintenance

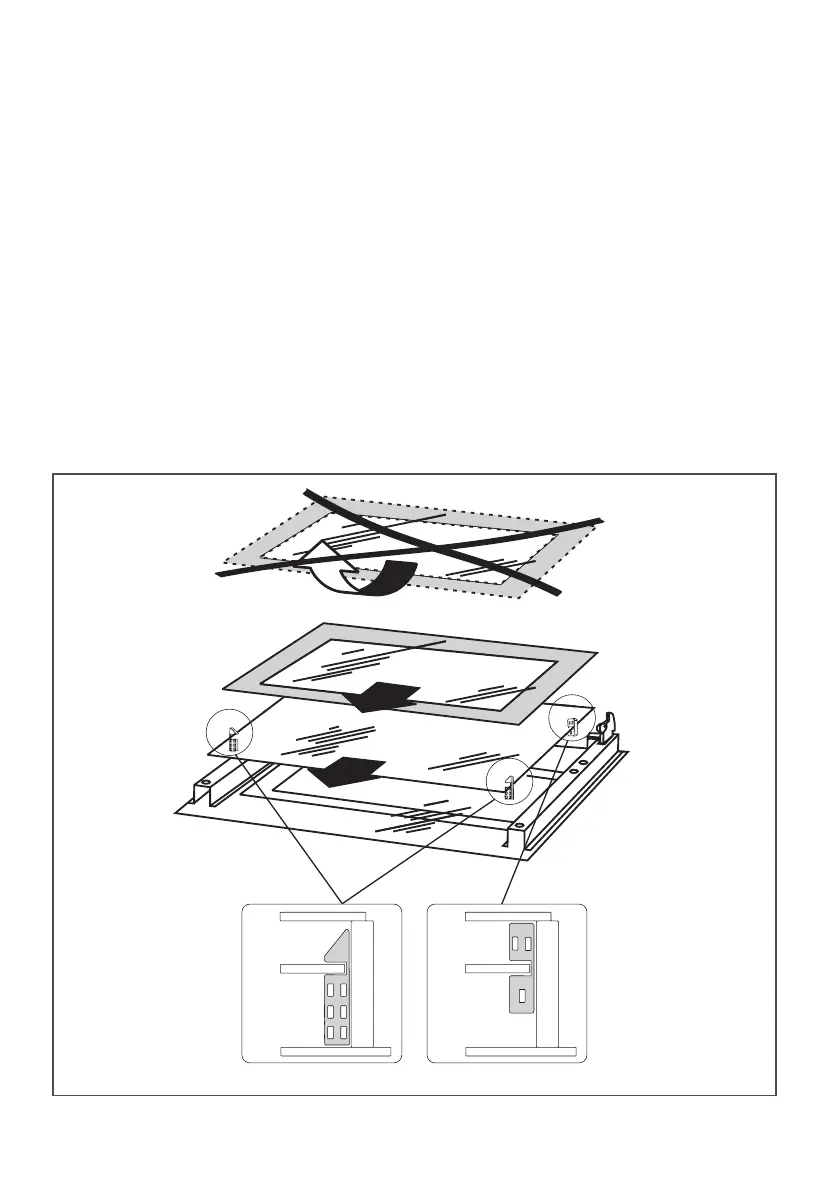

• There are a number of rubber guides attached to the inner pane
and these must be returned to their original positions when
reassembling the door. Fig. 7 shows these guides and their
position on and around the inner glass
• Simply reverse these steps in order to reassemble the door. Take
care when reattaching the upper door slat. Place the left side on
first until you hear a ‘click’ as it connects and then attach the right
side. This will help to avoid damaging the door and/or glass
1
2
3
1
2
3
1
2
3
Upper glass
guides (both
sides)
Lower glass
guides (both
sides)
Fig. 7
• The middle pane of glass can also be removed but it is important
that this pane is reinserted facing the same way that it was when
removed
