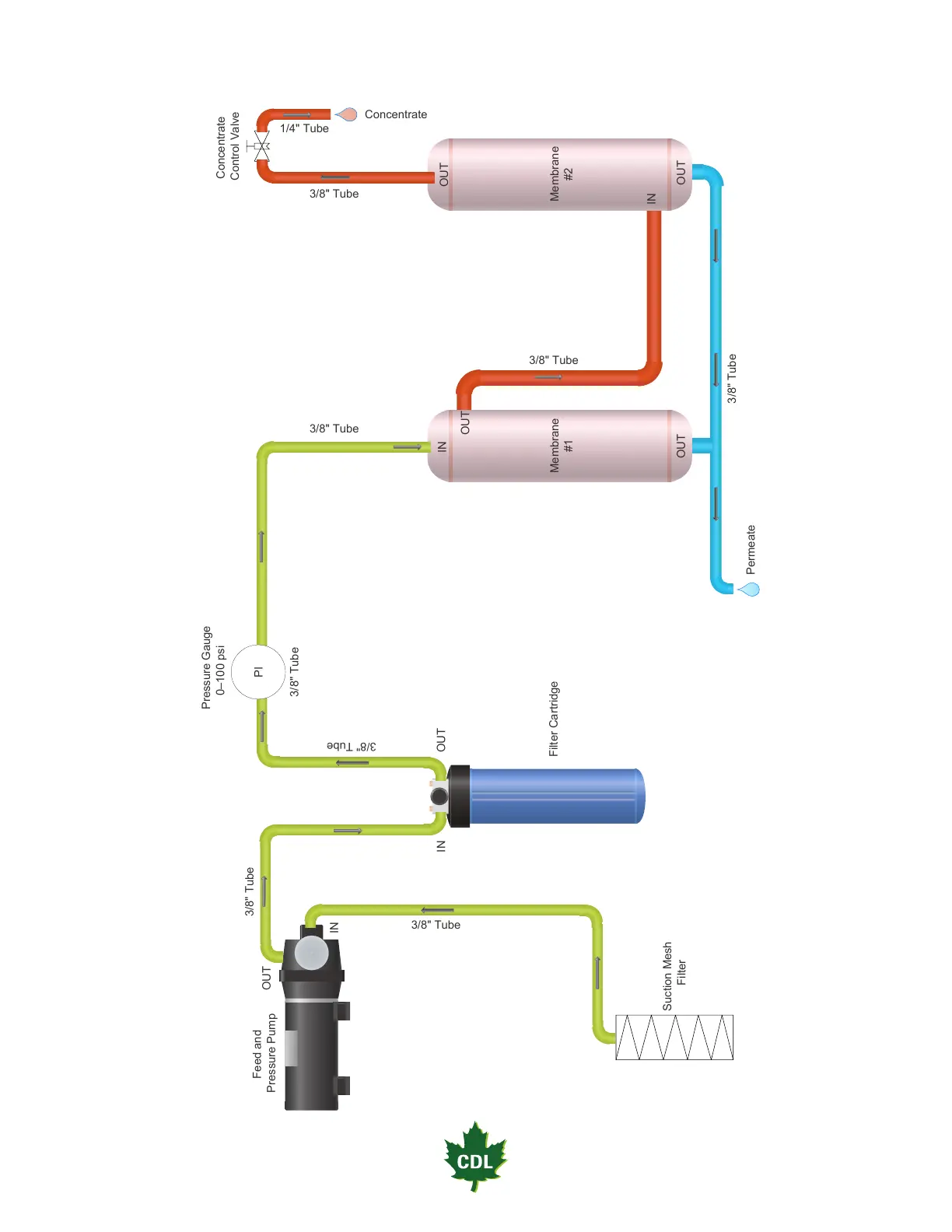

CDL NANO RO - Flow Diagram (2-Membrane Model)

10 CDL Sugaring Equipment
Feed and
Pressure Pump
PI
Pressure Gauge
0–100 psi
Filter Cartridge
Suction Mesh
Filter
Membrane
#1
Membrane
#2
Concentrate
Control Valve
IN
OUT
IN OUT
OUT
OUT
IN
IN
OUT OUT
Concentrate
3/8" Tube
3/8" Tube
3/8" Tube
3/8" Tube
3/8" Tube
3/8" Tube
Permeate
3/8" Tube
1/4" Tube
3/8" Tube
Flow diagram (2-membrane model)
