ATRIUM A22POEPOE
2-Door Controller
INSTALLATION MANUAL

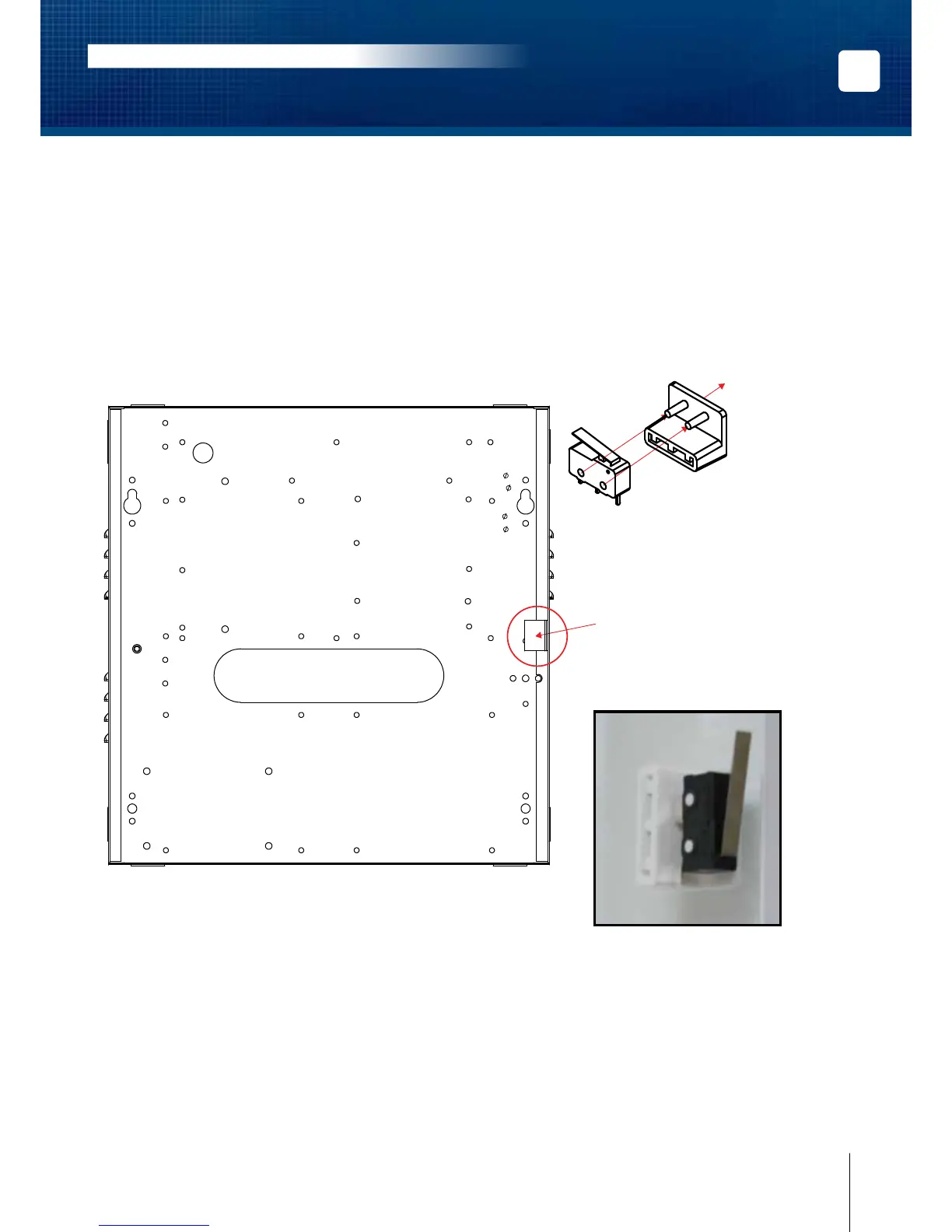

Fix the tamper switch to
the bracket then mount
the bracket on the
mounting flange
Door
Tamper Switch
Bracket
Door Tamper Switch
Mounting Flange
Install the door tamper switch by aligning the switch holes to the pre-installed plastic bracket pins. Press rmly
to secure the tamper switch in position, then x the bracket to is mounting ange.
Refer to page 16 for wiring diagram.
