INSTALLING THE A22POE PC BOARD

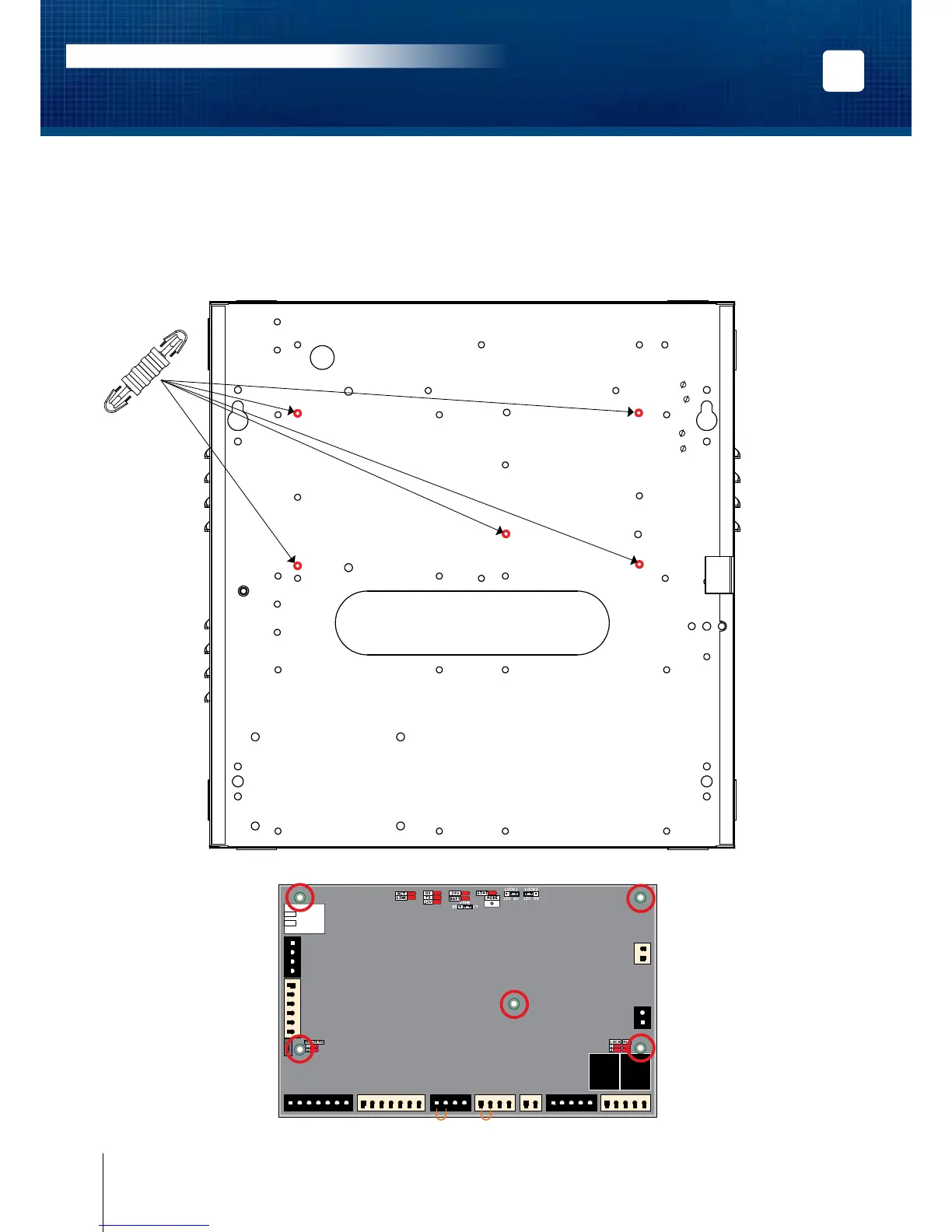

Install the 5 fasteners (PCB holder) supplied respectively to the box holes identied in red in the following
picture. Install the A22POE PCB by aligning the fasteners with the corresponding PCB holes and pressing rmly
to secure the PCB in place.
