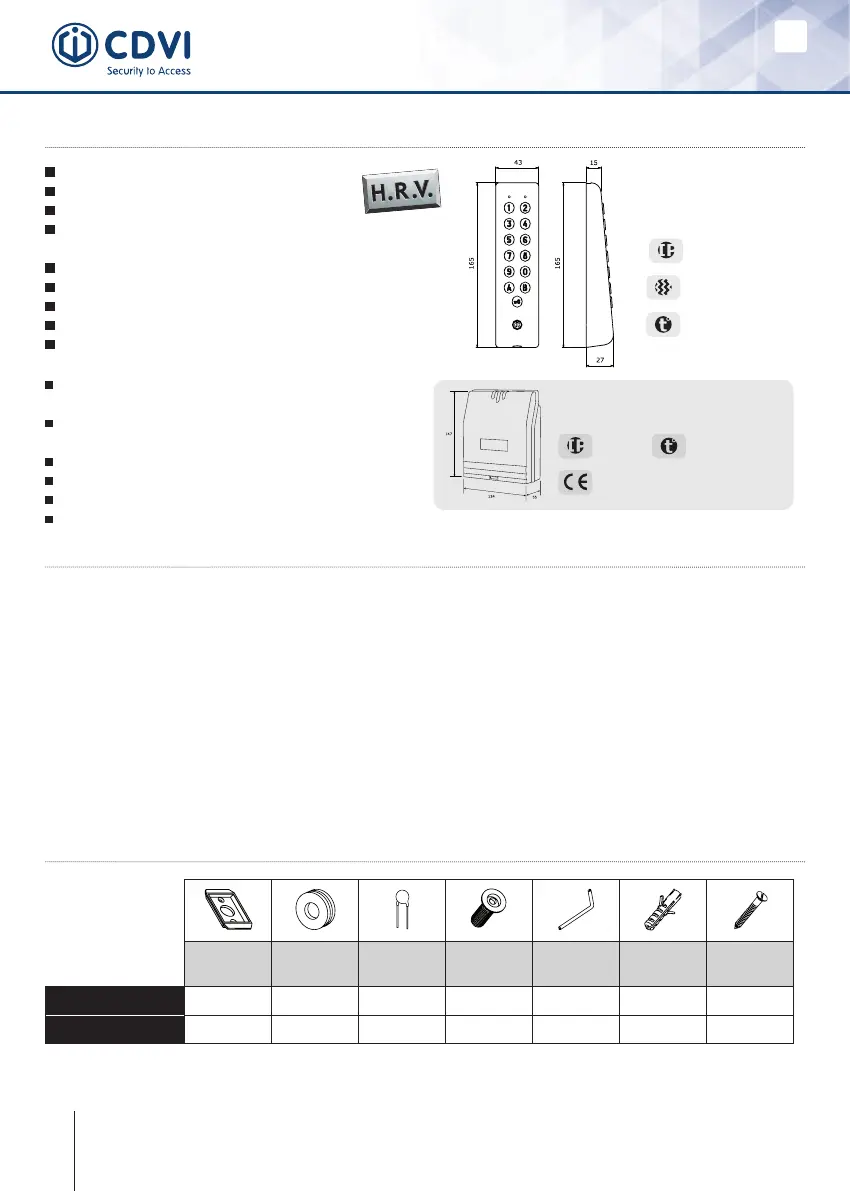

CDVI PROFIL100EC - NOTES & RECOMMENDATIONS

EN
PROFIL100EC
Keypad PROFIL100EC
2 cdvigroup.com
IP52
CE certication
Remote electronics
IP64
-25°C to +70°C
-25°C to +70°C
Environmental tests:
vibrations
Mounting plate
for remote
electronics box
Wiring
sealed cap
Varistor
(M5x8 Diax
®
screw)
T20 Diax
®
Spanner
Plastic
anchors
(M4x30)
mounting
screws
Remote electronics
1 4 - - - 2 2
PROFIL100EC
- - 1 1 1 2 2
1] GENERAL INFORMATION
Construction: Stainless steel
Remote electronics
Surface mount
Capacity of 100 user codes
of 4 to 6 digits
Stored in EEPROM memory
Buzzer audible signal
Backlit keys
LED lights for alarm system
2 dry contact relay outputs
Adjustable time output:
1 to 99 seconds and toggle mode
Operating voltage:
12-24Vac and 12-48Vdc
Consumption: 25 to 80mA
Mounting with Diax
®
screws
Dimensions (L x W x D): 165 x 43 x 27 mm
 Usermodicationofcodes
3] MOUNTING KITMOUNTING KIT
2] 2] NOTES & RECOMMENDATIONS
Recommended power supplies.
- ADC335 (230V input), BS60 (230V input).
-Separatepowersupplyforthecontrolelements.
Wiring
- The distance between the keypad
and the remote electronic can not exceed
more than 50 meters.
- Make sure that the cable is not near by a high
voltage cables (ex: 230V ac).
- Recommended cable between the keypad
and the remote electronics: 2 twisted pairs
(4 wires) SYT1 0.8MM.
Mounting recommendations
Mountthekeypadonaatsurfacetoavoid
any vandalism and to insure the best mounting.
Security advice
- For security advice reasons, change
 thefactorydefaultmastercode.
- When selecting a master code and user code
avoid simple codes (example : 3 4 5 6 7).
Back EMF protection
Tosecurethesystemfrombackelectromagnetic
eldsdonotforgettomountthevaristor
in parallel on the lock.
HIGH RESISTANCE
TO VANDALISM
