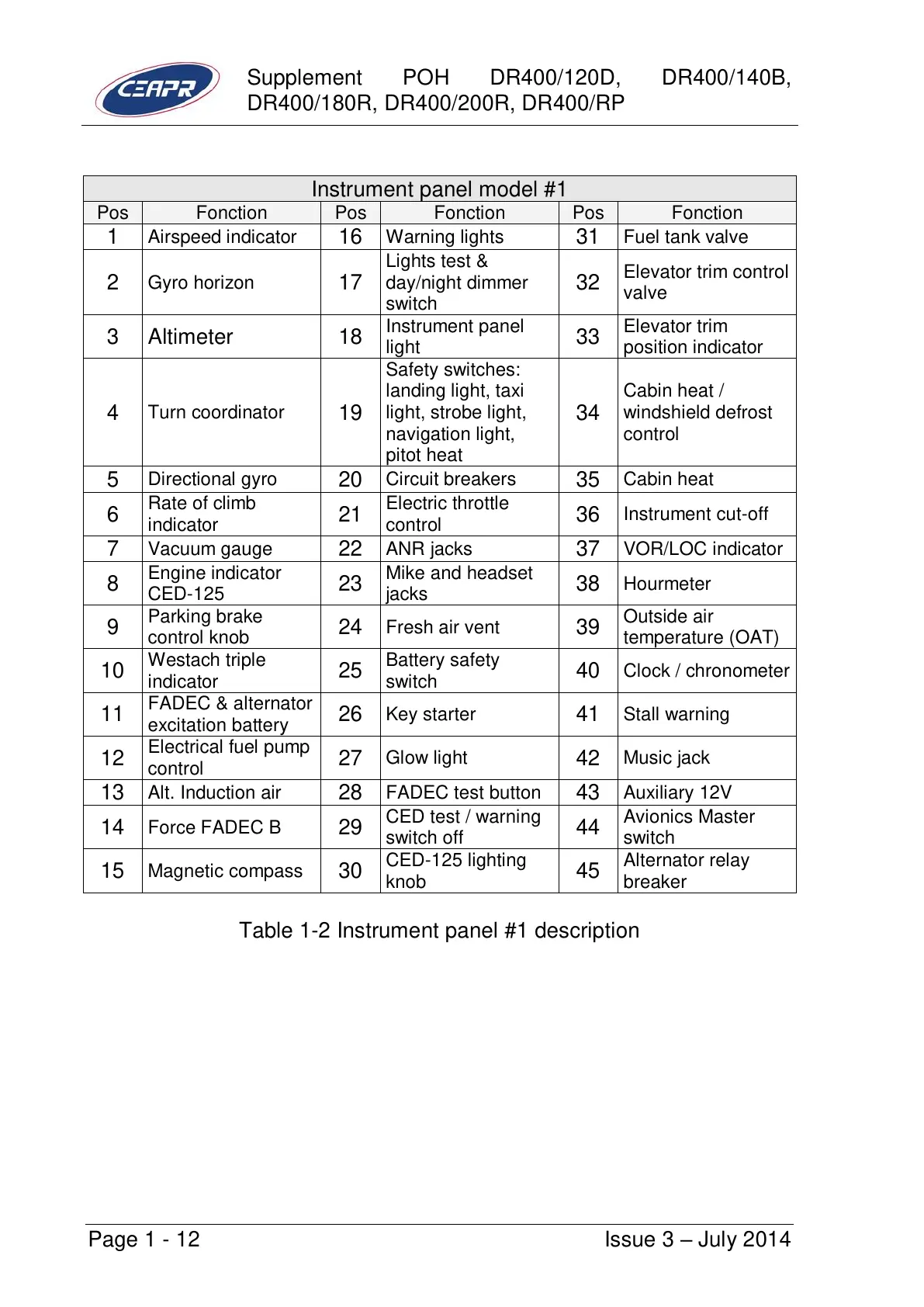

CEAPR DR400/135CDI User Manual

Supplement POH DR400/120D, DR400/140B,
DR400/180R, DR400/200R, DR400/RP
Page 1 - 12 Issue 3 – July 2014
Instrument panel model #1
Pos
Fonction
Pos
Fonction
Pos
Fonction
1
Airspeed indicator
16
Warning lights
31
Fuel tank valve
2
Gyro horizon
17
Lights test &
day/night dimmer
switch
32
Elevator trim control
valve
3
Altimeter
18
Instrument panel
light
33
Elevator trim
position indicator
4
Turn coordinator
19
Safety switches:
landing light, taxi
light, strobe light,
navigation light,
pitot heat
34
Cabin heat /
windshield defrost
control
5
Directional gyro
20
Circuit breakers
35
Cabin heat
6
Rate of climb
indicator
21
Electric throttle
control
36
Instrument cut-off
7
Vacuum gauge
22
ANR jacks
37
VOR/LOC indicator
8
Engine indicator
CED-125
23
Mike and headset
jacks
38
Hourmeter
9
Parking brake
control knob
24
Fresh air vent
39
Outside air
temperature (OAT)
10
Westach triple
indicator
25
Battery safety
switch
40
Clock / chronometer
11
FADEC & alternator
excitation battery
26
Key starter
41
Stall warning
12
Electrical fuel pump
control
27
Glow light
42
Music jack
13
Alt. Induction air
28
FADEC test button
43
Auxiliary 12V
14
Force FADEC B
29
CED test / warning
switch off
44
Avionics Master
switch
15
Magnetic compass
30
CED-125 lighting
knob
45
Alternator relay
breaker
Table 1-2 Instrument panel #1 description
