CEAPR DR400/135CDI User Manual

Supplement POH DR400/120D, DR400/140B,
DR400/180R, DR400/200R, DR400/RP
Page 1 - 14 Issue 3 – July 2014

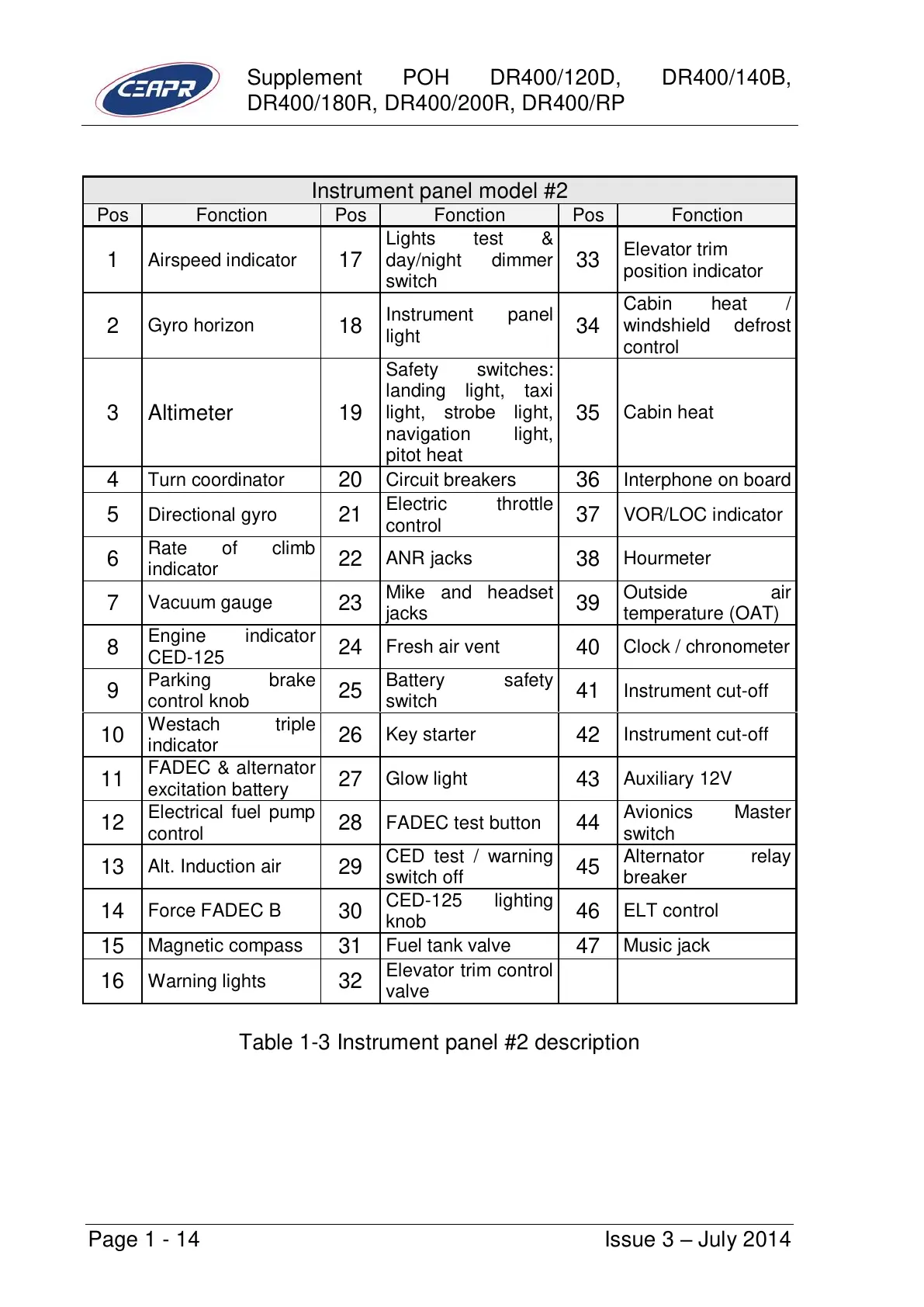

Instrument panel model #2
Pos
Fonction
Pos
Fonction
Pos
Fonction
1
Airspeed indicator
17
Lights test &
day/night dimmer
switch
33
Elevator trim
position indicator
2
Gyro horizon
18
Instrument panel
light
34
Cabin heat /
windshield defrost
control
3
Altimeter
19
Safety switches:
landing light, taxi
light, strobe light,
navigation light,
pitot heat
35
Cabin heat
4
Turn coordinator
20
Circuit breakers
36
Interphone on board
5
Directional gyro
21
Electric throttle
control
37
VOR/LOC indicator
6
Rate of climb
indicator
22
ANR jacks
38
Hourmeter
7
Vacuum gauge
23
Mike and headset
jacks
39
Outside air
temperature (OAT)
8
Engine indicator
CED-125
24
Fresh air vent
40
Clock / chronometer
9
Parking brake
control knob
25
Battery safety
switch
41
Instrument cut-off
10
Westach triple
indicator
26
Key starter
42
Instrument cut-off
11
FADEC & alternator
excitation battery
27
Glow light
43
Auxiliary 12V
12
Electrical fuel pump
control
28
FADEC test button
44
Avionics Master
switch
13
Alt. Induction air
29
CED test / warning
switch off
45
Alternator relay
breaker
14
Force FADEC B
30
CED-125 lighting
knob
46
ELT control
15
Magnetic compass
31
Fuel tank valve
47
Music jack
16
Warning lights
32
Elevator trim control
valve
Table 1-3 Instrument panel #2 description
