Cebora PLASMA PROF 55 - HF-filter board (47)

CEBORA S.p.A. 21
5.3
- HF-filter board (47) code 5.602.173.

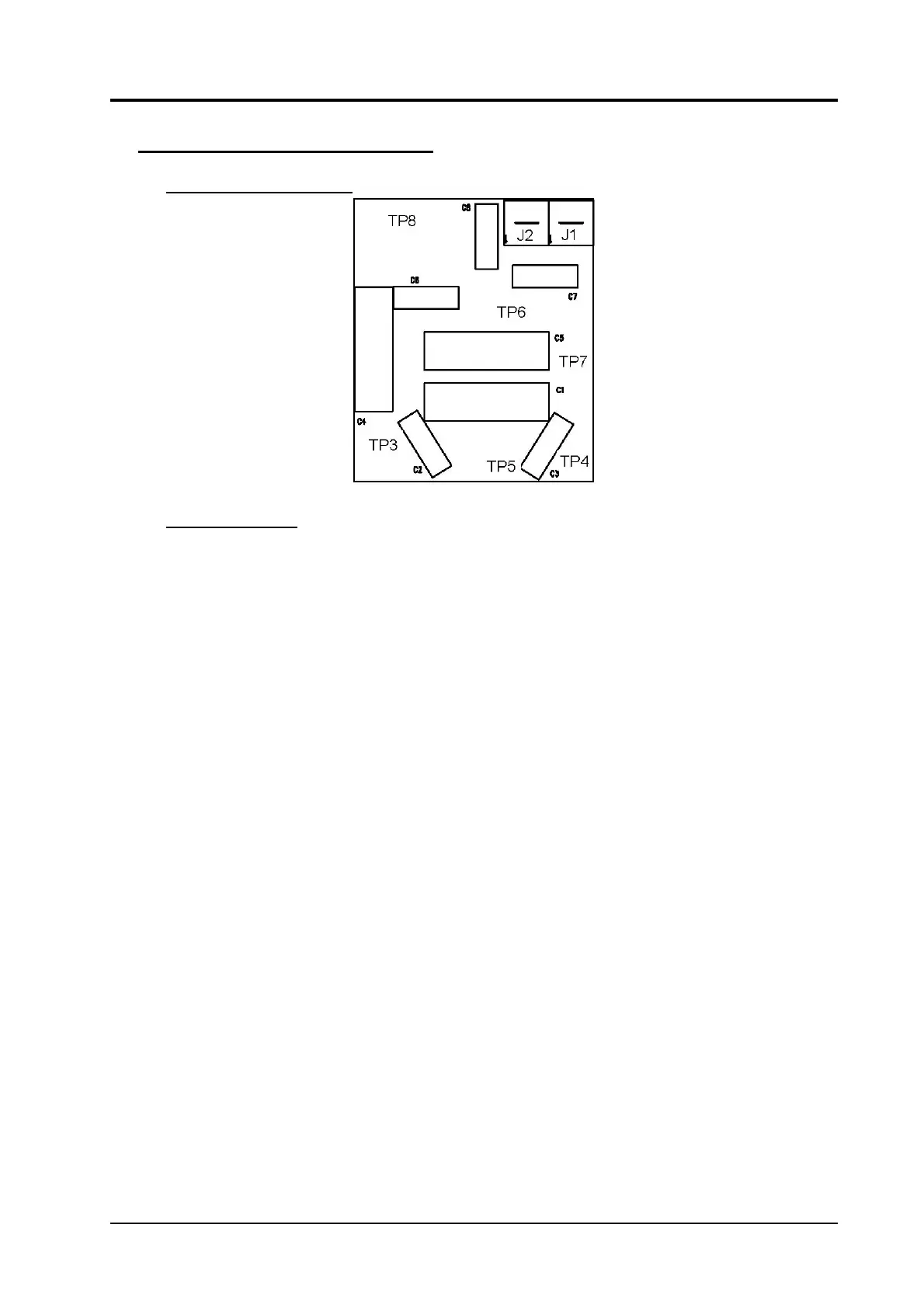

5.3.1 - Topographical drawing.
5.3.2 - Connector table.
Connector Terminals Function
J1 A - B start signal input.
J2 A - B start signal output.
- TP3 output voltage input (workpiece potential).
- TP4 - TP7 rectifier (32) output voltage input.
- TP5 - TP6 connection to earth.
- TP8 torch nozzle voltage input.
3.302.173 28/07/04
