Celestron ASTROMASTER EQ User Manual

6 I ENGLISH
1. Objective Lens
2. Telescope Tube
3. DEC Setting Circle
4. RA Setting Circle
5. RA Slow Motion Knob
6. Counterweight
7. Counterweight Bar
8. Tripod
9. Accessory Tray
10. Dovetail Mounting bracket
11. StarPointer Finderscope
12. Eyepiece
13. Erect Image Diagonal
14. Focus Knob
15. DEC Slow Motion Knob
16. Equatorial Mount
17. Latitude Adjustment Screw
We recommend saving your telescope box so it can be used to store the telescope when it is not in use. Unpack the box
carefully as some parts are small. Use the parts list below to verify that all parts and accessories are present.
PARTS LIST

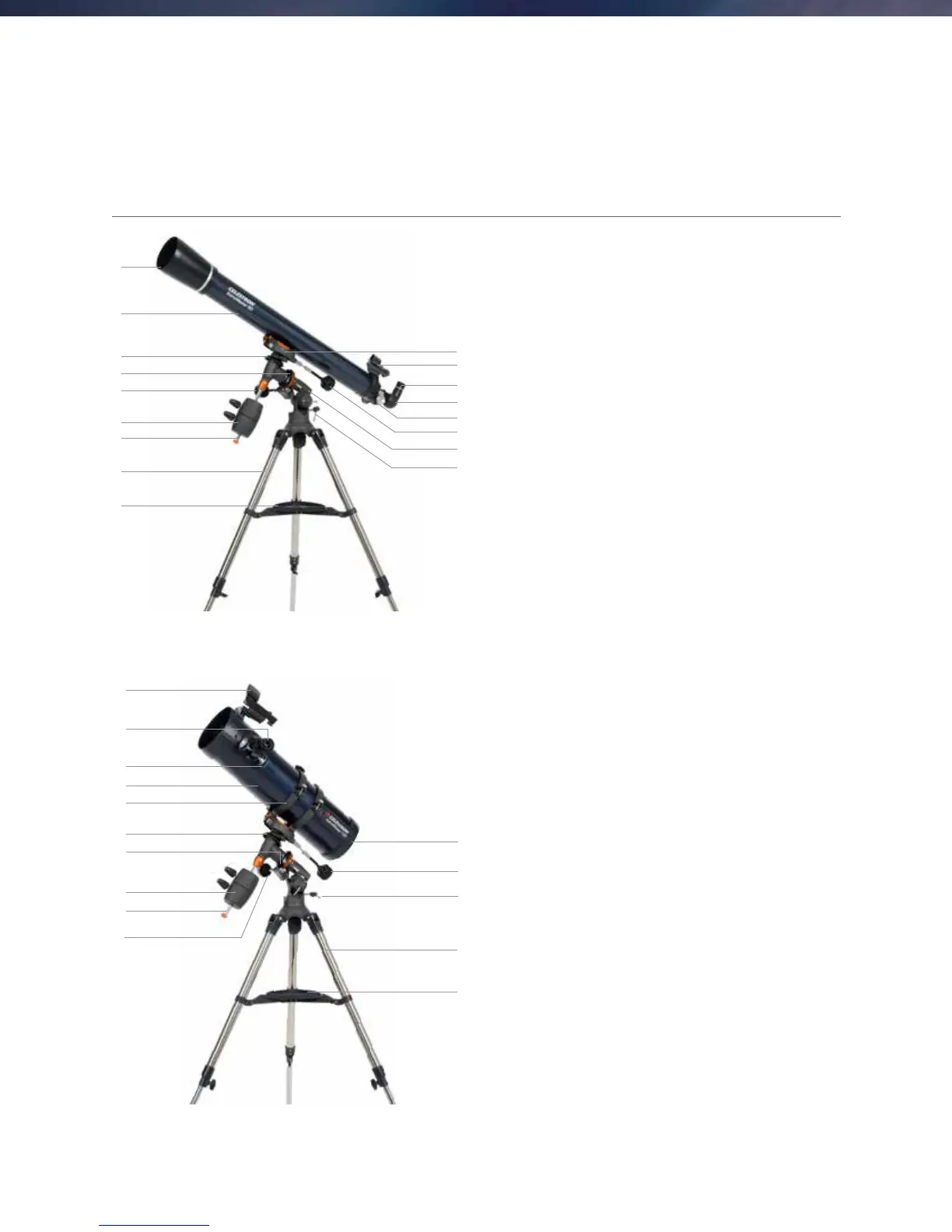

WHAT’S IN THE BOX
(130 mm Newtonian shown)
(90 mm refractor shown)
12
11
1
13
7
9
5
14
10
15
16
17
8
6
4
3
2
1. StarPointer Finderscope
2. Eyepiece
3. Focus Knob
4. Telescope Tube
5. Tube Rings
6. DEC Setting Circle
7. RA Setting Circle
8. Counterweights
9. Counterweight Bar
10. RA Slow Motion Knob
11. Primary Mirror
12. DEC Slow Motion Knob
13. Latitude Adjustment Screw
14. Tripod
15. Accessory Tray
4
3
8
11
6
1
2
5
7
10
14
15
12
13
9

Celestron ASTROMASTER EQ Specifications

General

Optical Design	Refractor
Aperture	70 mm
Focal Length	900 mm
Focal Ratio	f/13
Mount Type	Equatorial
Tripod	Aluminum
Eyepiece 1	20 mm
Magnification 1	45x
Eyepiece 2	10 mm
Magnification 2	90x
Finderscope	StarPointer
