ENGLISH I 5
1. Before attaching the adapter, look through your optic (telescope,
spotting scope, binocular, etc.) and make sure that the view is in
sharp focus.
2. Open the eyepiece clamp (B) by loosening the eyepiece clamp
knob (A) at the top of the eyepiece clamp.
3. Place the eyepiece clamp over the eyepiece of your optic. Tighten
the eyepiece clamp knob to secure the eyepiece clamp tightly
against the eyepiece.
NOTE: Make sure to mount the clamp on a section of the eyepiece
barrel that does not rotate freely, such as an eye relief adjuster.
4. Loosen the holder clamp knob (D) until the holder clamp (C) is
open wide enough to accommodate the width of your phone. Once
the phone is in place, tighten the holder clamp knob until the
phone is secured.
NOTE: This adapter can be used with most phone cases, but the
case surface MUST be flat so it will fit in the holder
correctly. Any grips, stands, rings, or raised surfaces
on the case will impede the placement of the phone. All
folio-style phone cases must be removed.
5. Launch the camera app on your phone. Loosen the holder alignment
knob (E) and adjust the positioning of your phone camera so that it
lines up with the eyepiece of your optic.
6. Once the camera is over the eyepiece and your camera is capturing
the view through the eyepiece, carefully tighten the holder alignment
knob to secure your phone in position.
7. If needed, adjust the focus on your optic again for the sharpest
possible view.
8. You are now ready to take images and videos using your
smartphone camera!

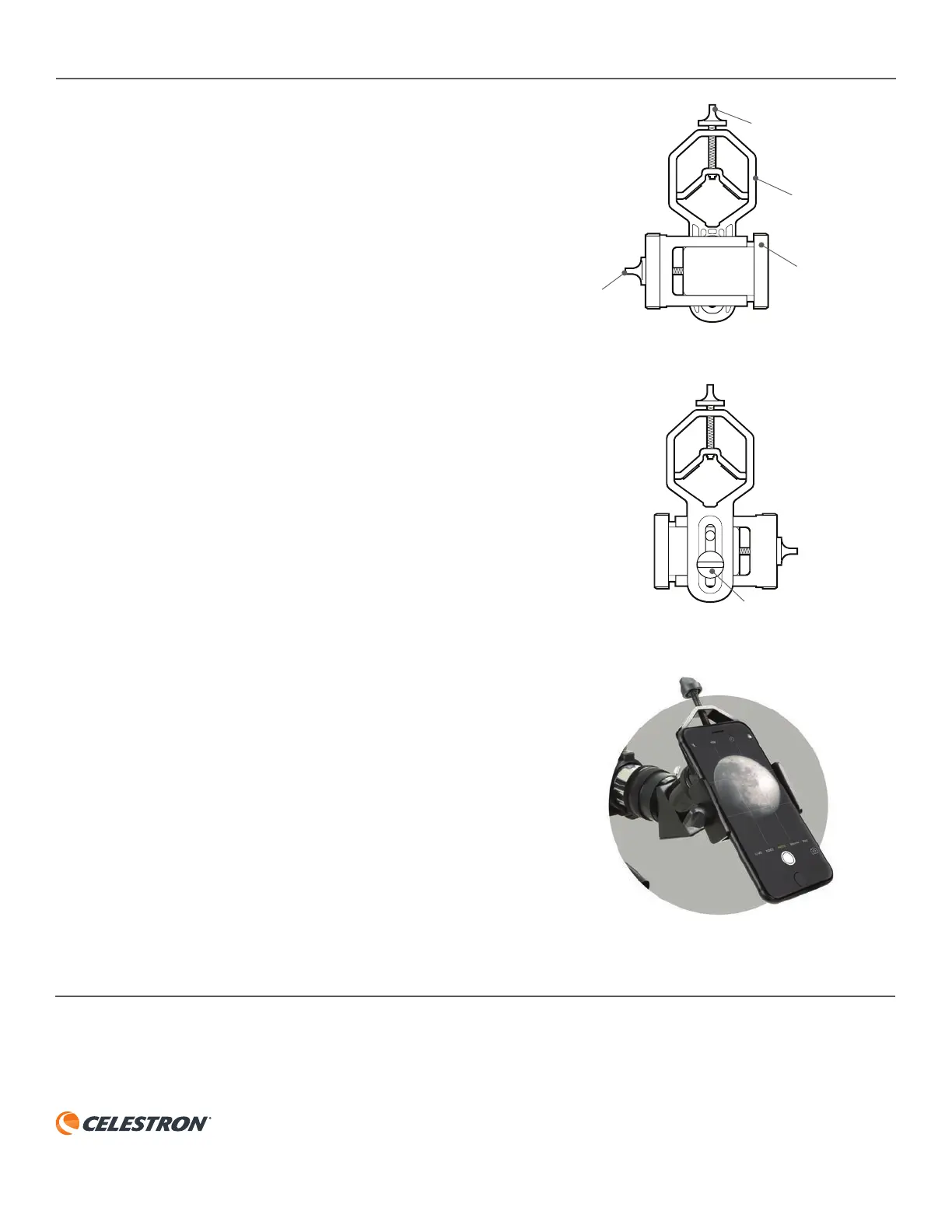

(B)
(C)
(D)
(A)
Front
USING YOUR SMARTPHONE ADAPTER
(E)
Back
Ultima Spotting Scopes have the Celestron Limited Lifetime Warranty for the U.S.A. and Canadian customers. For complete
details of eligibility and for warranty information on customers in other countries, visit the Celestron website.
This product is designed and intended for use by those 14 years of age and older. Product design and specifications are subject to change without prior notification.
WARRANTY
©2019 Celestron • All rights reserved • 10-19
