5
1x Allen key
1x Operating instructions10x 5x40 mm screw +
dowel
1x Power cable
1x Socket screwdriver
1x Radio remote control
(RF)
1x Adjustment tool (4 mm)
1x Radio USB trigger 2x Adjustable mounting
bracket
1x Cleaning brush for pro-
jection screen surface

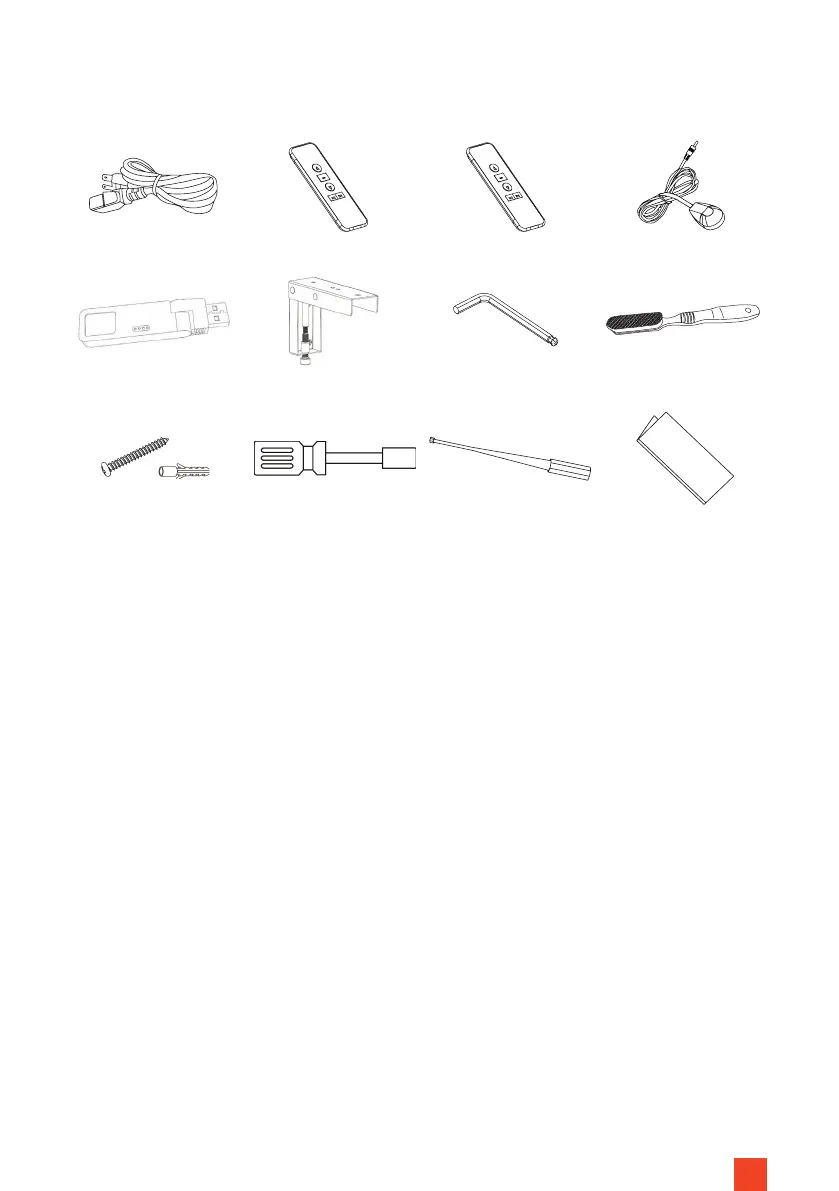

SCOPE OF DELIVERY
TECHNICAL DATA
Voltage: 230 V, 50 Hz
Consumption: 140 W (MAX)
0,4 W (Standby)
Control: Infrared remote control 3V / 2 x CR2032
Radio remote control 3V / 2 x CR2032 / frequency: 868 MHz
/ Transmission power: max. 10 mW /
15 m range
Radio trigger 2,0 - 3,3 V / Frequency: 868 MHz /
Transmission power: max. 20 mW /
Current connection: 20 - 30 mA
Temperature: During operation 16°C to 30°C
During storage 10°C to 30°C (Short-term under- or
overheating is possible, with subse-
quent acclimatisation of 24 hours
before renewed use.)
1x Infrared remote control
(IR)
1x Infrared Eye
