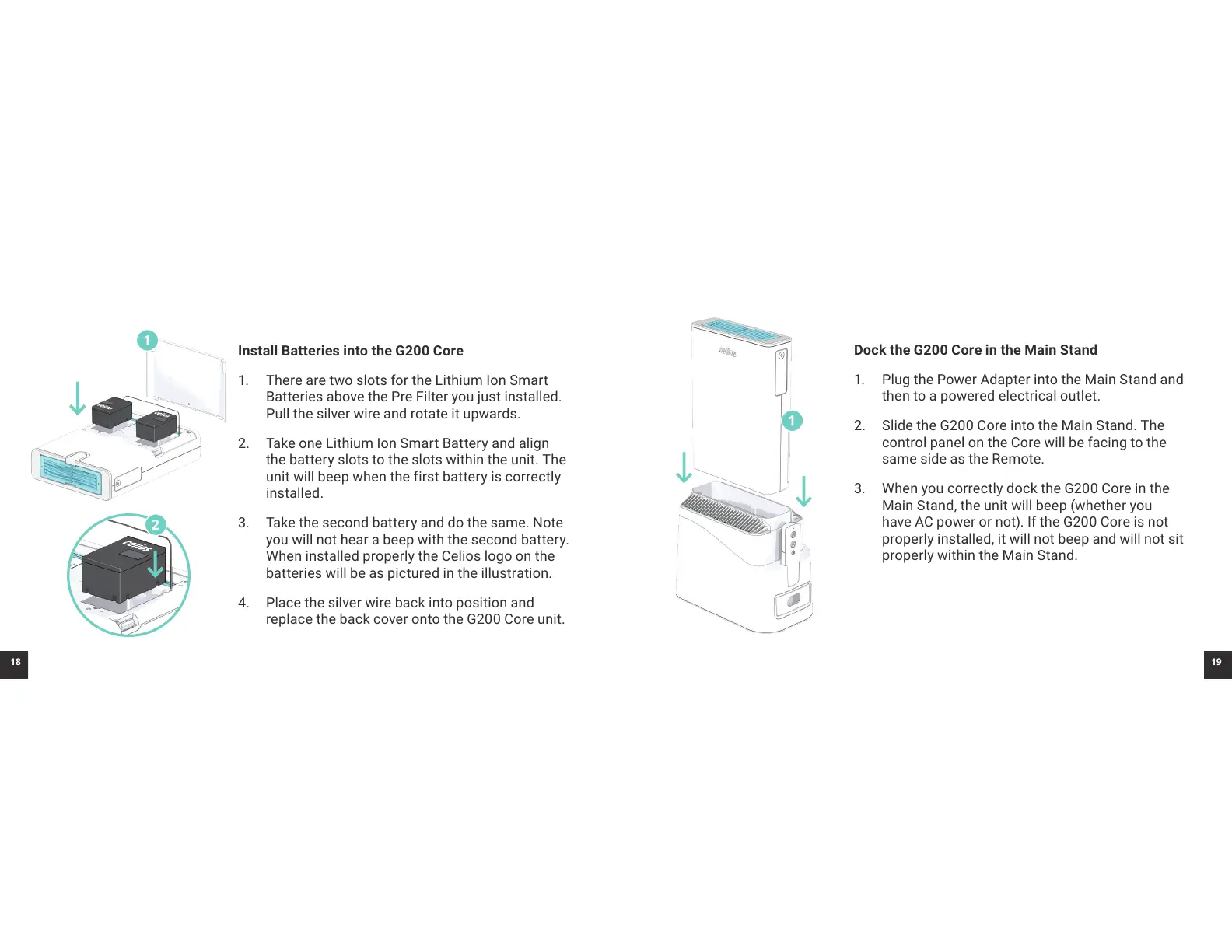

Install Batteries into the G200 Core
1. There are two slots for the Lithium Ion Smart
Batteries above the Pre Filter you just installed.
Pull the silver wire and rotate it upwards.
2. Take one Lithium Ion Smart Battery and align
the battery slots to the slots within the unit. The
unit will beep when the first battery is correctly
installed.
3. Take the second battery and do the same. Note
you will not hear a beep with the second battery.
When installed properly the Celios logo on the
batteries will be as pictured in the illustration.
4. Place the silver wire back into position and
replace the back cover onto the G200 Core unit.
2
Dock the G200 Core in the Main Stand
1. Plug the Power Adapter into the Main Stand and
then to a powered electrical outlet.
2. Slide the G200 Core into the Main Stand. The
control panel on the Core will be facing to the
same side as the Remote.
3. When you correctly dock the G200 Core in the
Main Stand, the unit will beep (whether you
have AC power or not). If the G200 Core is not
properly installed, it will not beep and will not sit
properly within the Main Stand.
