23/23
55908014-06
Electrics box assembly

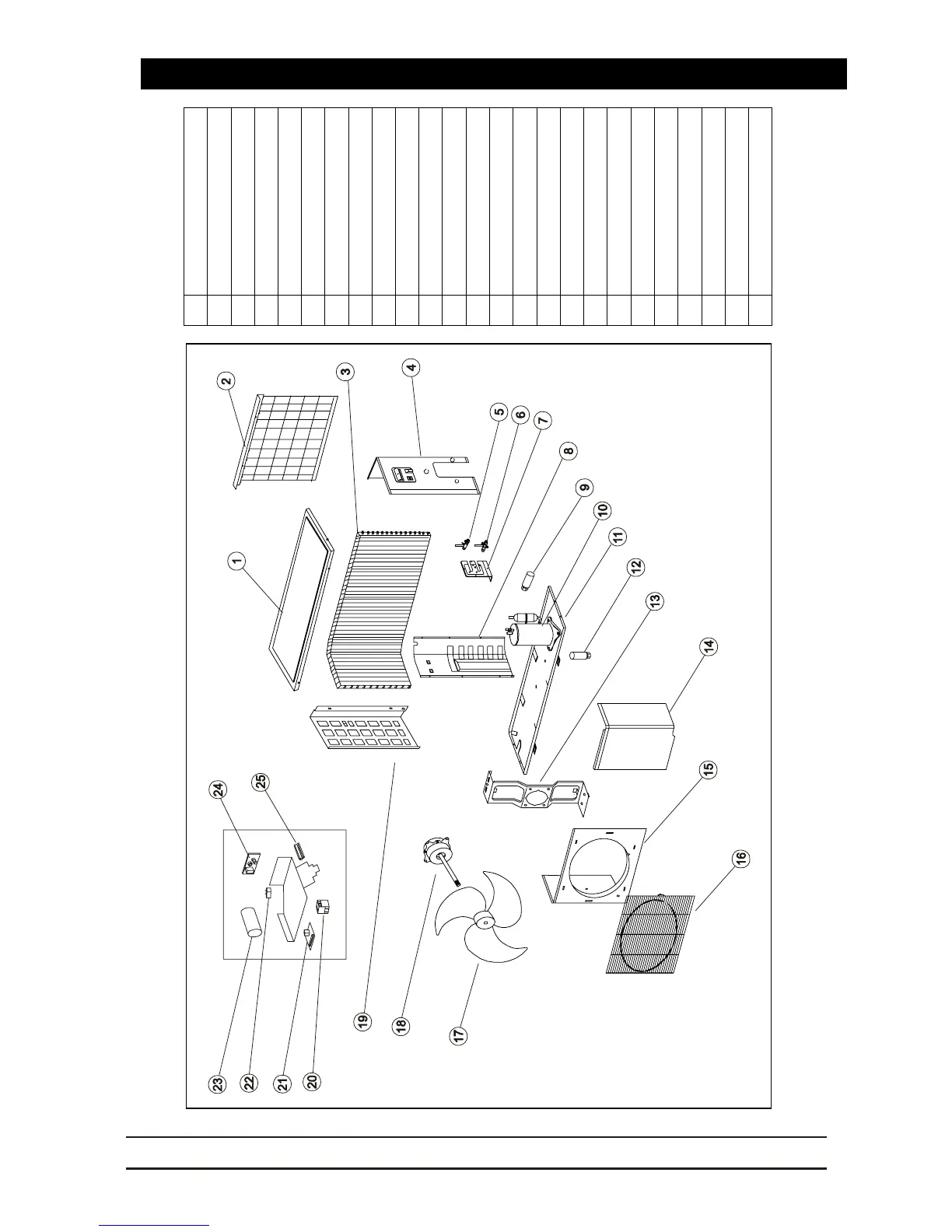

CKR 80 OUTDOOR UNIT COMPONENT IDENTIFICATION
TEV LTD, ARMYTAGE ROAD, BRIGHOUSE, WEST YORKSHIRE, HD6 1QF. + 44 (0) 1484 405600 +44 (0) 1484 405620
sales@marstair.com www.marstair.com
TEL: FAX:
EMAIL: WEB:
LID
REAR GRILL
HEAT EXCHANGER COIL
REAR ACCESS PANEL
SERVICE VALVE 5/8”
SERVICE VALVE 1/2"
VALVE PANEL
BULK HEAD PANEL
HP SWITCH
COMPRESSOR
BASE
LP SWITCH
MOTOR SUPPORT BRACKET
FRONT PANEL
FASCIA PANEL
FAN GUARD
FAN
MOTOR
SIDE PANEL
CONTACTOR
3 MINUTE TIMER
FAN CAPACITOR
COMPRESSOR CAPACITOR
FAN SPEED CONTROLLER (FSC)
TERMINAL BLOCK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
