INSTALLATION
Wall drilling and bracket xing

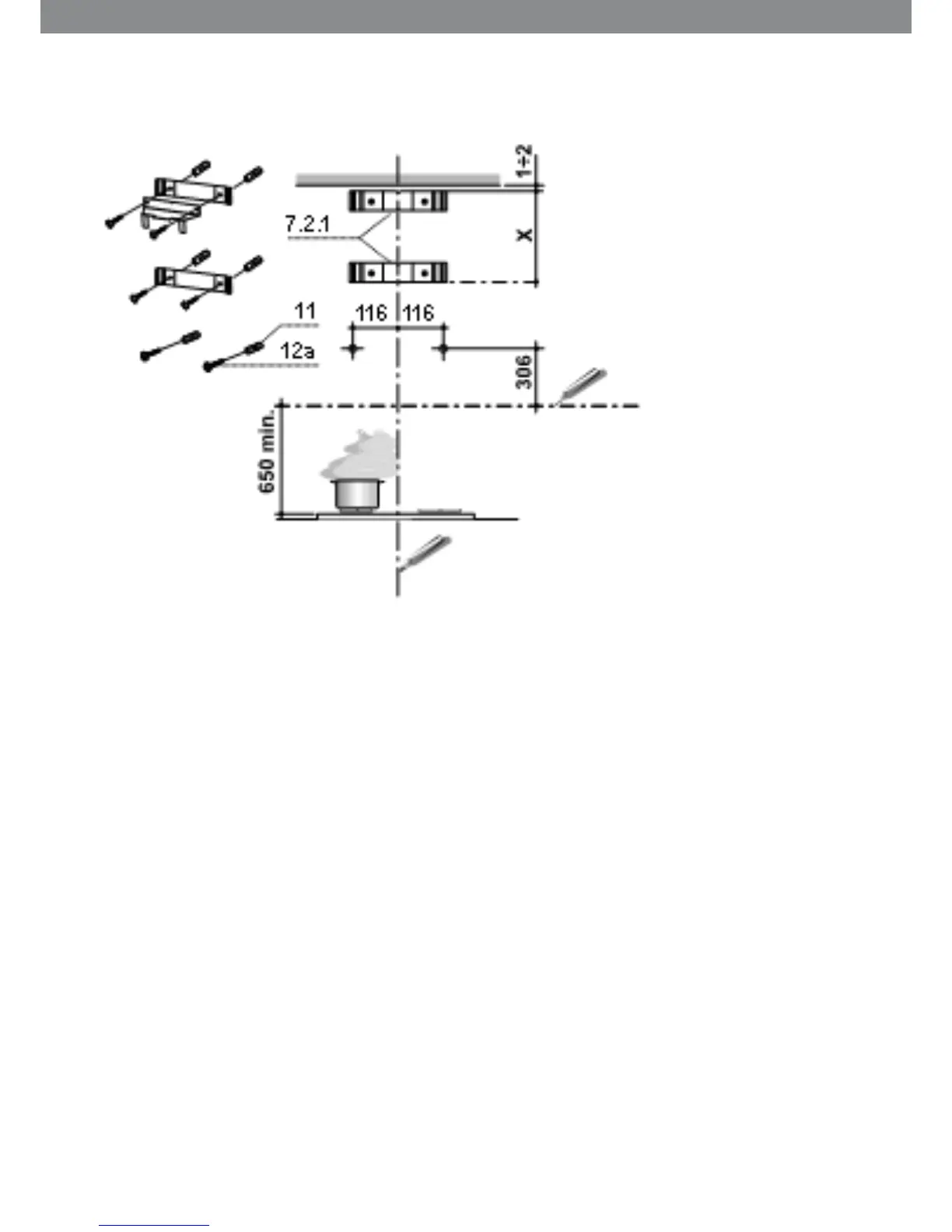

Wall marking:
• Draw a vertical line on the supporting wall up to the ceiling,
or as high as practical, at the centre of the area in which
the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm
from the ceiling or upper limit align-ing the centre (notch)
with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below
the rst bracket (X = height of the upper chimney section
supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the
vertical reference line and 306 mm above the horizontal
reference line.
• Repeat this operation on the other side.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the lower bracket 7.2.1 using the 12a screws
(4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection
support 7.3 together using the 2 screws 12a (4,2 x 44,4)
supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood
body xing holes, leaving a gap of 5-6 mm between the wall
and the head of the screw.
