Cello Apollon - Mounting the Hood Body

5

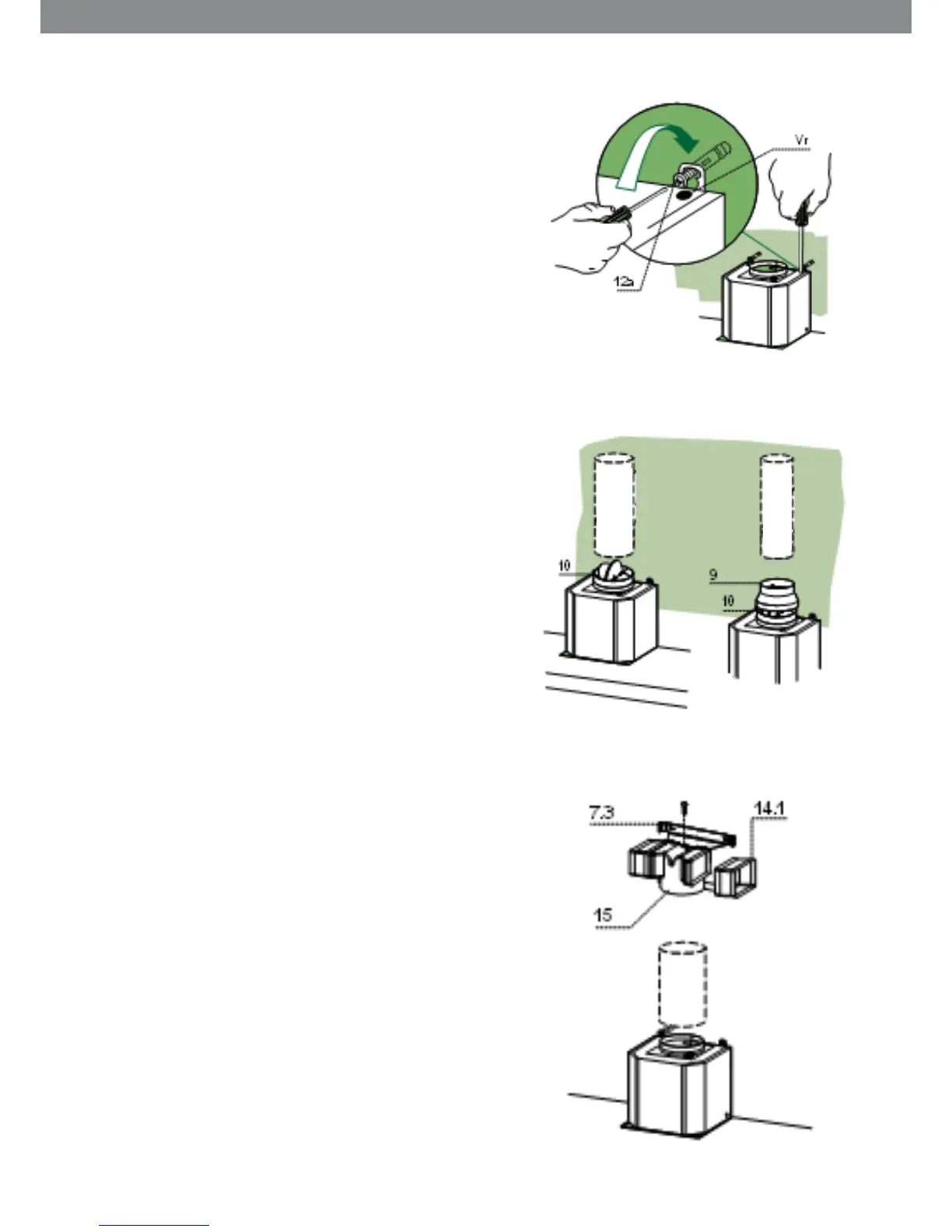

Mounting the hood body
• Before attaching the hood body, tighten the two screws Vr
located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
• Fully tighten the support screws 12a.
• Adjust the screws Vr to level the hood body.
Connections
DUCTED AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a exible or rigid pipe ø 160 or 125 mm,the
choice of which is left to the installer.
To install a ø 160 pipe
• To install the dumper 10
• Fix the pipe in position using sufcient pipe clamps
(not supplied).
To install a ø 125 pipe
• To install a ø 125 mm air exhaust connection,
insert the reducer ange 9 on the dumper 10.
• Fix the pipe in position using sufcient pipe clamps
(not supplied).
• Active coal lters are not used in ducted exhaust system.
RECIRCULATION AIR OUTLET
Insert the connection extension pieces laterally
14.1 in connection 15.
• Insert the Connector 15 into the Support bracket 7.3 and x it
with a screw.
• Make sure that the outlet of the extension pieces 14.1 is hori-
zontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet
using either a exible or rigid pipe ø 160 mm, the choice of
which is left to the installer.
• Ensure that the activated charcoal lters have been inserted.
ø 160
