ELECTRICAL CONNECTION
Connect the plug to the socket. The plug must be
accessible. If used xed connection, switch must be used.
Switch must be accessible.
• Remove the grease lters (see paragraph Maintenance)
being sure that the connector of the feeding cable is correctly
inserted in the socket placed on the side of the fan.

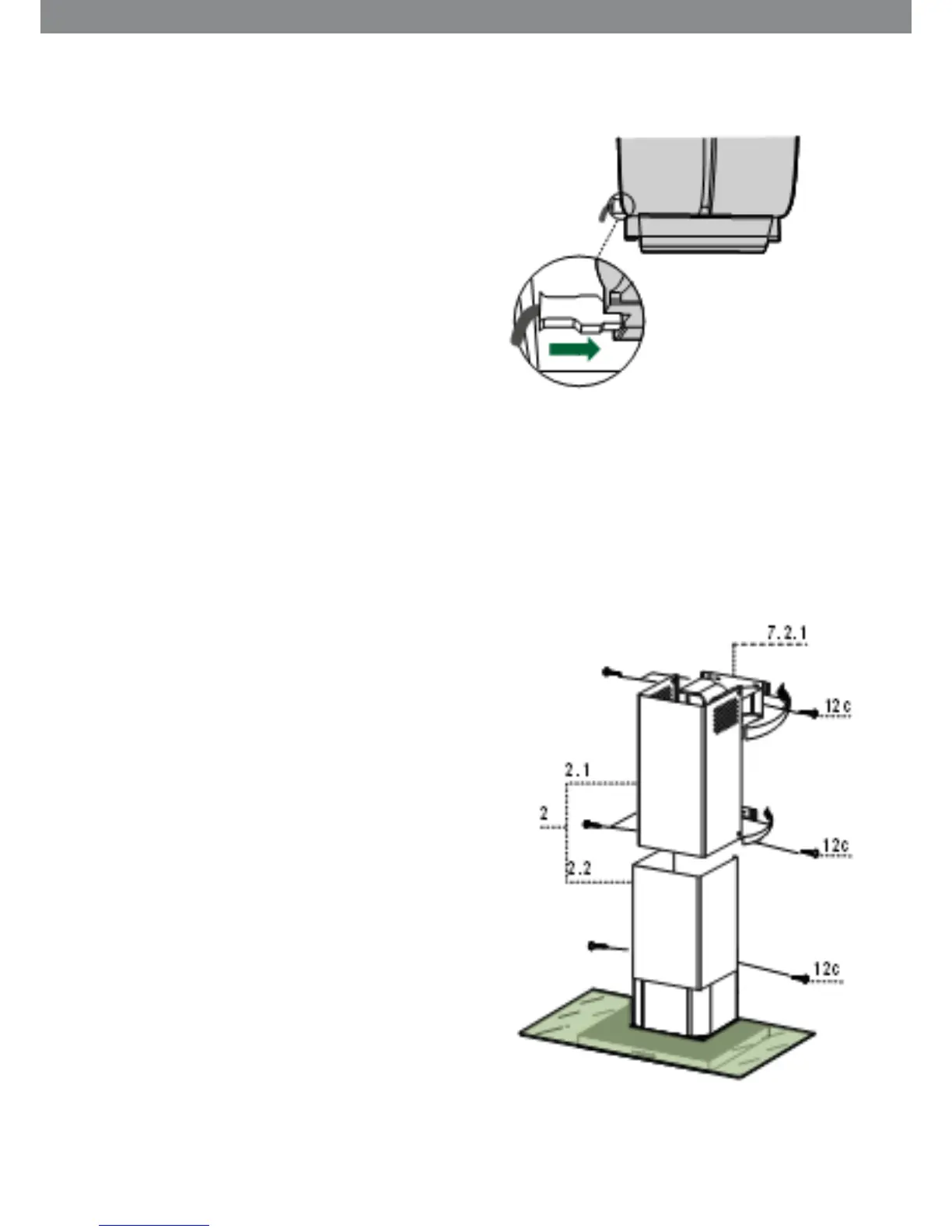

Flue assembly
Upper exhaust ue
• Slightly widen the two sides of the upper ue and hook them
behind the brackets 7.2.1, making sure that they are well
seated.
• Secure the sides to the brackets by using the 4 screws 12c
(2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned
with the chimney outlets.
Lower exhaust ue
• Slightly widen the two sides of the ue and hook them
between the upper ue and the wall, making sure that
they are well seated.
• Fix the lower part laterally to the hood body by using the
2 screws 12c (2,9 x 9,5) supplied.
