Figure 12.

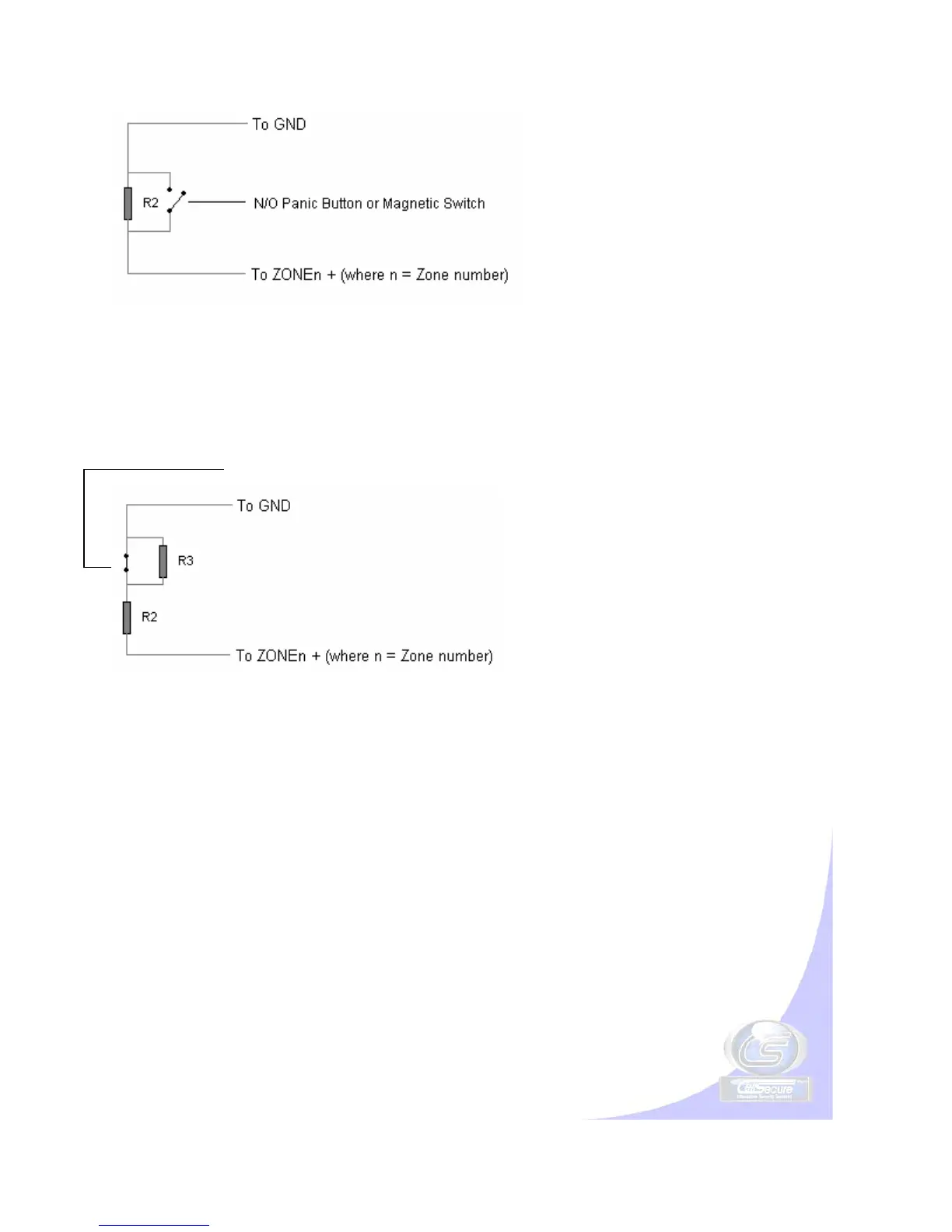

Connecting a Normally Open panic button or magnetic switch to the E12 for 24
hour monitoring (Closing the switch will result in a notification message only, no
alarm condition). Zone n must be active in Away mode. Also see figure 9 for
wiring on the panel’s side.
N/C Magnetic Switch
Figure 13.
Connecting a Magnetic Switch to the E12 for normally closed operation (Opening
the switch will cause the alarm to trigger, only if the alarm is armed). Also see
figure 9 for wiring on the panel’s side.
