Resistor Values
R1 = 1K8 Ohm
R2 = 470 Ohm
R3 = 7K5 Ohm
Figure 10.

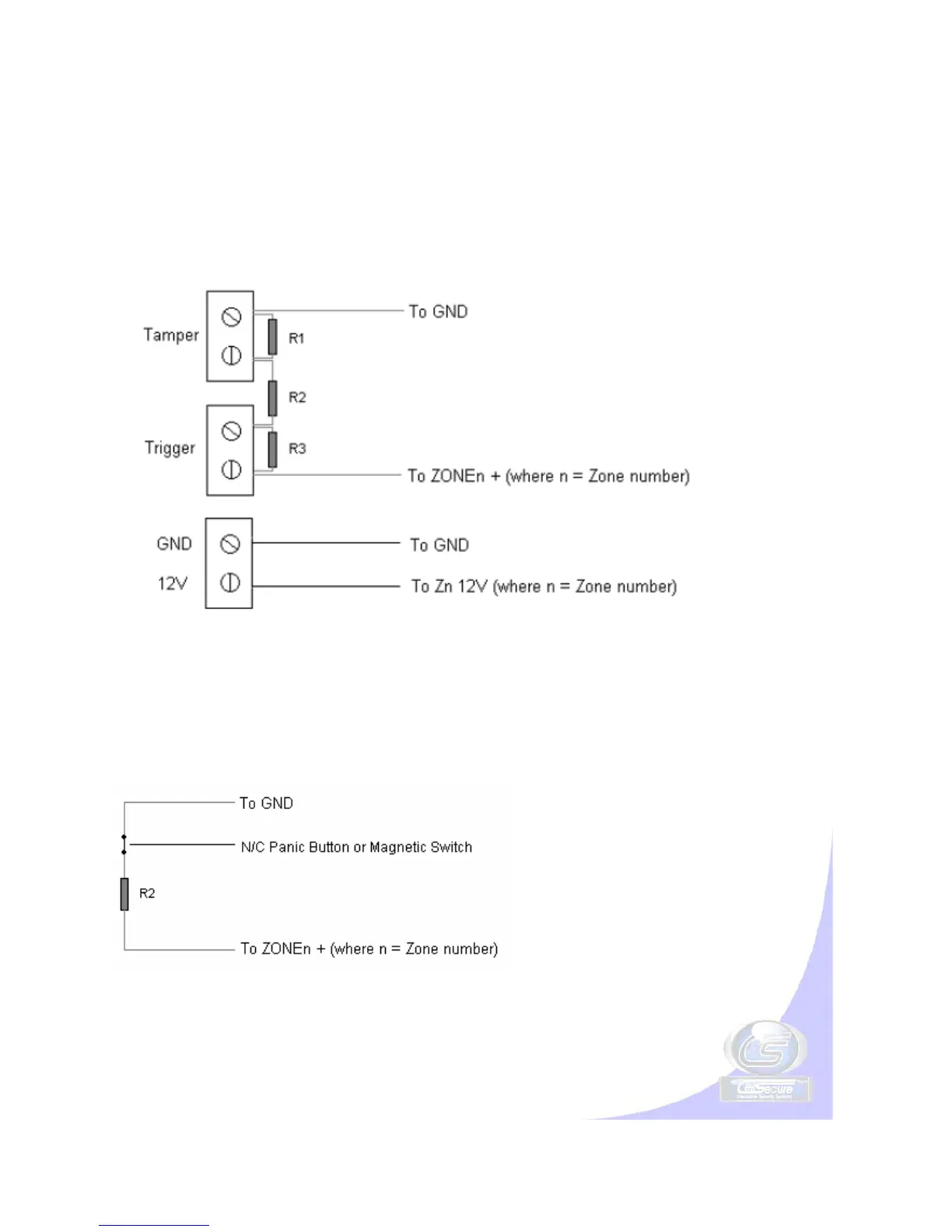

Connecting a passive infrared sensor to the E12. Also see figure 9 for wiring on
the panel’s side.
A.1
Figure 11.
Connecting a Normally Closed panic button or magnetic switch to the E12 for 24
hour monitoring (Opening the switch will result in a notification message only, no
alarm condition). Zone n must be active in Away mode. Also see figure 9 for
wiring on the panel’s side.
